RT-9000C Hardware Supplement
Document No. 8121000602
Revision A (19 Mar 2007)
8-3
RT-9000C
11.25
5.625
2.822
5.97
19.50
When rack mounted
Allow 5 inches, minimum,
between RT-9000C fan
enclosures and the
equipment rack rear panel
1.625
Notes
1. All Dimensions in inches and are nominal.
2. Do not scale drawing.
Equipment Slide Mounting Holes
Tapped for # 10-32 threads
(3 places)
3.356
17.875

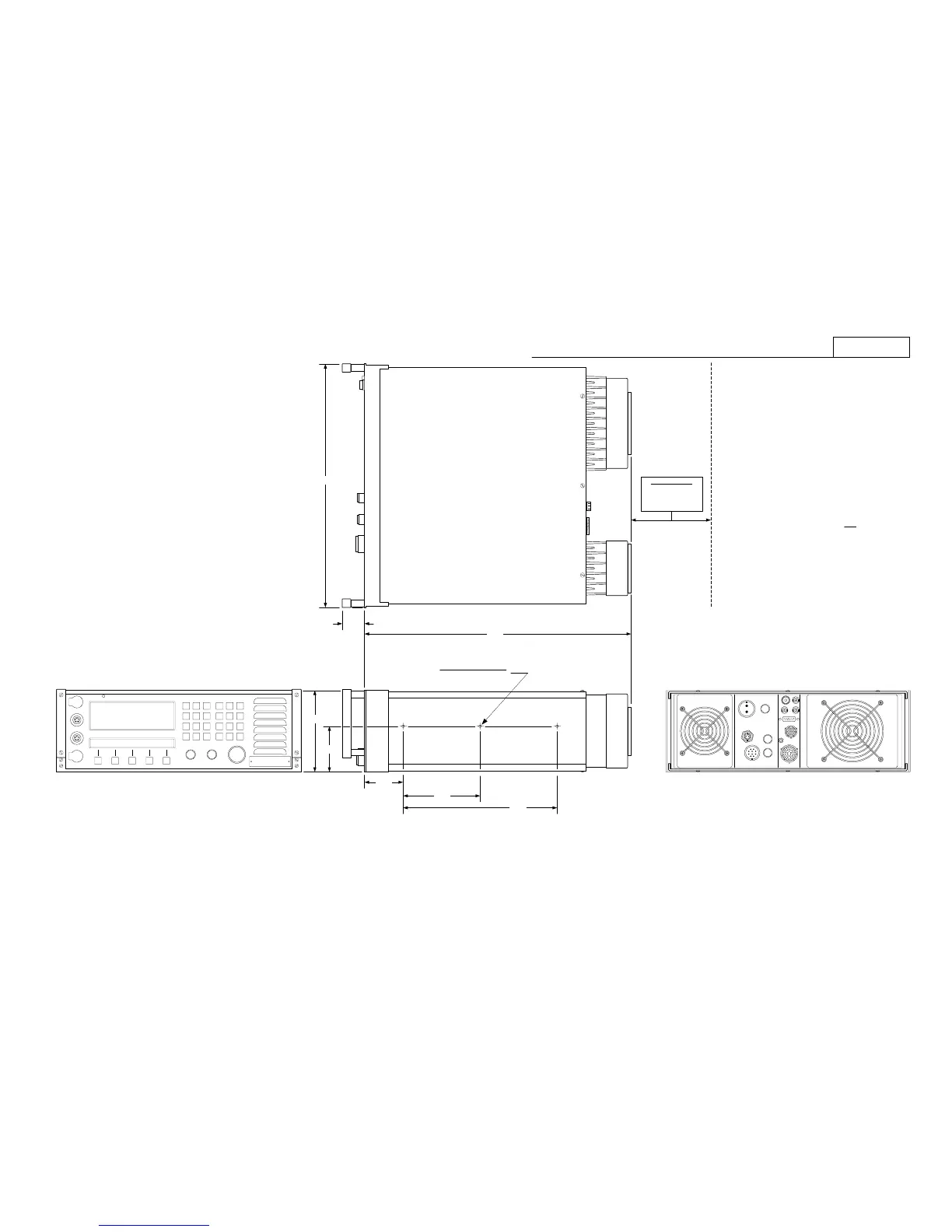

Figure 8.1 RT-9000C Outline Dimensions
