Owner’s Manual,
Model BC1712G Portable Gas Grill
BC1712G owner’s manual
6
3

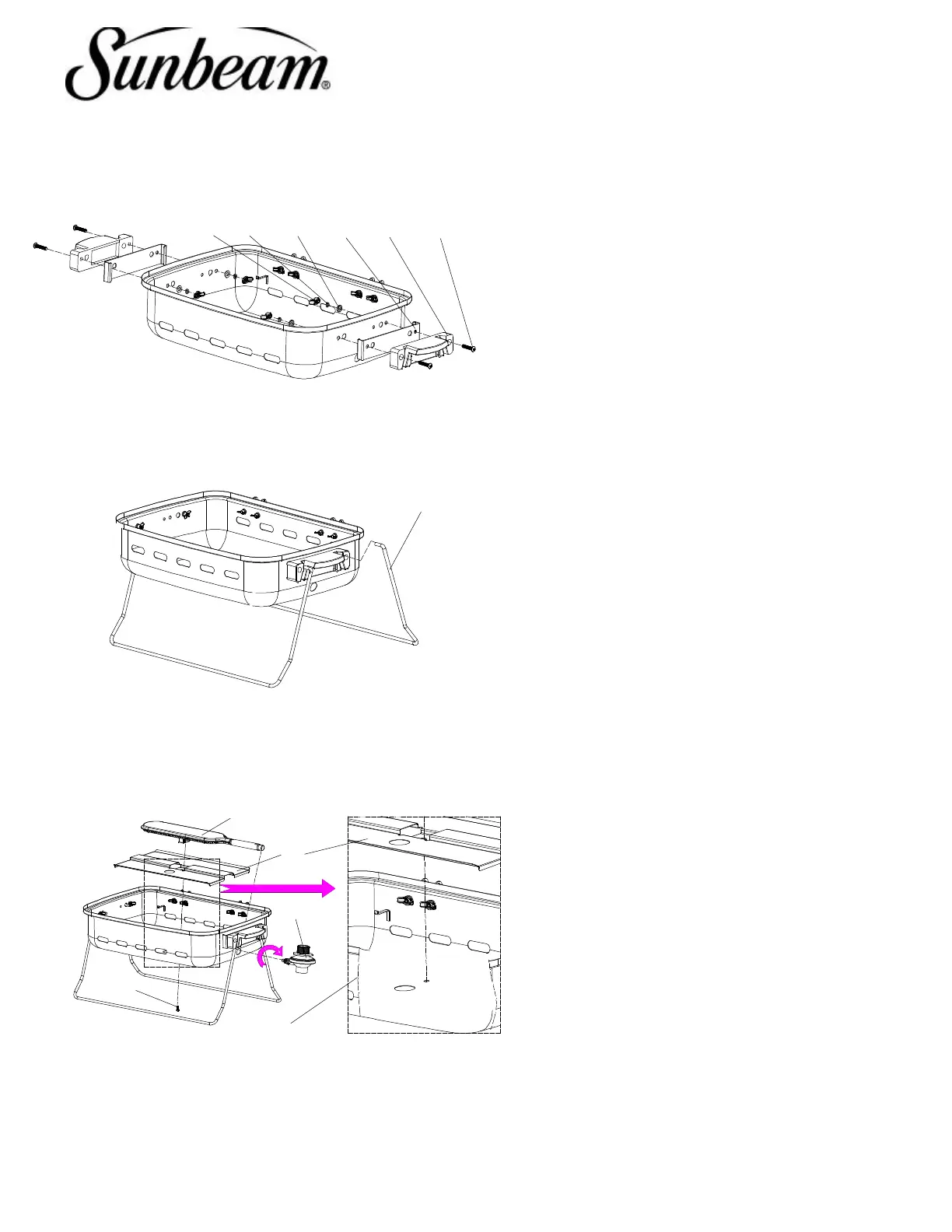

Step 4
Position handle support (14)
between handle and grill, and
attach side handles (7) to grill
bottom (2) as shown, using
medium
bolts (B), small washers (K), small
lock washers (I) and small wing
nuts (F).
Step 5
Attach legs (3) to grill bottom as
shown, by inserting into holes in
side handles.
Step 6
Position heat shield (13) between burner
and grill bottom, and secure burner (6),
and heat shield (13) to grill bottom using
burner bolt (D). Assure that the lighting
hole in the heat shield lines up with the
hole in the grill bottom. Finger tighten gas
regulator
valve (9) to threaded burner inlet,
as shown.
IMPORTANT: The gas regulator valve is
properly positioned when the hex portion
of regulator valve is flat against burner
inlet.
Note: when attached, the regulator valve
will rotate.
F I K
14
7 B
9
6
D
2
13
