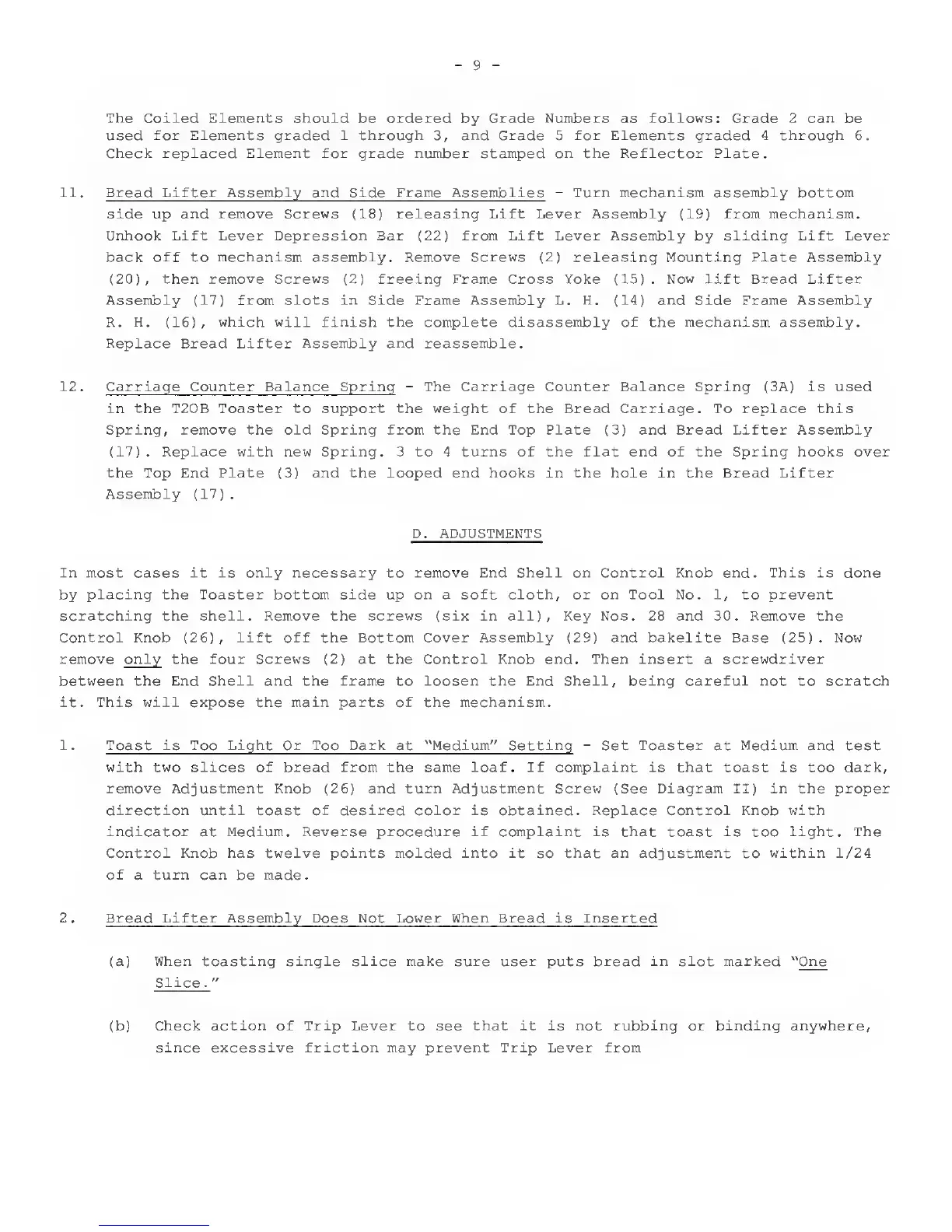

9
-
The Coiled Elements should be ordered by Grade Numbers as follows: Grade 2 can
be
used for Elements graded 1 through
3,
and Grade 5 for Elements graded 4 through 6.
Check replaced Element for grade number stamped on the Reflector Plate.
11. Bread Lifter Assembly and Side Frame Assemblies
-
Turn mechanism assembly bottom
side up and remove Screws
(18)
releasing Lift Lever Assembly
(19)
from mechanism.
Unhook Lift Lever Depression Bar
(22)
from Lift Lever Assembly by sliding Lift Lever
back off to mechanism assembly. Remove Screws
(2)
releasing Mounting Plate Assembly
(20),
then remove Screws
(2)
freeing Frame Cross Yoke
(15).
Now lift Bread Lifter
Assembly
(17)
from slots in Side Frame Assembly L. H.
(14)
and Side Frame Assembly
R. H.
(16),
which will finish the complete disassembly of the mechanism assembly.
Replace Bread Lifter Assembly and reassemble.
12. Carriage Counter Balance Spring
-
The Carriage Counter Balance Spring (3A) is
used
in the T20B Toaster
to
support the weight of the Bread Carriage. To replace this
Spring, remove the old Spring from the End Top Plate
(3)
and Bread Lifter Assembly
(17) .
Replace with new Spring. 3
to
4 turns of the flat end of the Spring hooks over
the Top End Plate
(3)
and the looped end hooks in the hole in the Bread Lifter
Assembly
(
17
)
.
D. ADJUSTMENTS
In most
cases
it is only necessary
to
remove End Shell on Control Knob end. This is done
by
placing the Toaster bottom side
up
on
a
soft cloth, or on Tool No.
1, to
prevent
scratching the shell. Remove the screws (six in all), Key Nos. 28 and
30.
Remove the
Control Knob
(26),
lift off the Bottom Cover Assembly
(29)
and bakelite Base
(25).
Now
remove only the four Screws
(2) at
the Control Knob end. Then insert
a
screwdriver
between the End Shell and the frame
to
loosen the
End
Shell, being careful not
to
scratch
it. This will expose
the main
parts of the mechanism.
1.
Toast is Too Light Or Too Dark
at
"Medium" Setting
-
Set
Toaster
at Medium
and
test
with two
slices
of bread from
the same
loaf. If complaint is that
toast
is
too
dark,
remove Adjustment Knob
(26)
and turn Adjustment Screw
(See
Diagram II) in
the proper
direction until toast
of
desired color is obtained.
Replace Control Knob with
indicator
at Medium.
Reverse
procedure
if complaint
is
that
toast
is
too
light. The
Control Knob has twelve
points molded into it so
that
an adjustment to
within
1/24
of
a
turn can
be
made.
2 . Bread Lifter Assembly
Does
Not
Lower When
Bread is Inserted
(a) When toasting single slice make sure user puts bread in slot marked
"
One
Slice."
(b) Check action of Trip Lever to see that it is not rubbing or binding anywhere,
since excessive friction may prevent Trip Lever from
