Sunbuck AS60BU - Installation and Connections; Speaker Connection Methods; Step-by-Step Installation

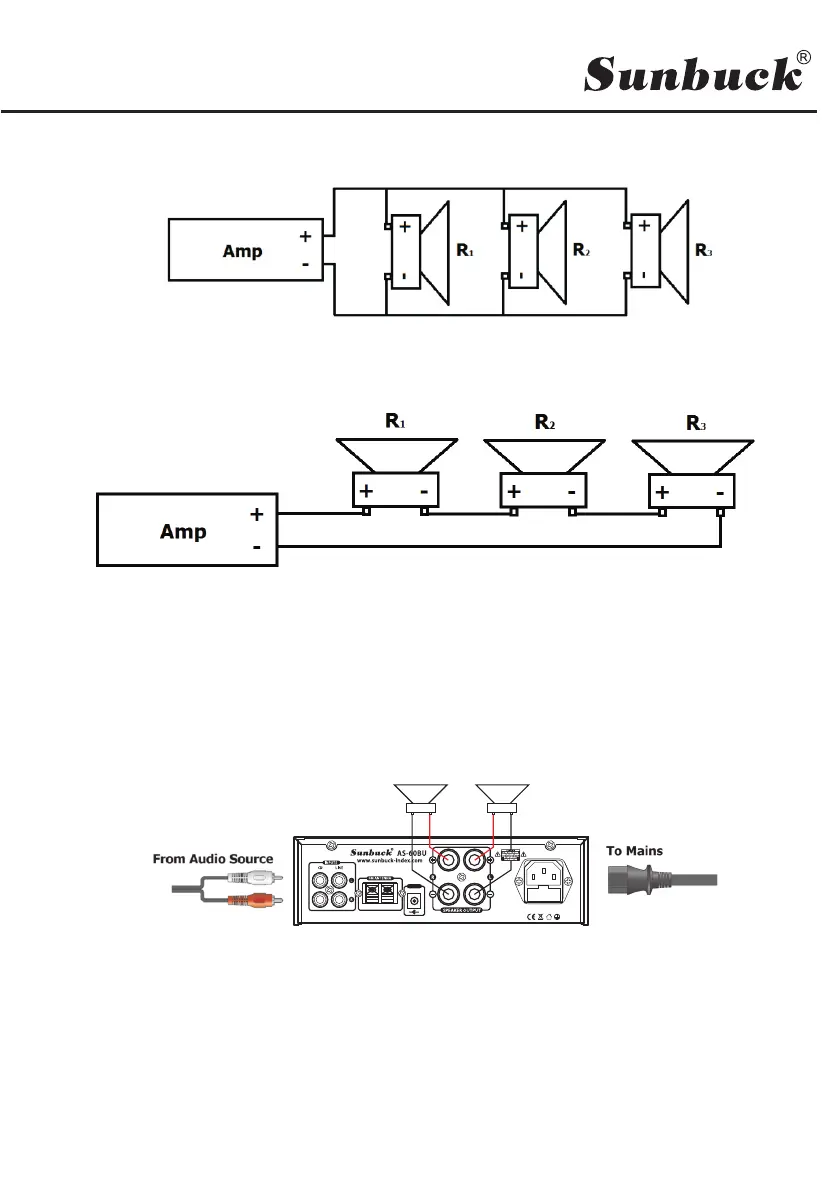

Parallel Connection - 1/R
total
= 1/R
1
+ 1/R
2
+ 1/R
3
......
Series Connection - R
total
= R
1
+ R
2
+ R
3
......
Installation:
Before installation, please ensure power is switched off and mains unpluged from the wall
to avoid damage to equipment and installer.
Wire speakers to the amplifier as shown above, ensure the positive and negative
terminals are wired correctly. Audio input on the back is through 3 pairs of RCA
connectors, ensure left and right signals are correct for stereo output.
Finally insert the IEC plug and connect the unit to the mains.
Before switching on, always ensure the master volume is set at the lowest point to avoid
power surge damage to the unit or speakers. Adjust the volume accordingly to an
appropriatelistening level.
100- 240Vac ,50/6 0Hz
FUSE :T3.1 5A 250V
-
+
DC 12V
4-8 Ω
+- +-
Right speaker
Left speaker
