16

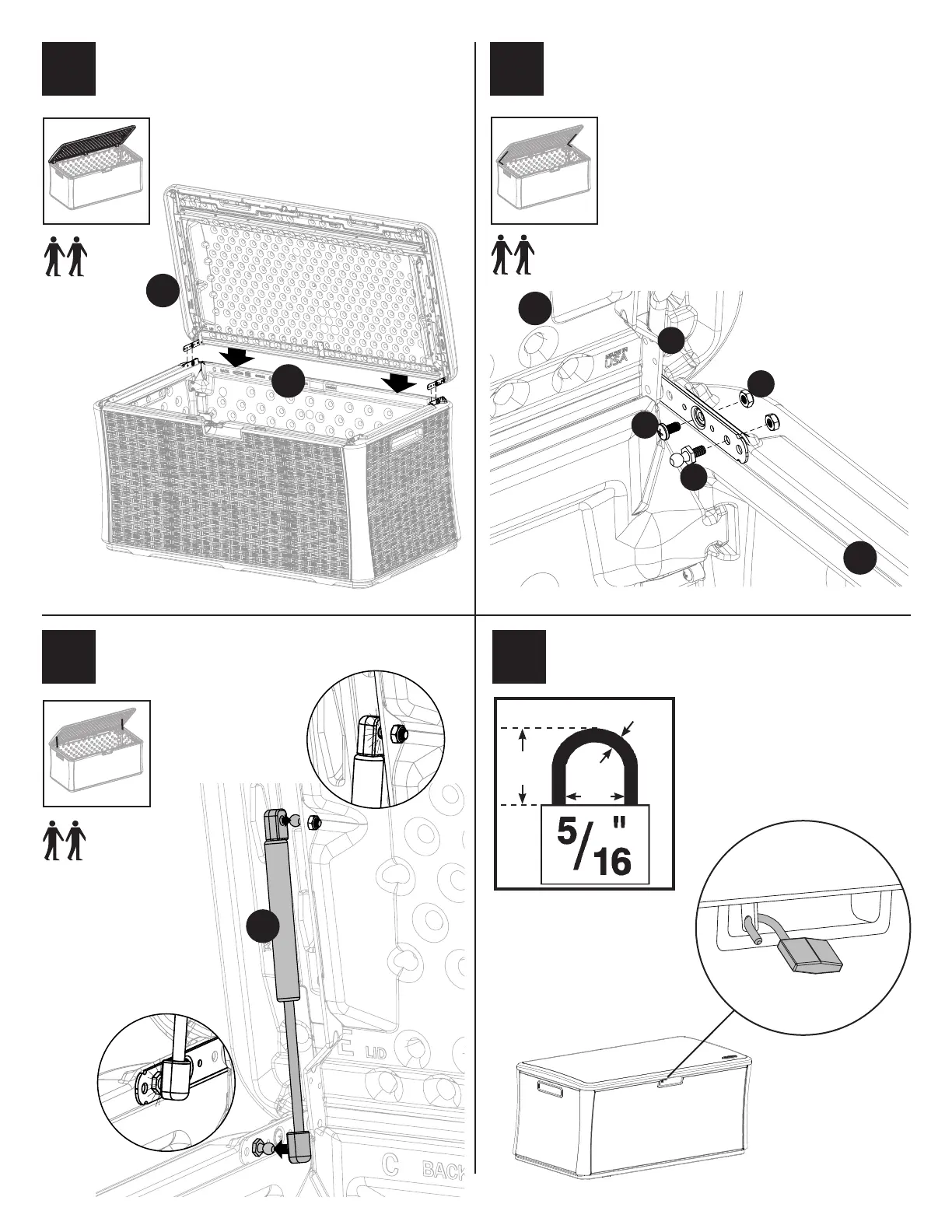

Align lid (E) to Back panel (C).
NOTE: Two person assembly required for steps 19 - 20.
E
C
Place short leg of one hinge brace (G) against side (B).
Attach with one screw (EE) and one nut (FF).
Attach one ball stud (DD) through hinge brace (G) and side (B).
REPEAT ON THE OPPOSITE SIDE
17
E
G
DD
EE
FF
B
Attach gas shock (LL) by pushing until you hear a "snap".
Repeat other side.
18
LL
1
2
To properly lock the unit, a 5/16" padlock is recommended.
NOTE: Lock not included.
19
3/4"
min.
5/16"
max.
1 1/2"
max.
