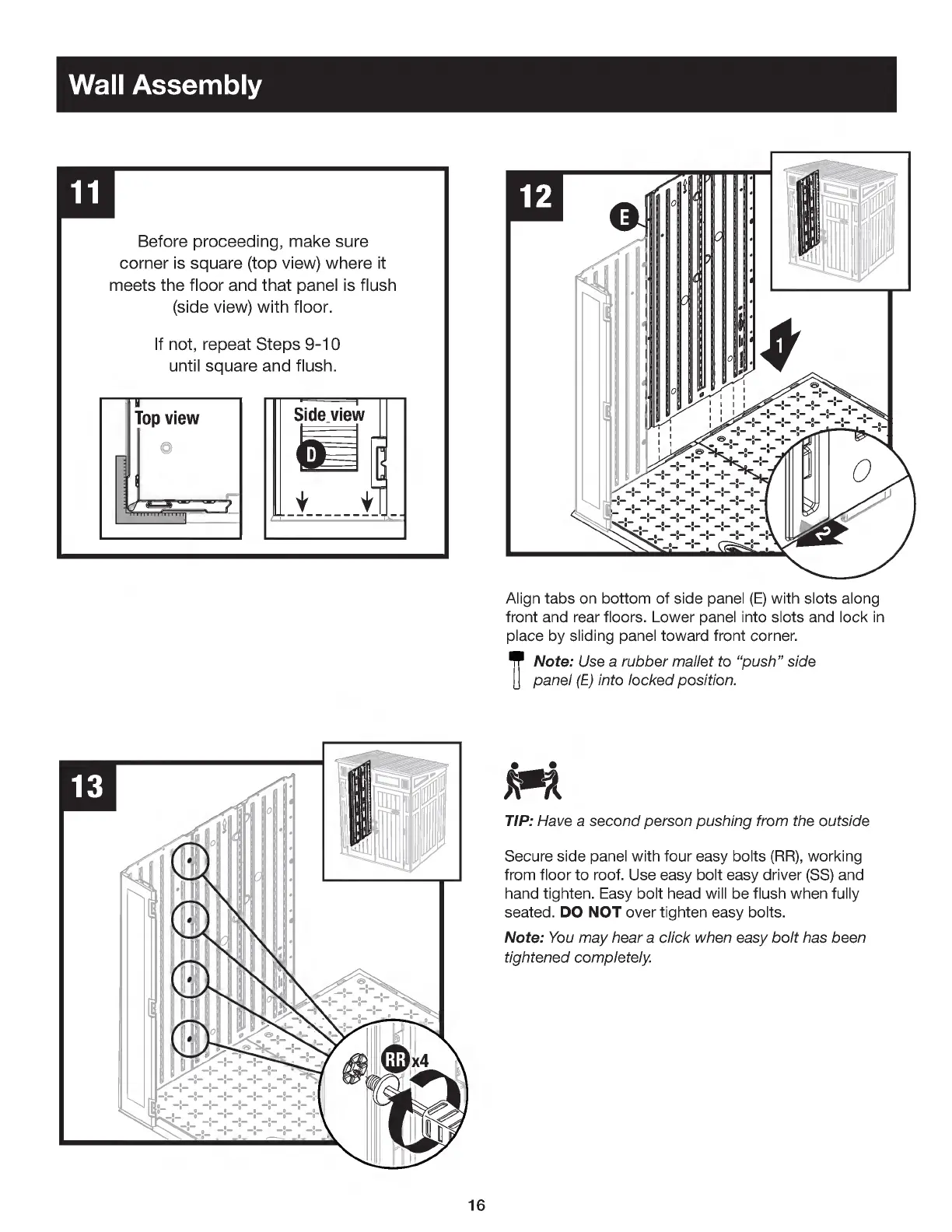

Wall Assembly
Before proceeding, make sure
corner is square ( top view) where it
meets the floor and that panel is flush
(side view) with floor.
—.
Side view
..
12
o
és
—1—
o
-'- • „ _
'
e
o
Align tabs on bottom of side panel ( E) with slots along
front and rear floors. Lower panel into slots and lock in
place by sliding panel toward front corner.
7
Note: Use a rubber mallet to " push" side
panel ( E) into locked position.
TIP: Have a second person pushing from the outside
Secure side panel with four easy bolts ( RR), working
from floor to roof. Use easy bolt easy driver ( SS) and
hand tighten. Easy bolt head will be flush when fully
seated. DO NOT over tighten easy bolts.
Note: You may hear a click when easy bolt has been
tightened completely.
