Suncast BMS6583 - Shed Assembly - Floors and Walls; Connect Floor Panels; Attach Left Front Corner Panel; Adjust Left Front Corner Panel

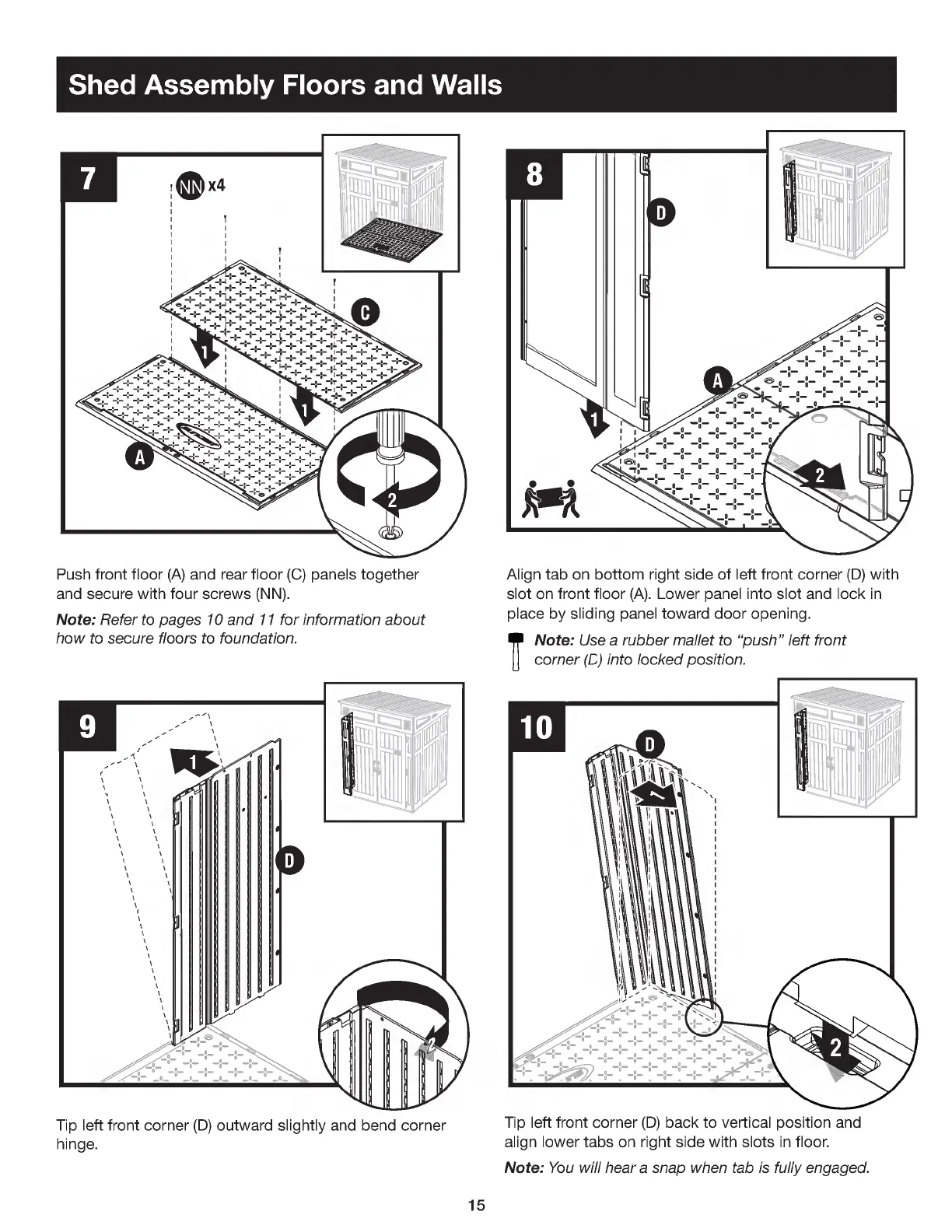

Shed Assembly Floors and Walls
Push front floor ( A) and rear floor ( C) panels together
and secure with four screws ( NN).
Note: Refer to pages 10 and 11 for information about
how to secure floors to foundation.
Tip left front corner ( D) outward slightly and bend corner
hinge.
—r:— ° a ° a° a
:
_ ,
1_ 0 . a .
Align tab on bottom right side of left front corner ( D) with
slot on front floor ( A). Lower panel into slot and lock in
place by sliding panel toward door opening.
7
Note: Use a rubber mallet to " push" left front
corner ( C) into locked position.
Tip left front corner ( D) back to vertical position and
align lower tabs on right side with slots in floor.
Note: You will hear a snap when tab is fully engaged.
15
