Suncast BMS6583 - Shed Assembly - Headers; Install Front Header; Install Rear Header; Install Side Headers

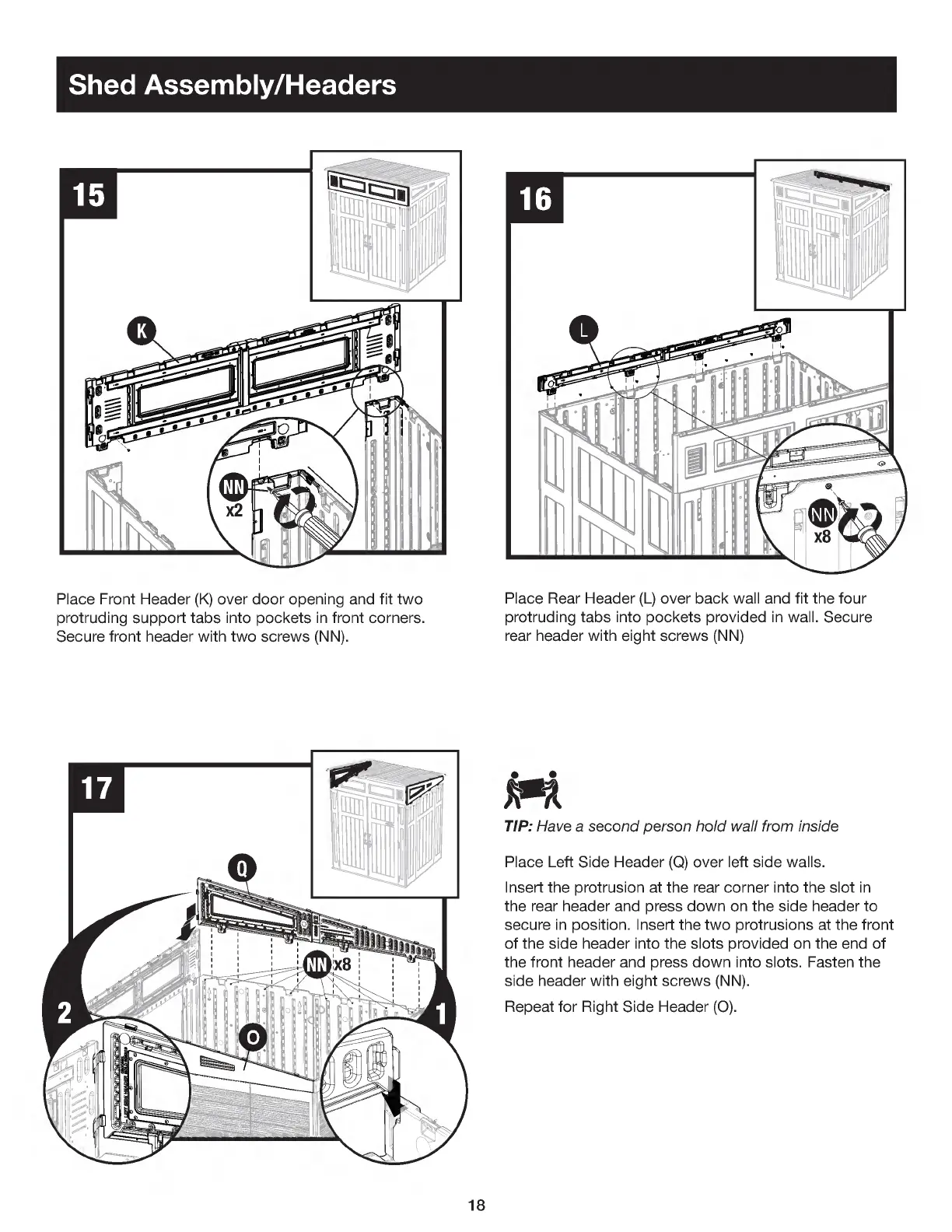

Shed Assembly/Headers
Place Front Header ( K) over door opening and fit two
protruding support tabs into pockets in front corners.
Secure front header with two screws ( NN).
16
I
Place Rear Header ( L) over back wall and fit the four
protruding tabs into pockets provided in wall. Secure
rear header with eight screws ( NN)
>i
TIP: Have a second person hold wall from inside
Place Left Side Header ( Q) over left side walls.
Insert the protrusion at the rear corner into the slot in
the rear header and press down on the side header to
secure in position. Insert the two protrusions at the front
of the side header into the slots provided on the end of
the front header and press down into slots. Fasten the
side header with eight screws ( NN).
Repeat for Right Side Header ( 0).
18
