Suncast BMS6583 - Shed Assembly - Roof Steel and Roof Panels; Install Truss Legs; Install First Roof Panel

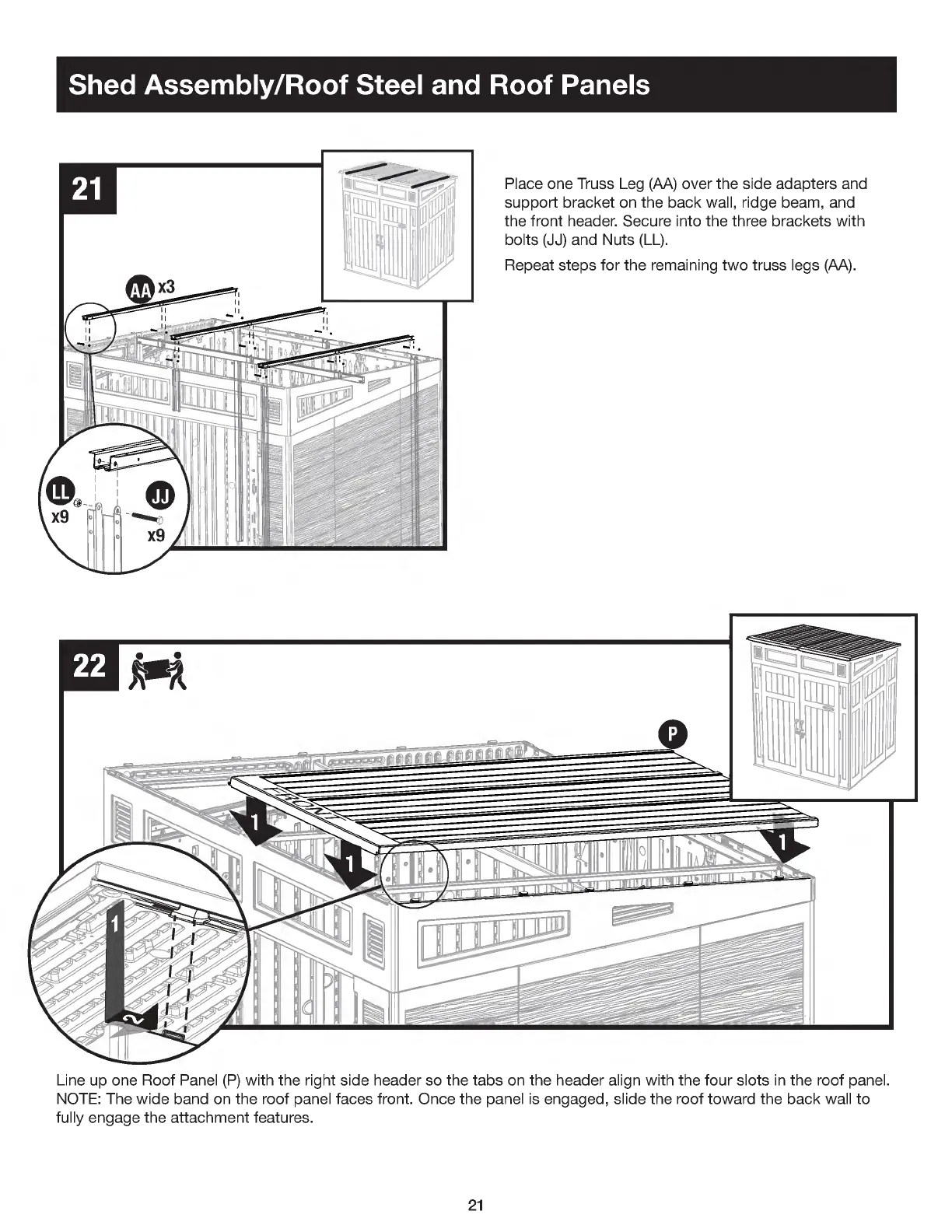

Shed Assembly/Roof Steel and Roof Panels
Place one Truss Leg ( AA) over the side adapters and
support bracket on the back wall, ridge beam, and
the front header. Secure into the three brackets with
bolts ( JJ) and Nuts ( LL).
Repeat steps for the remaining two truss legs ( AA).
Line up one Roof Panel ( P) with the right side header so the tabs on the header align with the four slots in the roof panel.
NOTE: The wide band on the roof panel faces front. Once the panel is engaged, slide the roof toward the back wall to
fully engage the attachment features.
21
