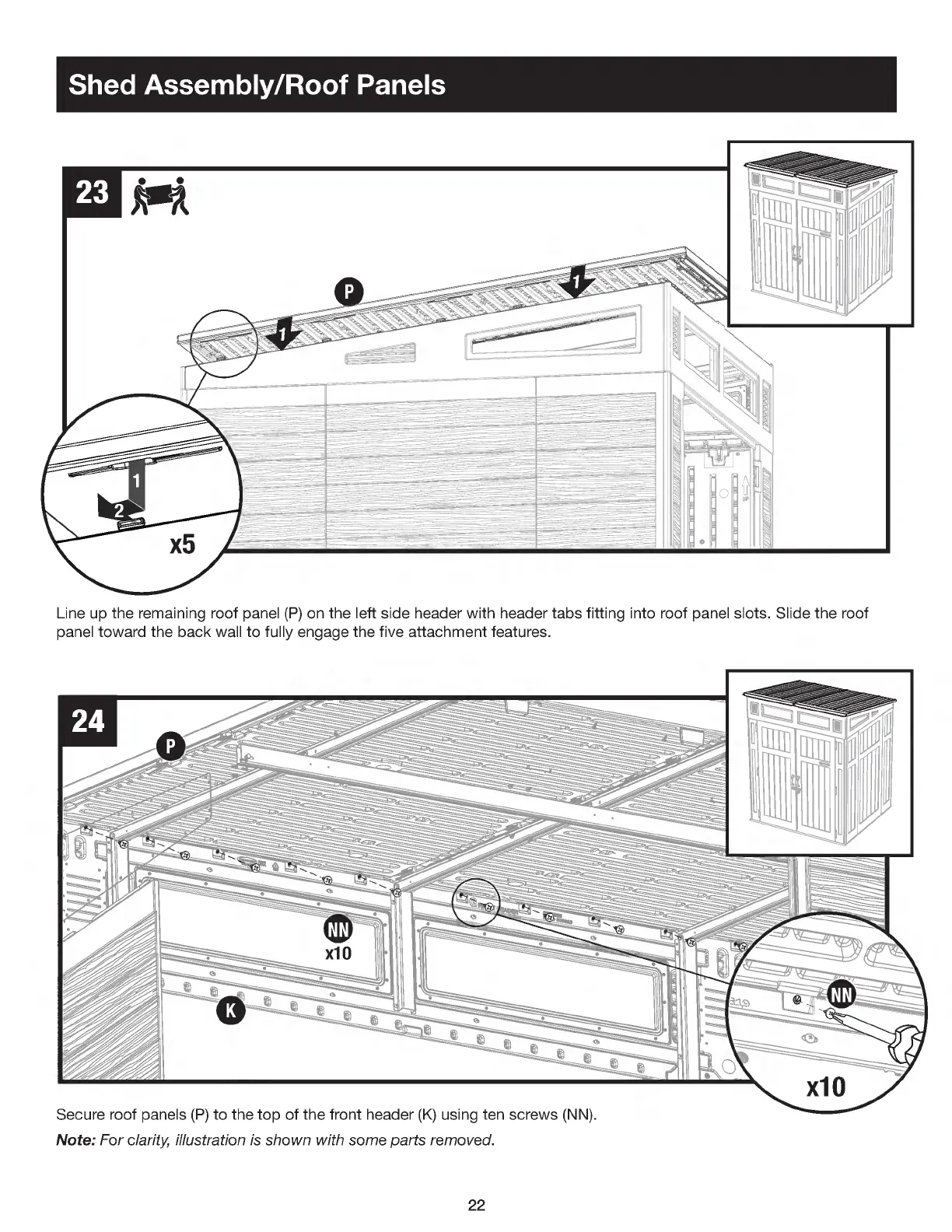

Line
up
the
remaining
roof
panel (
P)
on
the
left
side
header
with
header
tabs
fitting
into
roof
panel
slots.
Slide
the
roof
panel
toward
the
back
wall
to
fully
engage
the
five
attachment
features.
Secure
roof
panels (
P)
to
the
top
of
the
front
header (
K)
using
ten
screws (
NN).
Note:
For
clarity,
illustration
is
shown
with
some
parts
removed.
