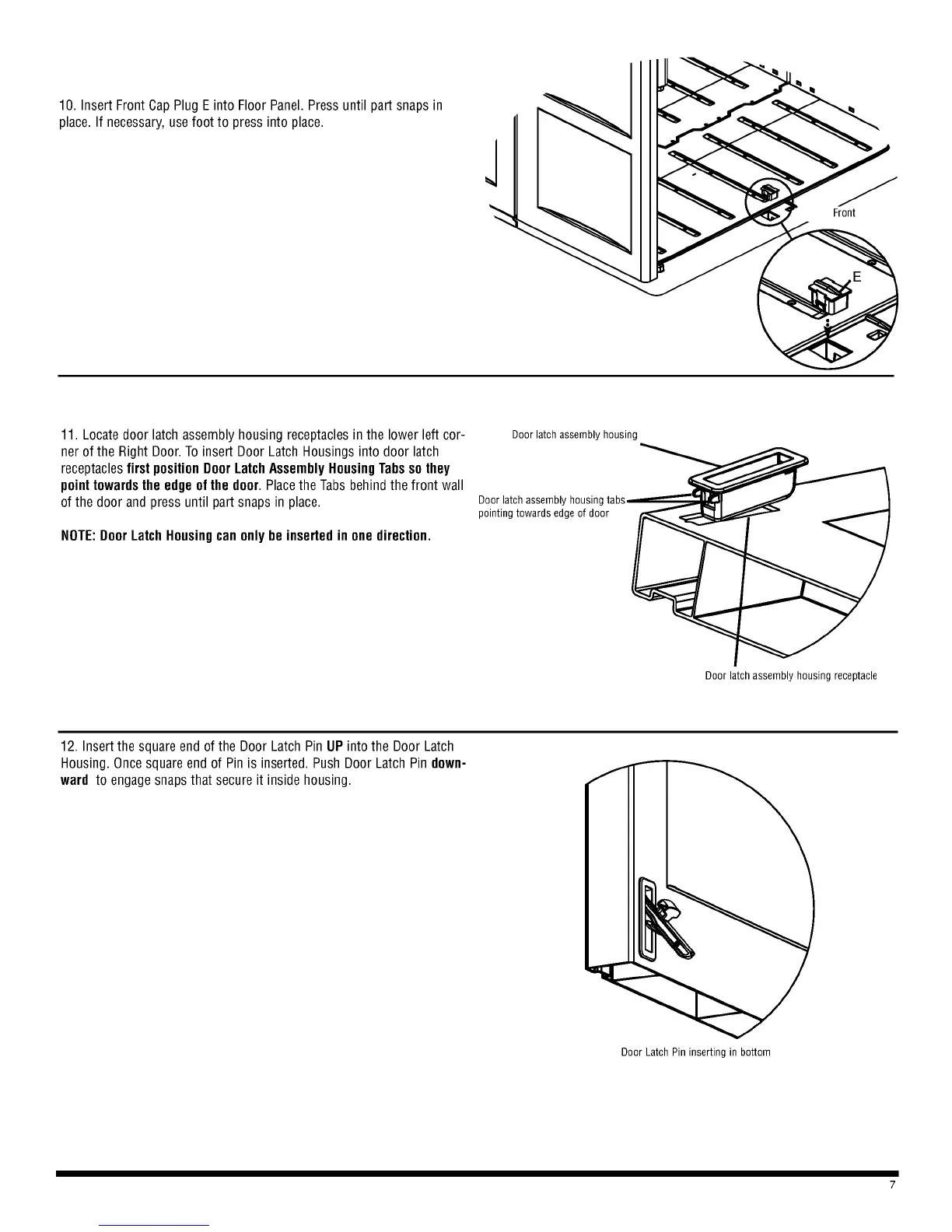

10. Insert Front Cap Plug E into Floor Panel. Press until part snaps in
place. If necessary, use foot to press into place.
11. Locate door latch assembly housing receptacles in the lower left cor-
ner of the Right Door. To insert Door Latch Housings into door latch
receptacles first position Door Latch Assembly Housing Tabs so they
point towards the edge of the door. Place the Tabs behind the front wall
of the door and press until part snaps in place.
NOTE: Door Latch Housing can only be inserted in one direction.
Door latch assembly housing
12. Insert the square end of the Door Latch Pin UP into the Door Latch
Housing. Once square end of Pin is inserted. Push Door Latch Pin down-
ward to engage snaps that secure it inside housing.
7
pointing towards
Door latch assembly housing receptacle
Door Latch Pin inserting in bottom
