36

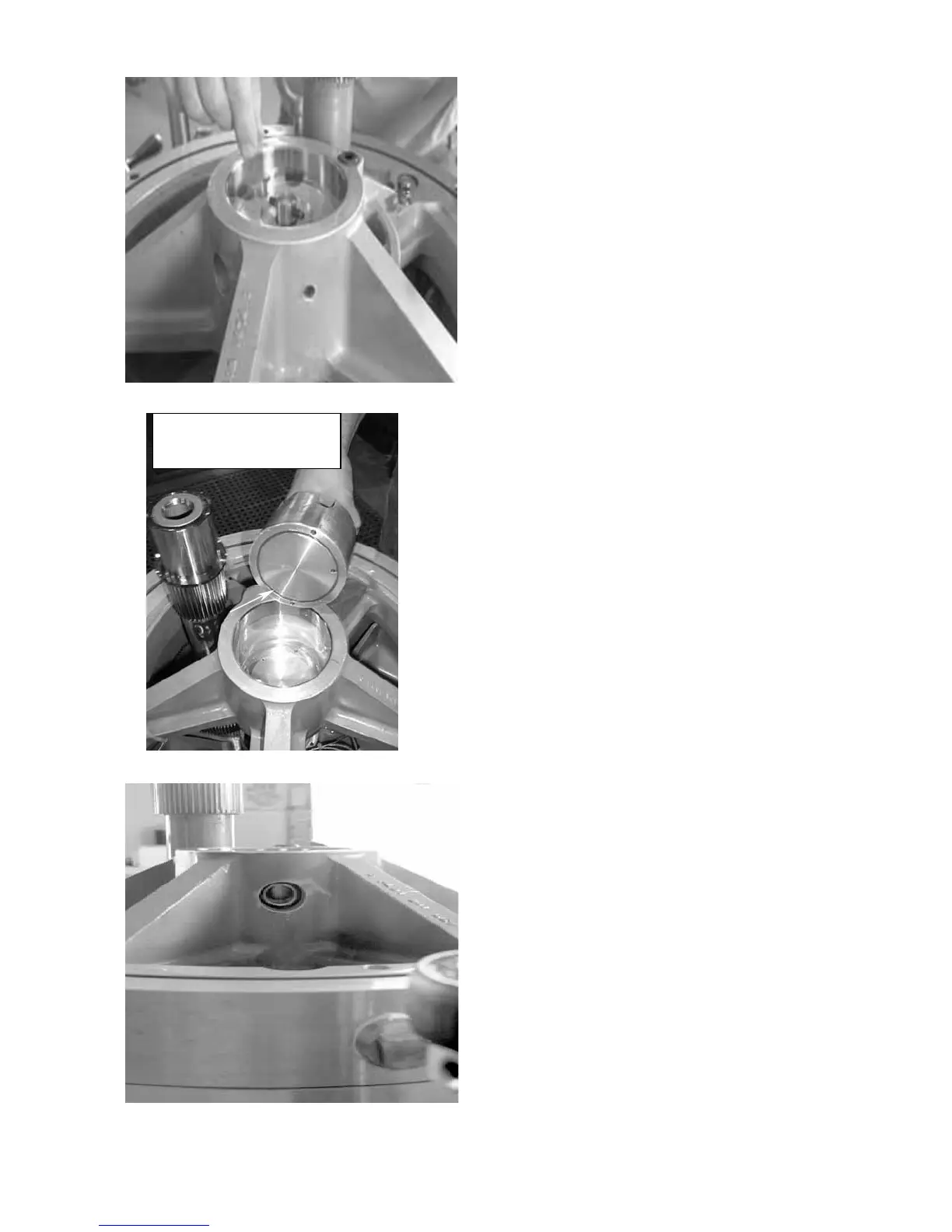

Spacer with O-ring seal
for dry sump gearbox
O-ring
Step 14 Install two 1/4-20 screws into the top of
the lube pump assembly (A160). These
screws are used to turn the lube pump
assembly (A160) around in the bearing
plate (102).
Note: with the dry sump gearbox, a
spacer with O-ring seal is installed
instead of the lube pump.
Step 15 a. Using the 1/4-20 screws in step 14,
turn the lube pump assembly around in
either CCW or CW rotation so you can
see the o-ring (936Z) in the hole in the
bearing plate (102) where the 2.0” x
3/4” pipe nipple (944B) was inserted.
