Note: Position press feet on each side of the press.
Attach one bolt, washer and nut on each side.
Bolts should be attached OFFSET from one another.
Front view
Stand frame upside down
Slide bed onto frame Slide bed down to bottom of frame
WARNING
Be aware of jagged edges
on frame. Not all welds are smooth.
Press bed can pinch or crush fingers.
Wear safety gloves.
WARNING
Leg ends and press feet are sharp
and potentially dangerous. Wear
safety gloves and safety goggles.

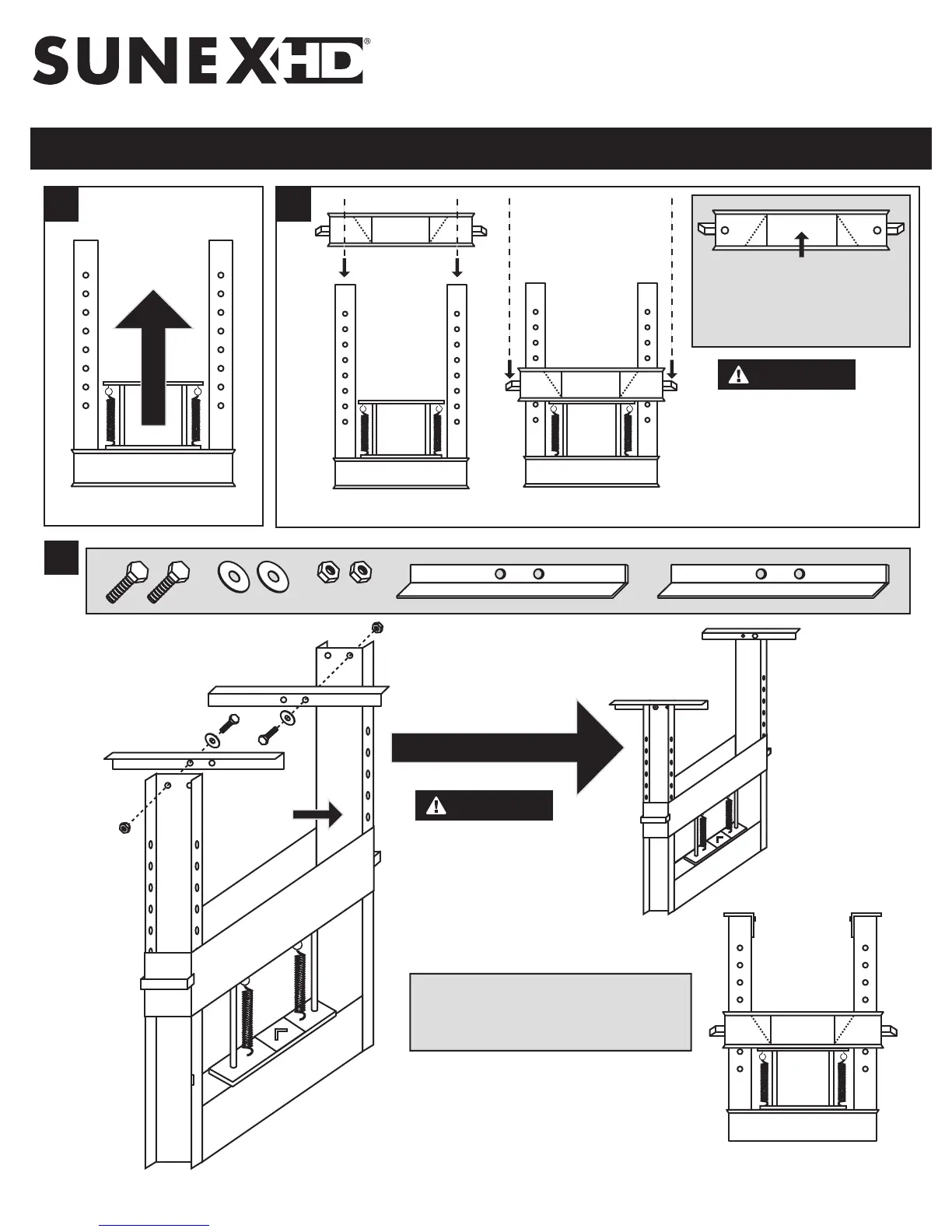

ASSEMBLY INSTRUCTIONS
1
3
2
Inside of frame
Note: In the upright position,
inner bracing should form an
inverted "v" with the narrower
space facing the top of the press.
5712, 5720, 5720AH rev. 10/03/184
5712 - 12 Ton Hydraulic Shop Press
5720 - 20 Ton Hydraulic Shop Press
5720AH - 20 Ton Air/Hydraulic Shop Press
