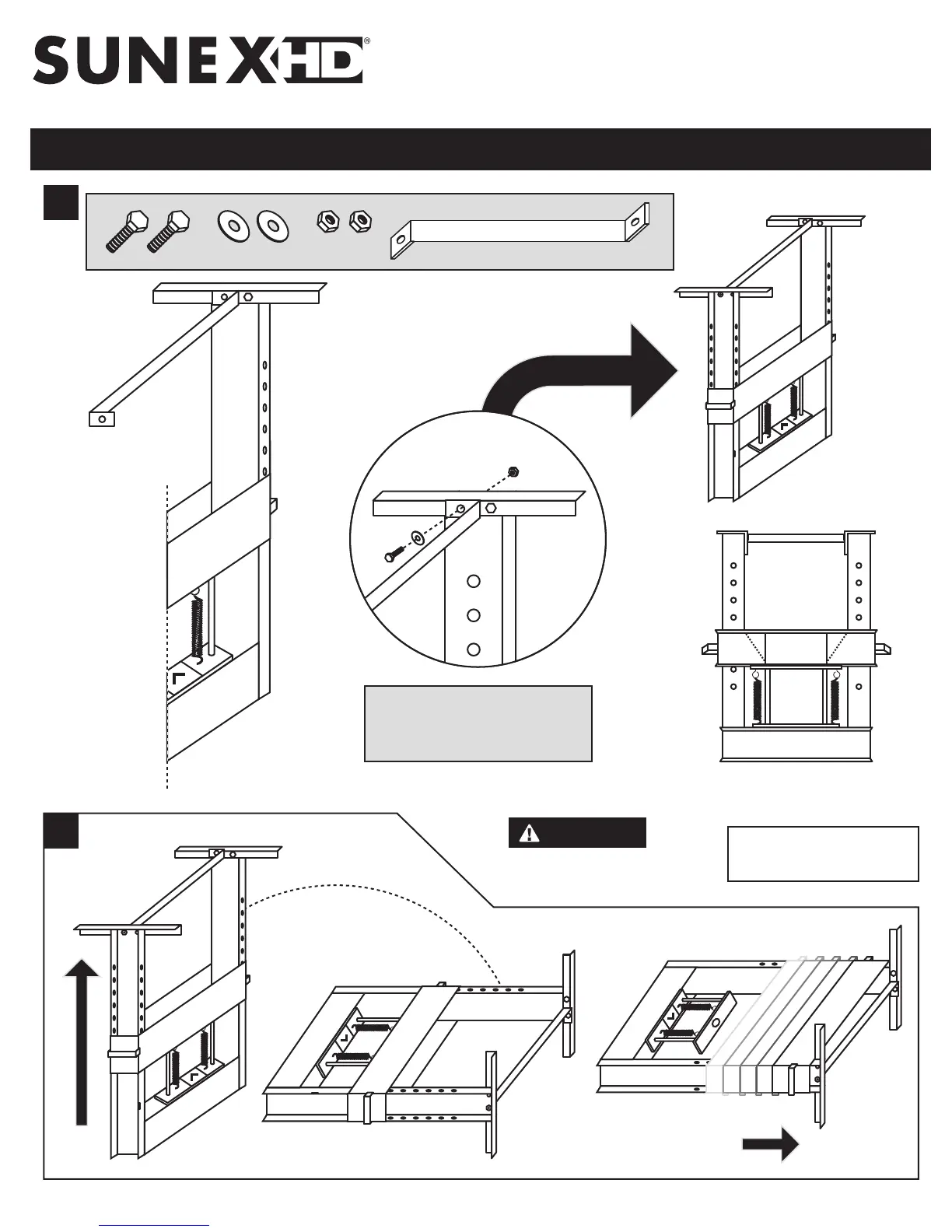

Cross-section of press
Front view
Use bolts, washers and nuts to attach
Z Bar to both sides of the press.
Note: Check all bolts for tightness.
If press rocks, or is not level, loosen press
feet slightly to compensate and retighten.
ASSEMBLY INSTRUCTIONS CONTINUED
4
5
Front view
Slide bed down to bottom of frame
WARNING
Bed must be at the BOTTOM of the frame
before proceeding to the next step.
Note: When sliding bed to frame
bottom, DO NOT use bed handles.
5712, 5720, 5720AH rev. 10/03/185
5712 - 12 Ton Hydraulic Shop Press
5720 - 20 Ton Hydraulic Shop Press
5720AH - 20 Ton Air/Hydraulic Shop Press
