4910B 7 04/13/21
RS10TPAR
10 TON PUMP

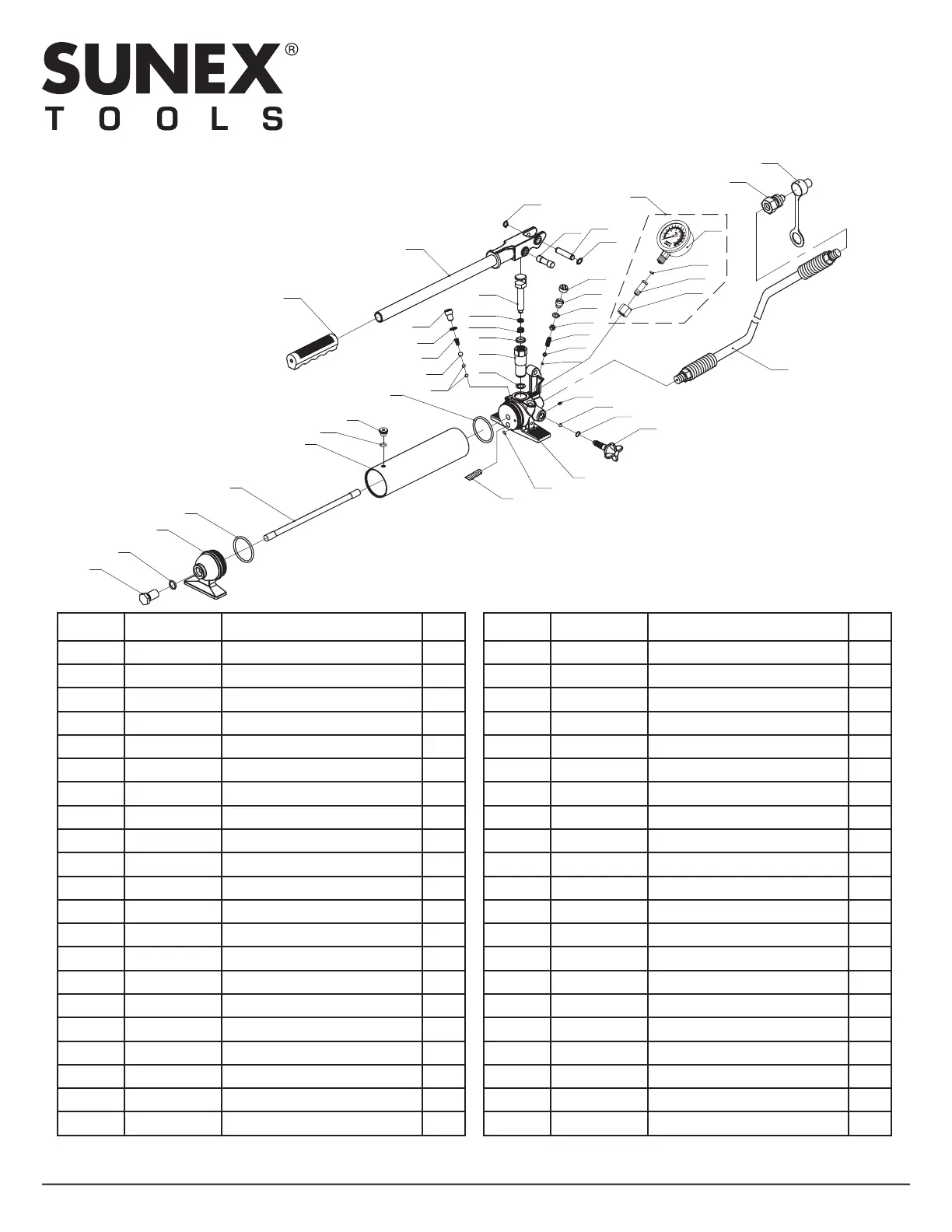

PARTS LIST AND DRAWING
MODEL 4910B
CAPACITY: 10 TON
PORTABLE RAM KIT
*Items identified by an asterisk are available in pump seal kit, RS10TPSKA.
NOTE: Items which are not identified by a part number or with an asterisk are not available separately.
Item # Part # Description Qty
P1 Screw 1
P2 * O-ring 1
P3 RS10TPFR Pump Foot (Red) 1
P4 * O-ring 2
P5 Tie Rod 1
P6 Reservoir 1
P7 Breather Screw 1
P8 Oil Filter 1
P9 Valve Block 1
P10 * Ball 3
P11 * Ball 1
P12 * Spring 1
P13 * Washer 1
P14 Plug Screw 1
P15 * Copper Ring 1
P16 * Piston Seat 1
P17 * Anti-dust Ring 1
P18 * Sealing Ring (incl 18-1 & 18-2) 1
P19 Screw 1
P20 Piston 1
P21 * Ball 1
Item # Part # Description Qty
P22 * Ball Cup 1
P23 * Spring 1
P24 * Screw 1
P25 * O-ring 2
P26 Screw 1
P27 Screw Cap 1
P28 * O-ring 1
P29 RSP15 Release Valve (Red) 1
P30 RSHS Hose 1
P31 RSP17 Male Coupler 1
P32 RSP18 Hose Dust Cover 1
P33 Magnet 1
P34 RS10THNDLR Handle (Red) 1
P35 Handle Sleeve 1
P36 Pin 1
P37 Sealing Ring 2
P38 Pin 1
P39 RSPGA Pressure Gauge (incl P39 - P42) 1
P40 O-ring 1
P41 Gauge Fitting 1
P42 Nut 1
P1
P2
P3
P4
P5
P6
P25
P7
P10
P11
P12
P13
P14
P20
P18-1
P18-2
P17
P16
P15
P4
P8
P9
P10
P28
P29
P21
P22
P23
P24
P25
P26
P27
P31
P32
P30
P19
P34
P35
P36
P38
P37
P33
P37
P39
P40
P41
P42
P39
