4910B 8 04/13/21
RSSPRAR

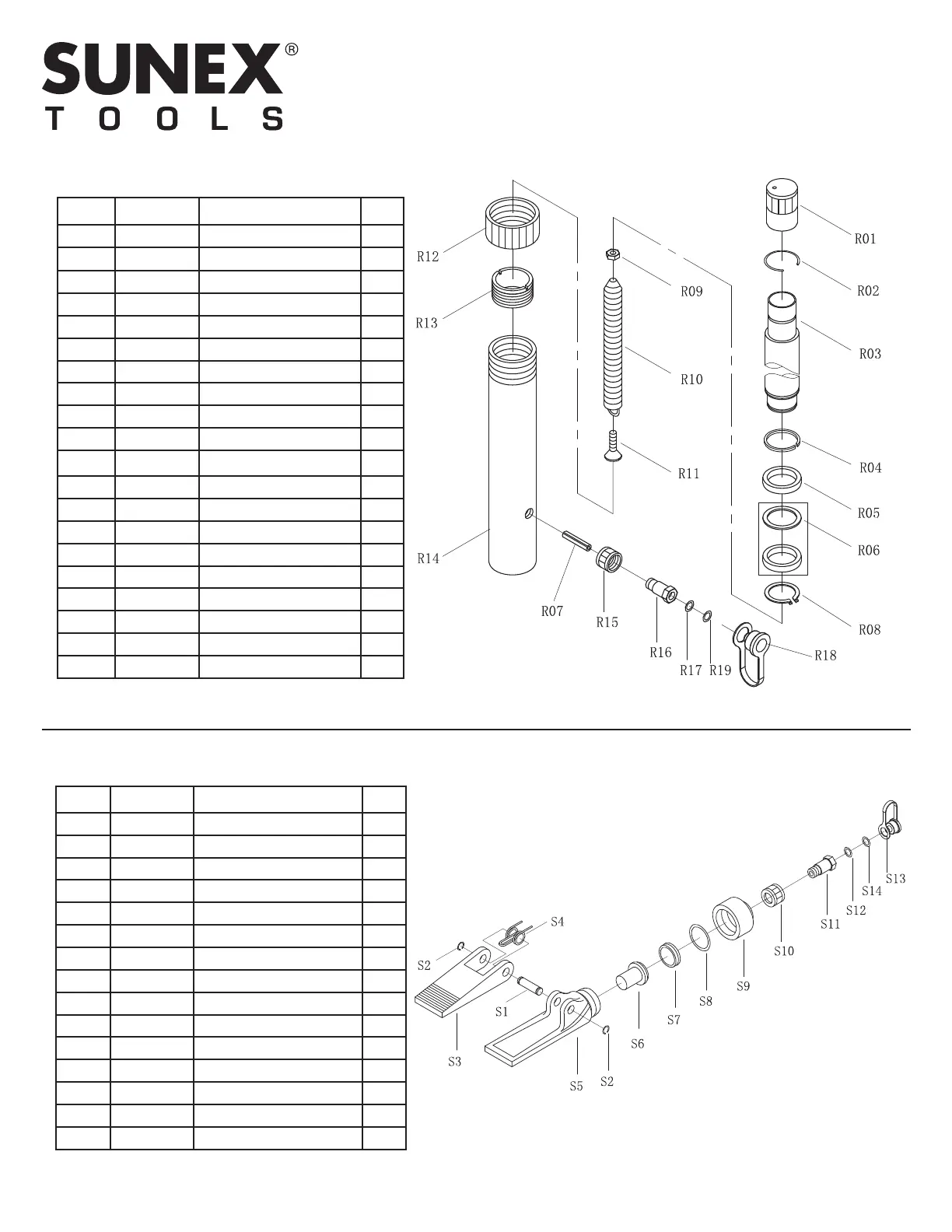

SPREADER PARTS BREAKDOWN
RS10TR
RAM PARTS BREAKDOWN
MODEL 4910B
CAPACITY: 10 TON
PORTABLE RAM KIT
*Items identified by an asterisk are available in Ram Seal Kit, RS10TRSKA.
NOTE: Items which are not identified by a part number or with an asterisk are not available separately.
*Items identified by an asterisk are available in Spreader Seal Kit, RSSPRASK.
NOTE: Items which are not identified by a part number or with an asterisk are not available separately.
Item# Part# Description Qty
R01 RS10TR01 Cover 1
R02 Circlip 1
R03 Piston Rod 1
R04 * Circlip 1
R05 * Bushing 1
R06 * Sealing Ring Set 1
R07 Pin 1
R08 * Circlip 1
R09 Nut 1
R10 Spring 1
R11 Screw 1
R12 RS10TR12 Protection Cap 1
R13 Limit Ring 1
R14 Cylinder 1
R15 Nut 1
R16 Female Coupler 1
R17 O-ring 1
R18 Dust Cap 1
R19 Sealing Ring 1
N/S RSRCPLR Ram Coupler (incl R15–R19) 1
Item# Part# Description Qty
S1 Pin 1
S2 Circlip 1
S3 Movable Jaw 1
S4 Spring 1
S5 Fixed Jaw 1
S6 Piston 1
S7 * Cup Seal 1
S8 * O-ring 1
S9 End Cap 1
S10 Nut 1
S11 Coupler 1
S12 O-ring 1
S13 Dust Cover 1
S14 Sealing ring 1
N/S RSSPRCPLR
Spreader Coupler (incl S10 – S14)
1
