5221 and 5222 5 2/3/20
Parts identified by an asterisk, plus the caster hardware, are available in the Hardware Kit, RS5222BK

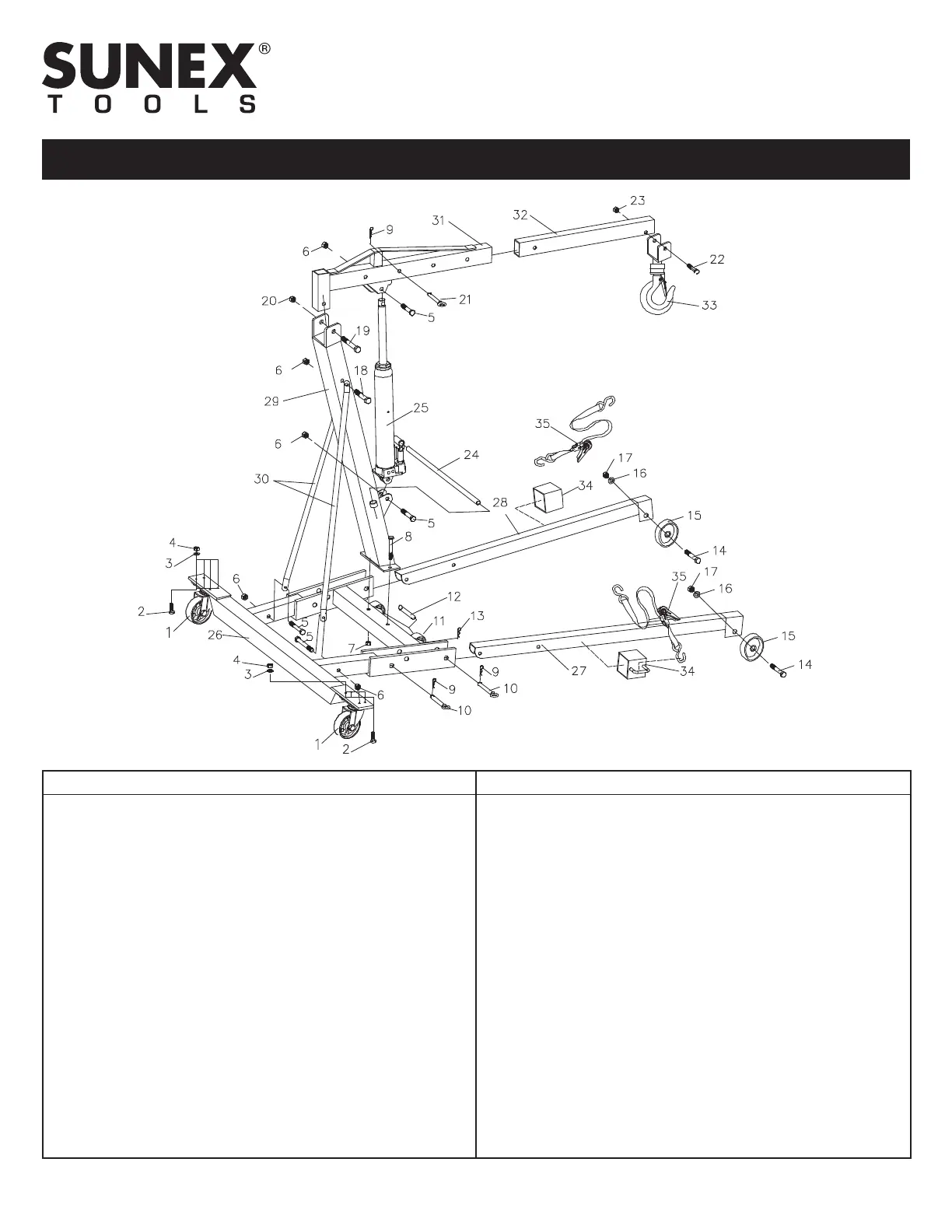

PARTS LIST AND DRAWING
1 RS522201 Rear caster assembly (incl. 2,3
& 4)
2
2 * Bolt M8X25 (incl. w/#1) 8
3 * Spring washer 8 (incl. w/#1) 8
4 * Nut M8 (incl. w/#1) 8
5 * Bolt M16x85 4
6 * Nut M16 5
7 * Nut M14 2
8 * Bolt M14X110 2
9 * R-Clip 5
10 * Detent Pins 17X103 4
11 RS522211 Middle wheel assembly (incl. 12
& 13)
2
12 * Pin 10X54 (incl. w/#11) 2
13 * R-Clip (incl. w/#11) 2
14 * Bolt M12x75 (incl. w/#15) 2
15 RS522215 Front leg wheel assembly (incl. 14,
16 & 17)
2
16 * Spring washer 12 (incl. w/#15) 2
17 * Nut M12 (incl. w/#15) 2
18 * Bolt M16x100 1
19 * Bolt M20x110 1
Ref No. Part No. Description Qty Ref No. Part No. Description Qty
20 * Nut M20 1
21 * Detent Pins 16x85 1
22 * Bolt M14x75 1
23 * Nut M14 1
24 RS522224 Pump Handle 21.3x580 1
25 RS522125 Hydraulic Ram (5221) 1
RS522225 Hydraulic Ram (5222) 1
26 Base frame 1
27 Right leg extension 1
28 Left leg extension 1
29 Upright Mast 1
30 Mast Brace 2
31 Boom 1
32 Boom extension 1
33 RS522233 Hook Assembly 1
34 RS602131 Sliding Strap Loop (pair) 1
35 RS602132 Strap (pair) 1
Not
Shown
RS5221PLK Label Kit for 5221 1
Not
Shown
RS5222PLK Label Kit for 5222 1
5221 and 5222
CAPACITY: 1 and 2 TON
FOLDABLE ENGINE CRANES
