Sunex Tools 6602LP - Hydraulic Jack Maintenance Guide; Regular Maintenance

6602LP 5 Rev. 1/15/20
HYDRAULIC JACK MAINTENANCE GUIDE
IMPORTANT: Service jacks are designed for lifting purposes only; always support raised load with jack stands.

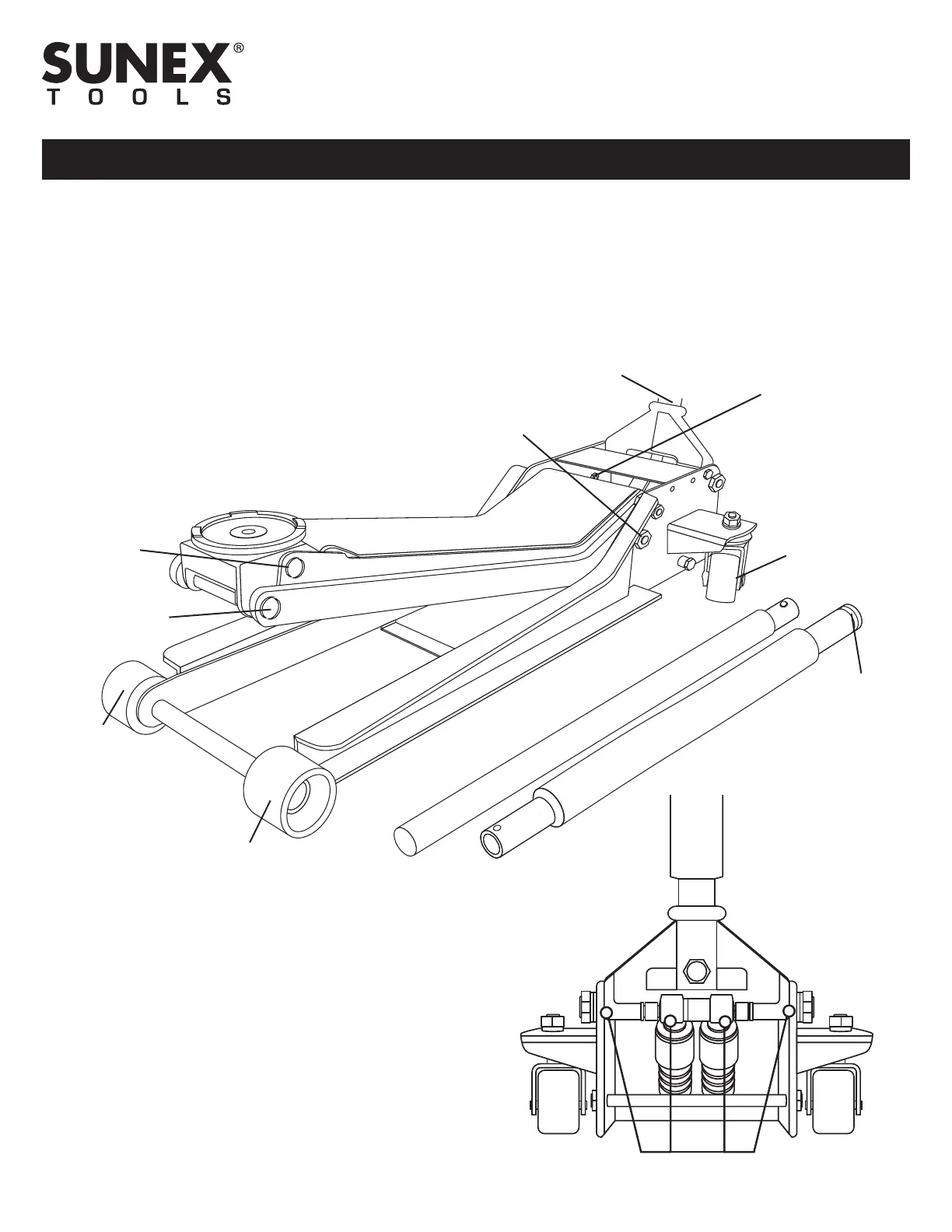

REGULAR MAINTENANCE
• MONTHLY or as necessary (depending on usage)
1. Using a grease gun, add grease to grease fitting in the lift arm pivot shaft.
(Use a multi-purpose NLGI type grease only.)
2. Lubricate all linkages and pivot points.
(Use white lithium spray grease only.)
3. Remove handle; lubricate handle receptacle and handle end.
(Use white lithium spray grease only.)
4. Lubricate both rear casters, bearing and both front wheels.
(Use white lithium spray grease only.)
5. Tighten all accessible hardware.
#2
#3
#4
#4
#4
#1
#2
#2
#3
#2
OWNER'S MANUAL
MODEL 6602LP
CAPACITY: 2 TON
LOW RIDER SERVICE JACK
