6602LP 7 Rev. 1/15/20
REF # PART# DESCRIPTION QTY
1 RS35T01 Star Clip (20) 2
2 RS35T02 Washer (20) 2
3 RS6602LP03 Front Wheel 2
4 Frame 1
5 Retaining Ring (25) 2
6 RS6602LP06 Nut (M16) 4
7 Washer (16) (incl. with #9) 4
8 Screw (M5x12) (incl. with #9) 4
9 RS6602LP09 Rear Caster Assembly (incl. #7, 8) 2
10 Screw (M10x25) 4
11 Washer (10) 4
12 Retaining Ring (15) (incl. with #14) 2
13 Nut (incl. with #14) 2
14 RS6602LP14 Shaft Assembly (incl. #12, 13, 15) 2
15 Washer (20) (incl. with #14) 2
16 Nut (M8x20) 4
17 Washer (8) 5
18 RS35T13 Handle Set Screw 1
19 RS6602LP19 Handle Socket 1
20 Retaining Ring (12) 1
21 Roller 1
22 Roller Shaft 1
REF # PART# DESCRIPTION QTY
23 RS6602LP23 Spring and Button 1
24 RS6602LP24 Handle Lever "A" 1
25 RS35T20NL Handle Bumper 1
26 RS6602LP26 Handle Lever "B" 1
27 RS6602LP27 Complete Hydraulic Unit 1
28 RS6602LP28 Spring 2
29 RS6602LP29 Hydraulic Unit Adapter (incl. #30) 1
30 Retaining Ring (22) (incl. with #29) 2
31 Pin (A4x55) 1
32 Lift Arm Shaft 1
33 RS6602LP33 Zerk 1
34 Lift Arm 1
35 Bolt 2
36 Cover Plate 1
37 RS6602LP37 Retaining Ring (14) 2
38 Radius Linkage 2
39 RS6602LP39 Saddle 1
40 RS6602LP40 Saddle Screw 1
41 RS6602LP41 Universal Rotating Device 1
RS6602LP42 Product Label Kit (not shown) 1

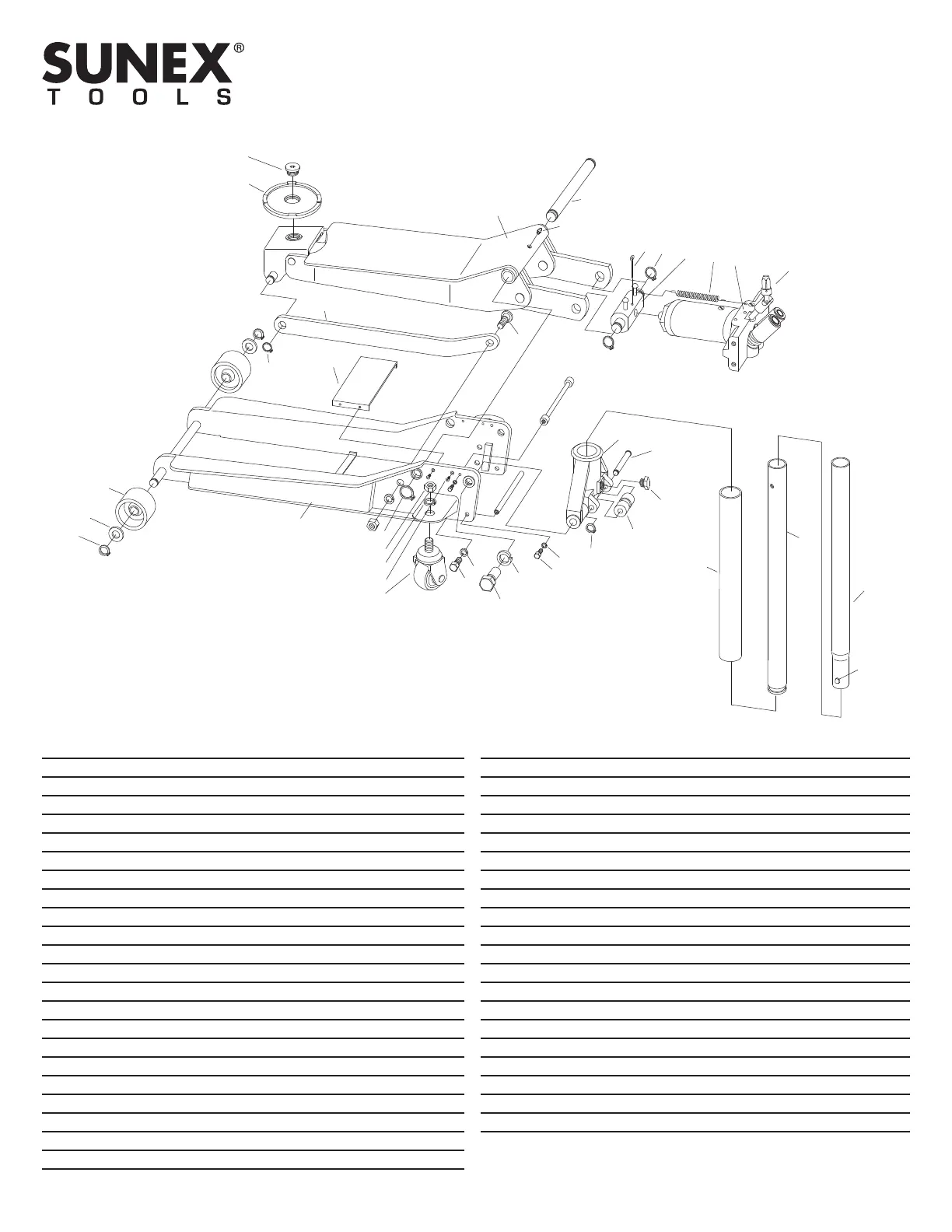

PARTS LIST
AND DRAWING
Only items identified by part number are available for purchase.
8
11
9
10
14
15
1
2
3
4
6
7
36
39
40
31
30
28
29
27
33
5
32
16
17
37
38
34
35
42
20
18
21
22
19
41
24
26
25
MODEL 6602LP
CAPACITY: 2 TON
LOW RIDER SERVICE JACK
