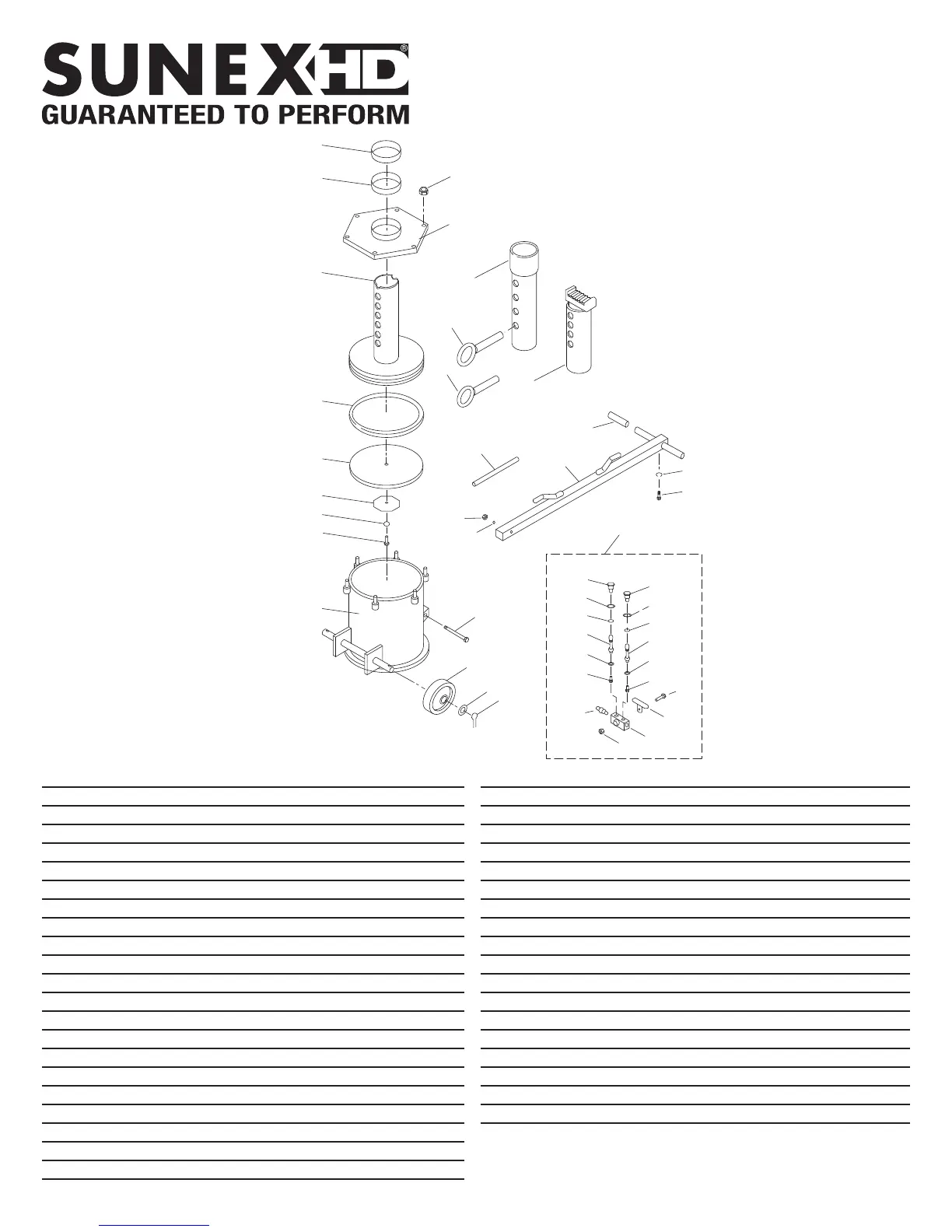

Sunex Tools 6710 - Parts List and Drawing

6710 Rev. A 5 Rev. 3/13/17
REF # PART# DESCRIPTION QTY
22 * Ram Packing 1
23 * Packing 1
24 * O-Ring 1
25 Lock Washer 1
26 Bolt 1
29 Cap 2
30 Spring 2
31 Bolt 2
32 O-Ring 2
33 Seal Washer 2
35 Valve Cone 2
37 Coupler 1
38 Air Valve Block 1
39 Nut 1
40 Control Lever 1
41 Screw 2
42 Washer 2
RS6710APLK Product Label Kit (not shown) 1
* Available in Repair Kit: RS6710RK (incl. #8, 22-24)
22
23
6
8
10
11
24
12
1
21
2
4
3
37
30
41
42
16
19
7
18
25
17
20
33
35
32
29
31
33
30
26
40
38
39
35
32
29
31
14
15
13
9a
9b
PARTS LIST
AND DRAWING
6710 Rev. A
CAPACITY: 10 TON
PORTABLE AIR LIFT JACK
Only items identified by part number are available for purchase.
REF # PART# DESCRIPTION QTY
1 Base Assembly 1
2 RS671002 Wheel (incl. #3, 4) 2
3 Cotter Pin (incl. with #2) 2
4 Washer (incl. with #2) 2
6 Ram 1
7 RS671007 Serrated Saddle Column 1
8 * Cylinder Packing 1
9a Locking Pin (A) 2
9b Locking Pin (B) 1
10 Seal Backing 1
11 Washer 1
12 Bolt 1
13 RS671013 Extension Column 1
14 Nut 6
15 Cylinder Plate 1
16 Handle Grip 1
17 Handle Assembly 1
18 Nut 1
19 RS671019 Air Hose (including clamps) 1
20 RS671020 Air Valve Assembly (incl. #26-40) 1
21 Bolt 1
