Sunfire SDG-1 - Assembly and Installation of Legs

Part # 1844030 (03/19/10)Page 6

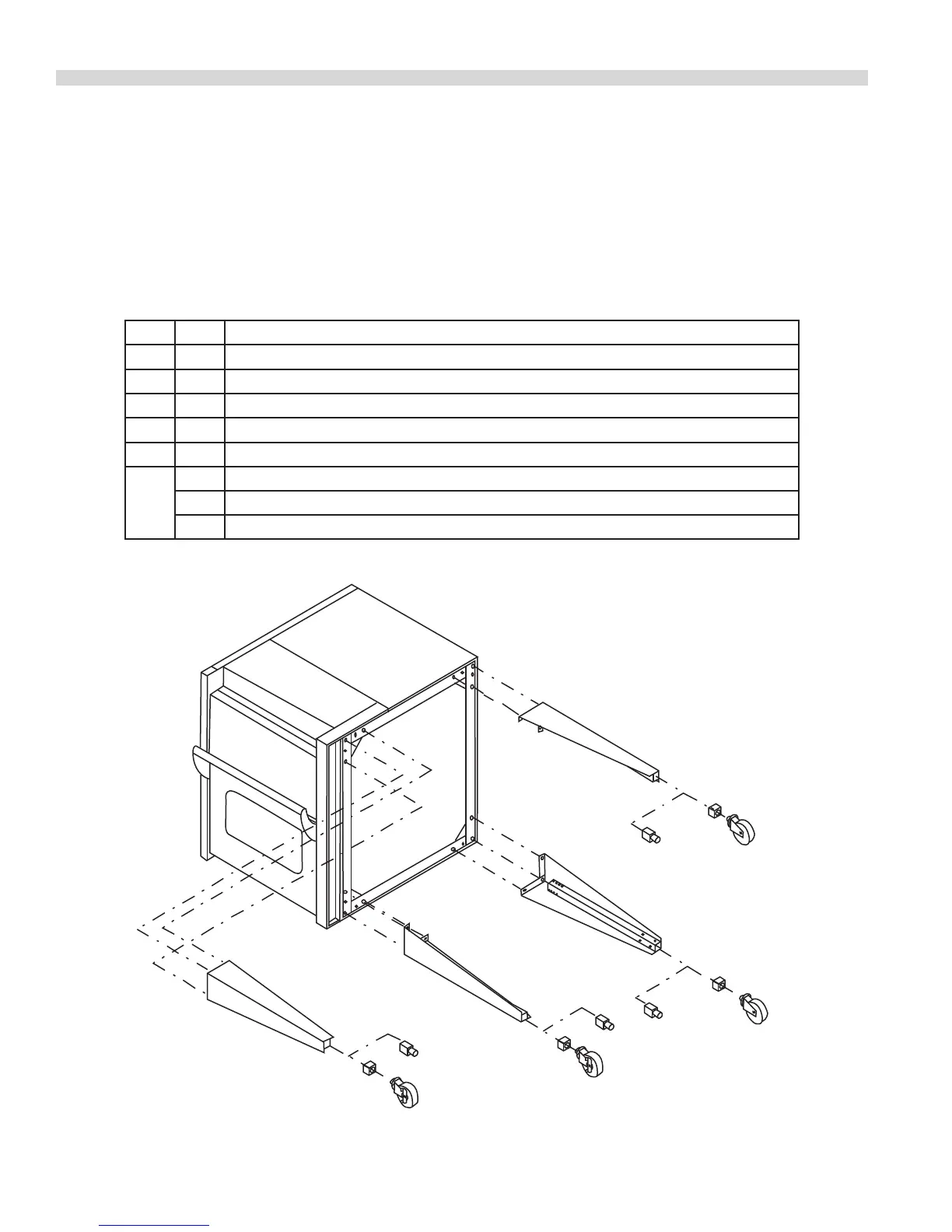

Assembly and Installation of Legs
Verify all parts are present before beginning assembly.
Tools required for assembly
1. 9/16” Wrench
2. 1” Wrench
3. Hammer, (unless installing casters).
1
5
4
2
1
4
5
2
23
5
1
2
5
3
1
Parts List
ITEM QTY DESCRIPTION
1 4 Legs
2 4 Square Foot Inserts (Foot Version Only)
3 2 Heavy Duty Casters Without Brakes (Caster Version Only)
4 2 Heavy Duty Casters With Brakes (Caster Version Only)
5 4 Caster Pad Assemblies (Caster Version Only)
1 Bag Of Hardware
12 3/8” – 16 X ¾” Bolts
12 3/8” Flat Washers
INSTALLATION Continued
