CHAPTER 2
VCR connections: analog audio and composite video
DVD I N
SAT IN
HDMI OUT
MANUFACTURED UN
DER
LICENSE FR
OM D
IGITAL THEA
TER
SYSTEMS, INC. US PAT. NO. 5,451,942, 5,956,674, 5,974,380,
5,978,762 AND OTHE
R WO
RLD-WIDE PAT
ENTS ISSUED AND
PENDING. "DTS", "D
TS-ES EXT
ENDED SURROUND" AND
"NEO:6" ARE TRADEMARKS O
F DIGITAL THEATER
SYSTEM
S, INC. COPY
RIGHT 199
6, 2000, DIGITAL TH
EATER
SYSTEMS, INC. ALL
RIGHTS RESERVE
D.
MANU
FA
CTUR
ED UND
E
R LICENSE
FROM DOLBY LABORA
TOR
IES.
"DOLB
Y", "PRO-LOG
IC" AND TH
E
D
OUBLE-D SYMBOL ARE
TR
ADEMAR
KS OF D
OLBY
LABORATOR
IES.

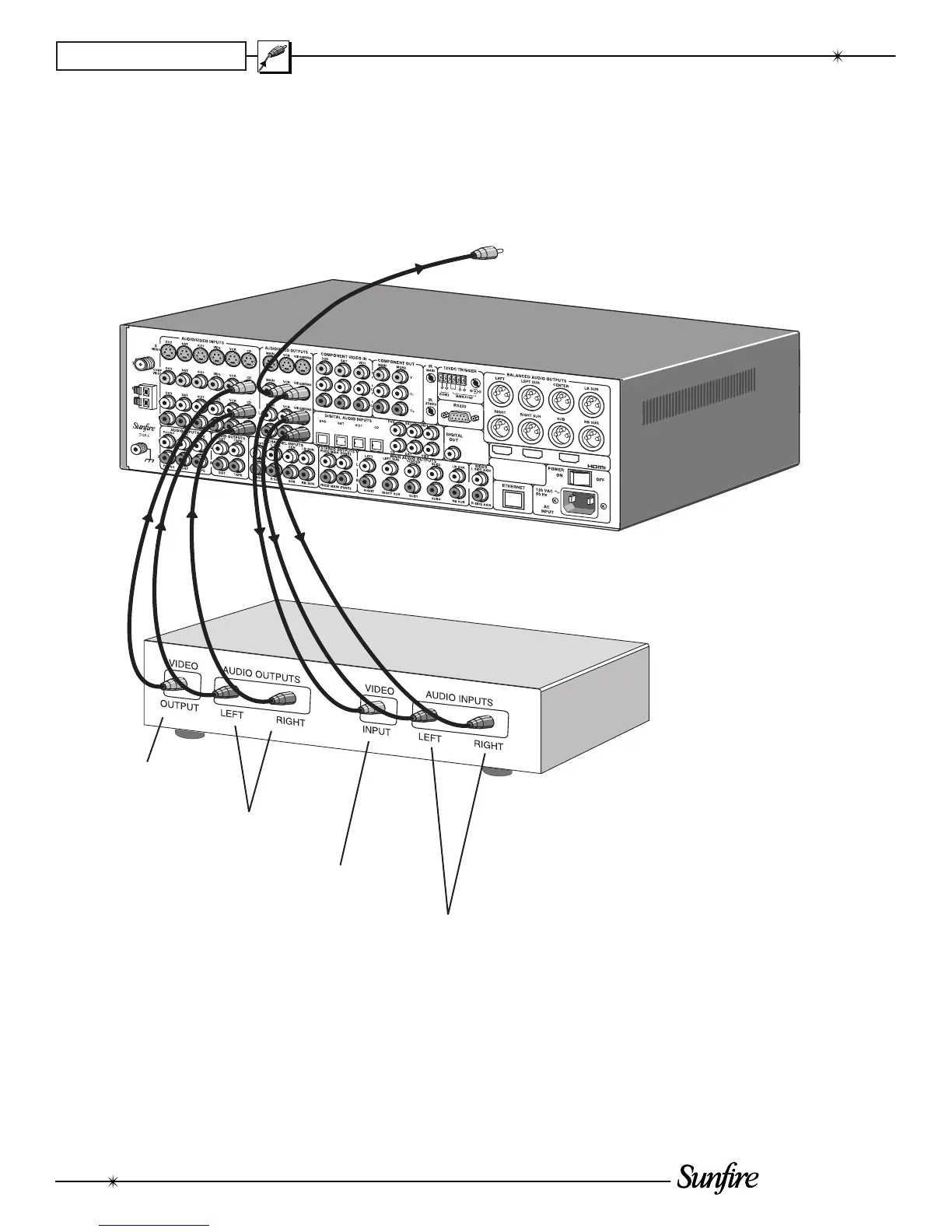

The VCR can record the analog
audio and the video of whichever A/V
input is se lect ed.
NOTE: If your VCR has a digital
audio output, connect it to the TGP-
5’s digital VCR input. In this case, you
must also connect the VCR’s analog
audio outputs (as shown) if you want
to play in Zone 2 when the Main Zone
is playing a different source.
Composite video signal from
TGP-5 MAIN composite video output
to TV Monitor's composite video input
Analog audio signals (play)
From: VCR audio outputs
To: TGP-5 VCR L/R audio inputs
Composite video signal (play)
From: VCR video output
To: TGP-5 VCR video input
Analog audio signals (record)
From: TGP-5 VCR L/R audio
outputs
To: VCR L/R audio inputs
Composite video signal (record)
From: TGP-5 VCR video output
To: VCR video input
