User's Manual
24
CHAPTER 2
Zone 2 connections
Zone 2 can play stereo analog
sources independently of the main
zone, or can play the same source.
Zone 2 can only play a digital source
if the main zone is playing the same
source.
Note that Zone 2 has to be enabled
before it can be used. Please see
page 47 for more details of Zone 2
operation.

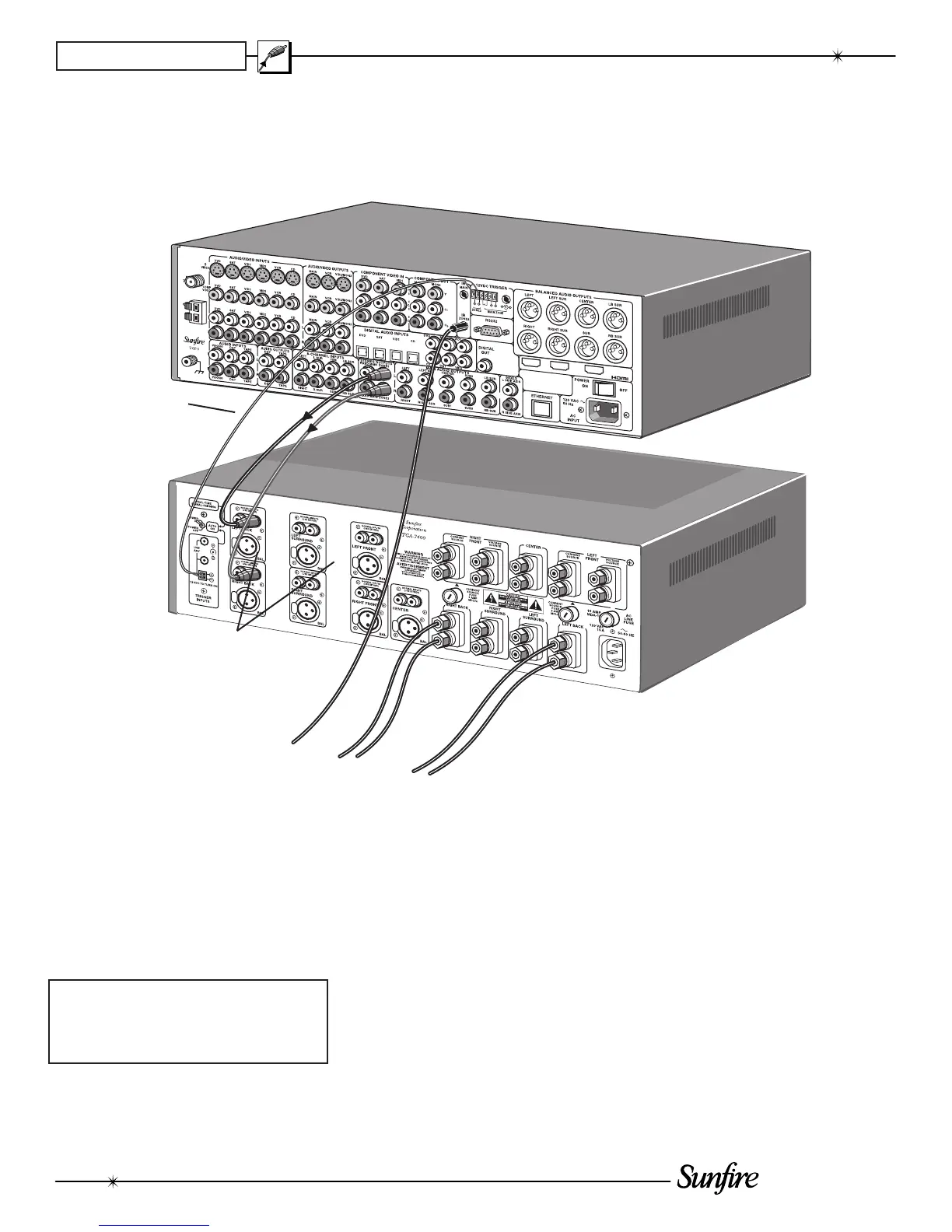

This example shows a Sunfi re
TGA-7400 power amplifi er fed from
the TGP-5 Zone 2 stereo outputs.
DVD I N
SAT IN
HDMI OUT
MANUFACTURED
UNDER LICENSE
FROM DIGITAL T
HEATER
SYSTEMS, INC. US PAT. NO. 5,451,
942, 5,956,674, 5,974,380,
5,978,762 AND OTHER WORLD-W
IDE PATENTS ISSUED AND
PENDING. "DTS", "DTS-ES EXTENDED
SURROUND" AND
"NEO:6" ARE TRA
DEMARKS OF DIGITAL THEAT
ER
SYSTEMS, INC. COPYRIGHT 1996, 20
00, DIGITAL THEATER
SYSTEMS, INC. AL
L RIGHTS RESERVED.
MANUFACTURED UNDER LICENSE
FROM DOLBY LABORATORIES.
"DOLBY", "PRO-LOGIC" AND THE
DOUBLE-D SYMBOL ARE
TRADEMARKS OF DOLBY
LABORATORIES.
MINIMUM SPEAKER
LOAD IMPEDANCE 4 OHMS
The amplifi er is located near the
TGP-5, and long speaker wires are
run out to your Zone 2 speakers.
These are usually located in another
room or area of your house.
The wire from an optional Infrared
(IR) sensor is shown connected to the
TGP-5 Zone 2 IR input. The TGP-5
is compatible with most makes of IR
sensors and equipment.
The sensor can be located in a
suitable area of Zone 2, allowing you
Connect to an external IR
remote sensor in Zone 2
Analog line-level audio
signals
From: TGP-5 Zone 2 L/R
audio outputs
To: Amplifi er L/R
audio inputs
Speaker-level audio signals
From: Amplifi er speaker outputs
To: Zone 2 speaker inputs
12 VDC trigger voltage
From: TGP-5 Zone 2
12 VDC trigger output
To: Amplifi er 12 VDC
trigger input
complete control of the volume and
source selection. Zone 2 can also be
controlled from the front panel, using
the remote's Zone 2 buttons.
This diagram also shows the TGP-5
12 VDC Zone 2 trigger output con-
nected to the 12 VDC trigger input of
the Sunfi re amplifi er. The amplifi er
automatically turns on whenever Zone
2 is turned on.
