CHAPTER 2
Amplifi er connections
If your amplifi er has XLR inputs,
it can be connected to the balanced
audio outputs as shown. It is prefer-
able to use the XLR con nec tions if
you have this option, because they of-
fer superior noise rejection compared
to un bal anced (RCA) connections,
especially for long cable runs.
(or use RCA unbalanced
outputs as needed)
DVD I N
SAT IN
HDMI OUT
MANUFACTURED U
NDER LICENSE FROM DIGITAL THEAT
ER
SYSTEMS, INC. US PAT. NO. 5,451,942, 5,956,674, 5,974,380,
5,978,762 AND OTHER WORLD-W
IDE PATENTS ISSUE
D AND
PENDING. "DTS", "DTS-ES EXTENDED
SURROUND" AND
"NEO:6" ARE TRADEMARKS OF DIGITAL THEATER
SYSTEMS, INC. COPYRIGHT 1996, 20
00, DIGITAL THEATER
SYSTEMS, INC. ALL RIGHTS RESERVED.
MANUFACTURED UNDER LICENSE
FROM DOLBY LABORATORIES.
"DOLBY", "PRO-LOGIC" AND THE
DOUBLE-D SYMBOL ARE
TRADEMARKS OF DOLBY
LABORATORIES.
MINIMUM SPEAKER
LOAD IMPEDANCE 4 OHMS
R
RB
RS
C
To Speakers
LS
LB
L
Balanced analog
line-level audio signals
From: TGP-5 balanced
audio outputs
To: Amplifi er balanced
audio inputs
Speaker-level audio signals
From: Amplifi er speaker outputs
To: Speaker inputs
12 VDC trigger voltage
From: TGP-5 12 VDC
trigger output
To: Amplifi er 12 VDC
trigger input

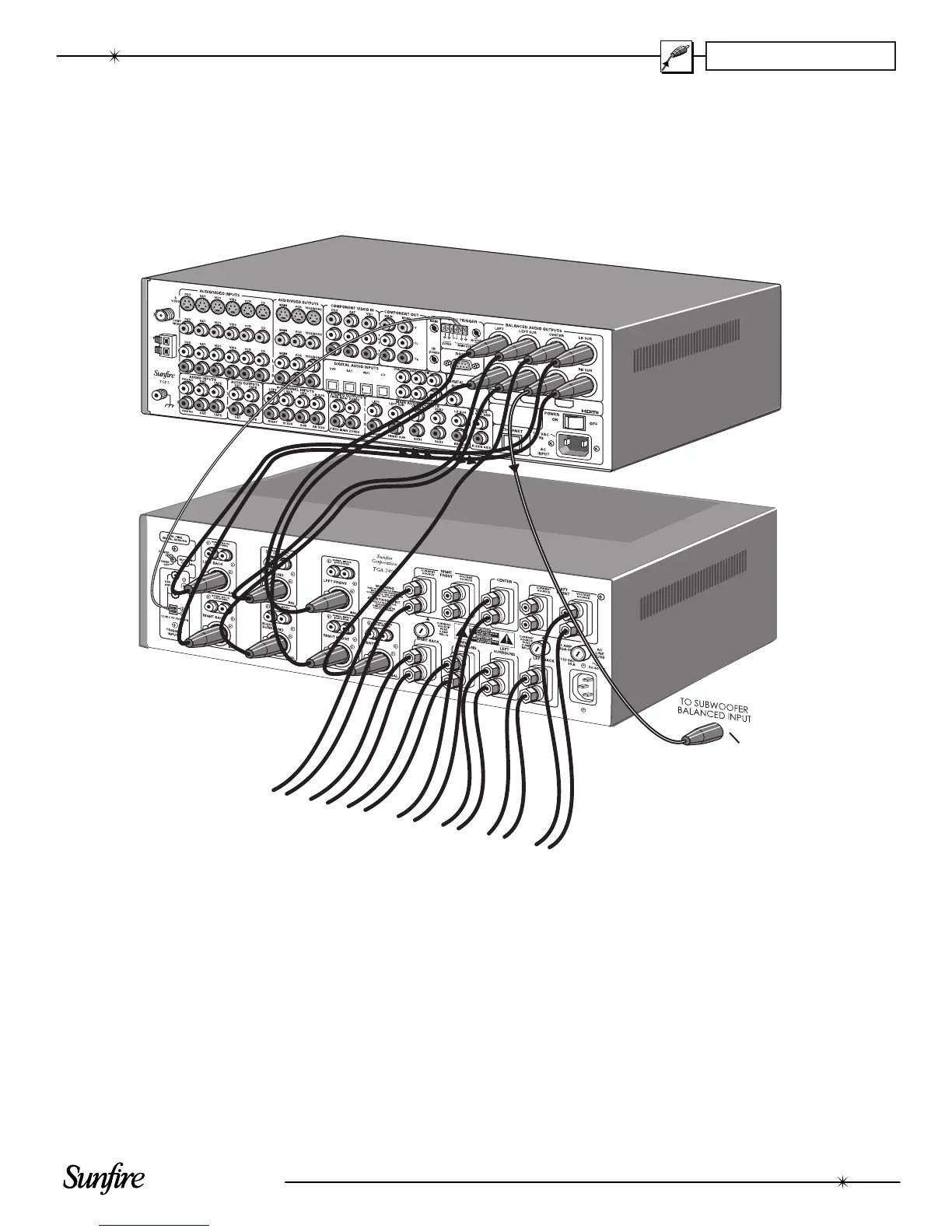

This diagram shows a Sunfi re
TGA-7400 seven-channel am pli fi er.
The TGP-5 side-axis outputs can be
connected to other amplifi ers, and its
subwoofer output can connect to a
powered subwoofer.
You can also use a Sunfi re TGA-
5400 or TGA-5200 amplifi er, which
have fi ve channels, or use separate
amplifi ers for each pair.
This diagram also shows the TGP-5
12 VDC trigger output connected to
the 12 VDC trigger input of the Sunfi re
amplifi er. The amplifi er automatically
turns on whenever the TGP-5 main
zone is turned on.
