Tape Player connections
The tape player’s output can be
connected to the TAPE or DAT inputs.
If you have two players, the TGP-5 will
au to mat i cal ly select the input which
has a signal present. The unused
deck must be turned off when the
other deck is playing.
The tape player can record the au-
dio from whichever source is selected,
but not from DAT to TAPE, or TAPE
to DAT. Use an external switchbox to
dub recordings.
play
record

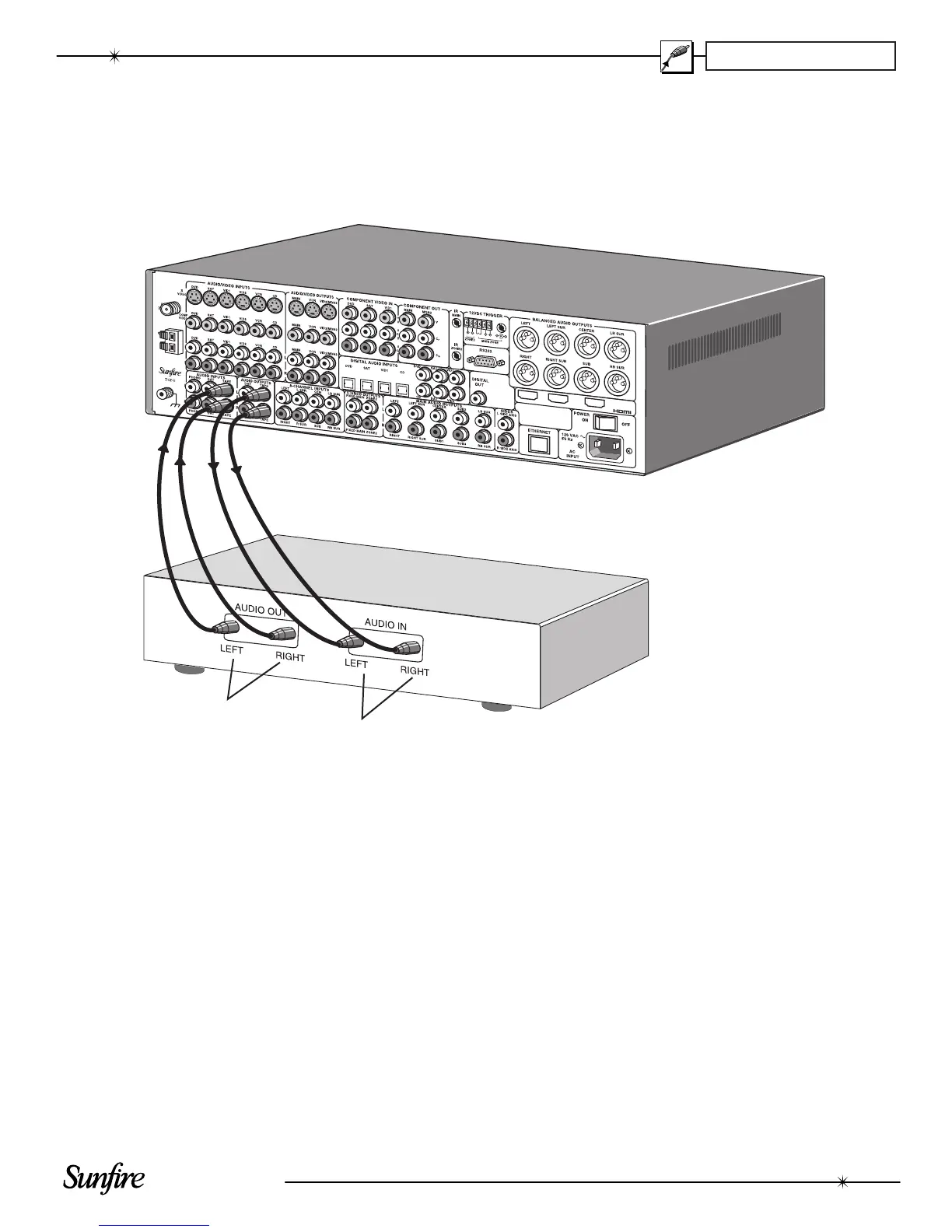

Analog audio signals (play)
From: Tape player audio outputs
To: TGP-5 Tape L/R audio inputs
Analog audio signals (record)
From: TGP-5 Tape L/R audio
output
To: Tape Player L/R audio
input
