Sunfire TGR-3 - Output and Zone 2 Connections

User's Manual
23
CHAPTER 2

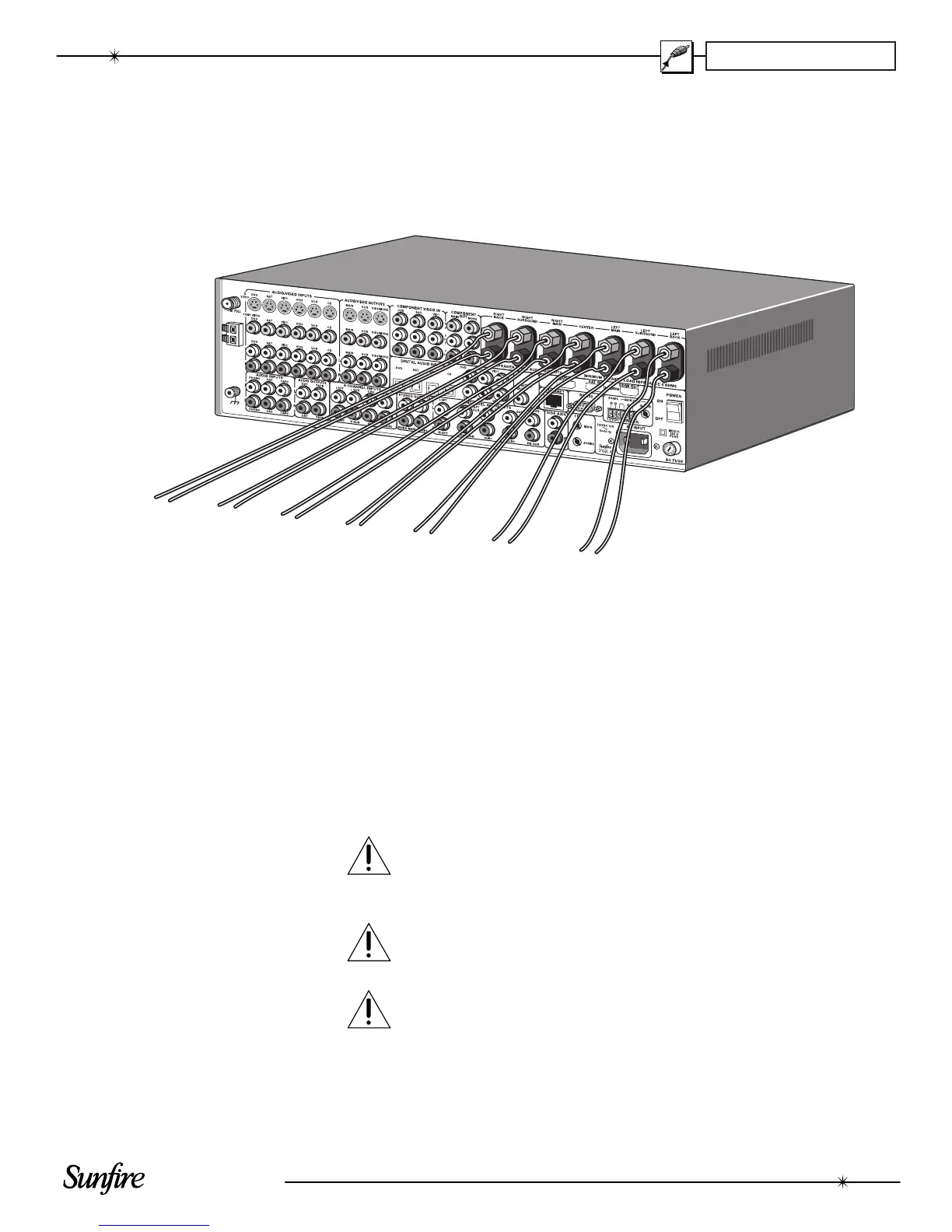

Output connections
TO RIGHT
BACK
SPEAKER
+
+
+
+
+
+
+
TO LEFT
SURROUND
SPEAKER
TO LEFT
MAIN
SPEAKER
TO CENTER
SPEAKER
TO RIGHT
MAIN
SPEAKER
TO RIGHT
SURROUND
SPEAKER
TO LEFT
BACK
SPEAKER
Speaker-Level Outputs
The TGR-3 speaker output posts
accept bare wire, speaker lugs,
dual-banana and single-banana con-
nectors. Use good quality speaker
connectors and speaker wire.
If you are using banana
plugs, make sure the TGR-3
output posts are fully tight-
ened by hand.
Always turn off the TGR-3
when you make speaker con-
nections.
It is very important to check
that the negative and positive
speaker wires do not touch.
This will prevent damage to the
TGR-3's internal amplifi ers.
Speaker-level audio signals
From: Receiver speaker outputs
To: Speaker inputs
The TGR-3 can be confi gured so
the surround back speaker outputs
power the surround back, side-axis,
or Zone 2 speakers. See page 41 for
more details.
The other fi ve speaker outputs are
fi xed, and connect to your front, cen-
ter and surround speakers.
Line-Level Outputs
The line-level audio outputs can be
connected to external power ampli-
fi ers and powered subwoofers. For
example, if you choose the surround
back speaker outputs to power your
surround back speakers, you could
use an external amplifi er to power
side-axis speakers, and a second
power amplifi er to power Zone 2
speakers.
