Note: The acrylic plates next to the bearing in the two wheels are of opposite faces,

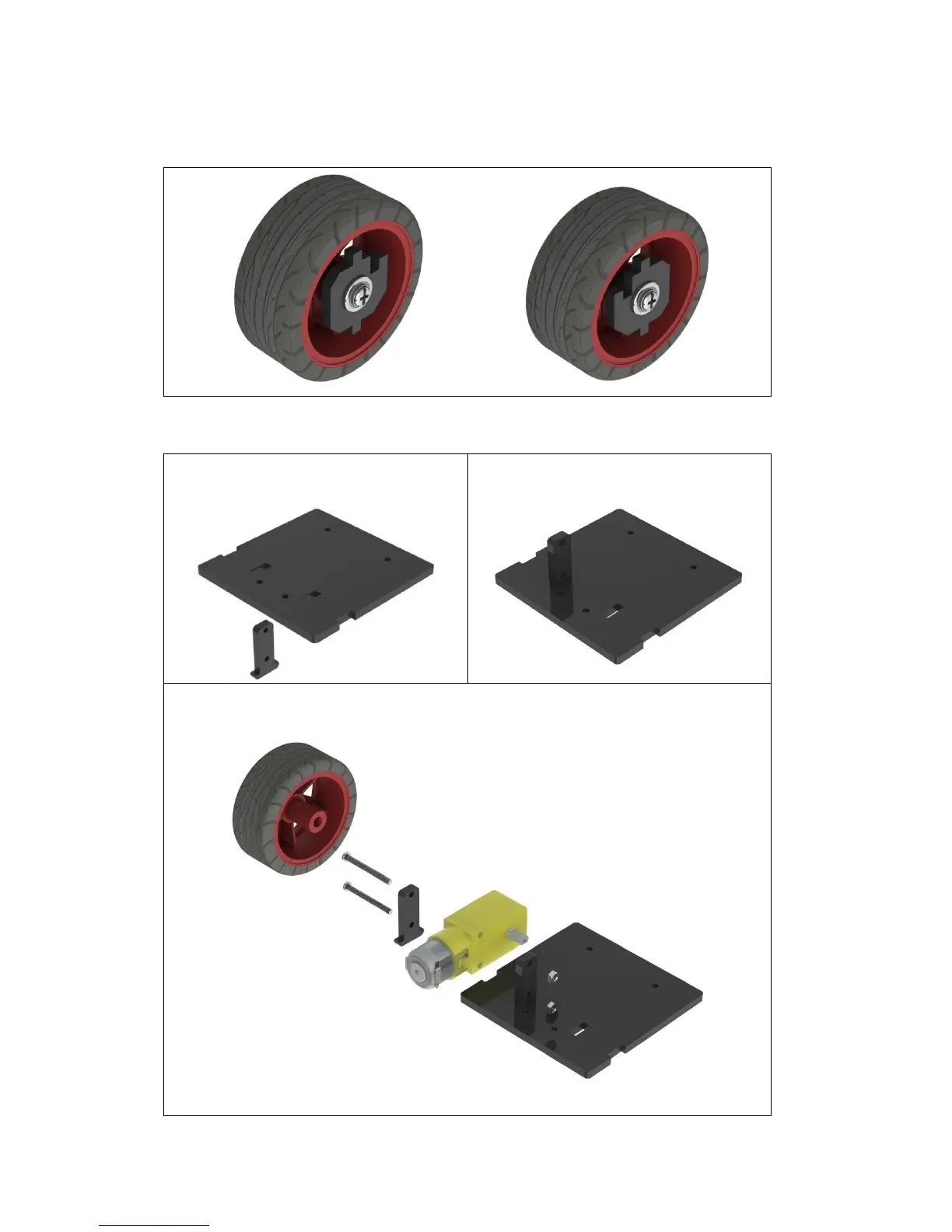

as shown in the following figure.
Back Half Chassis + Rear Wheels
a) Assemble the following two acrylic
plates
b) When completed, the assembly
should look like the figure below.
c) Assemble the gear reducer, the active wheel and following acrylic plates
with two M3*30 screws and M3 nuts.
