d) When completed, the assembly should look like the figure below.
a) Assemble the following two acrylic
plates
b) When completed, the assembly
should look like the figure below.

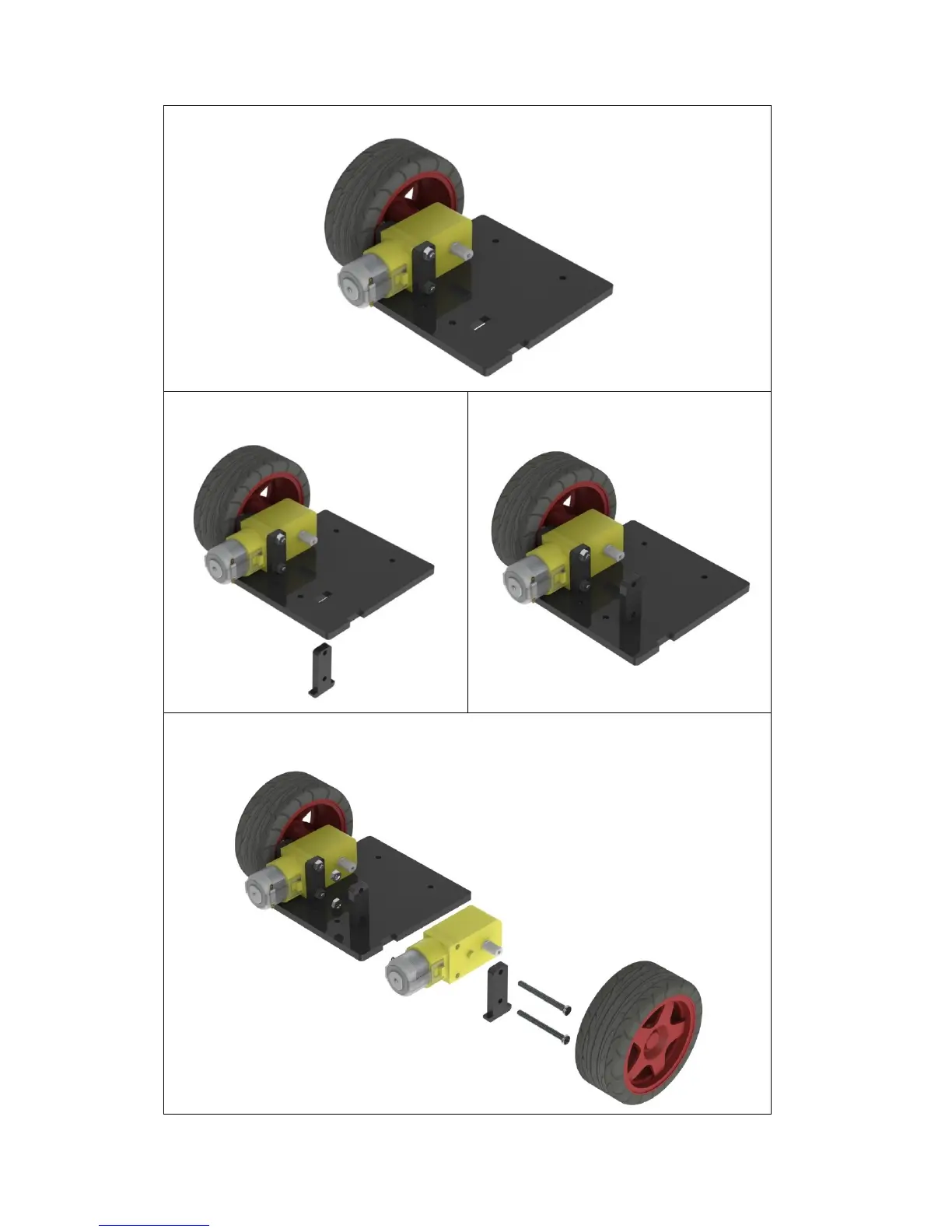

c) Assemble the gear reducer, the active wheel and the previously assembled
part with two M3*30 screws and M3 nuts.
