2. Mount Assembly
Plate + Servo Rocker Arm

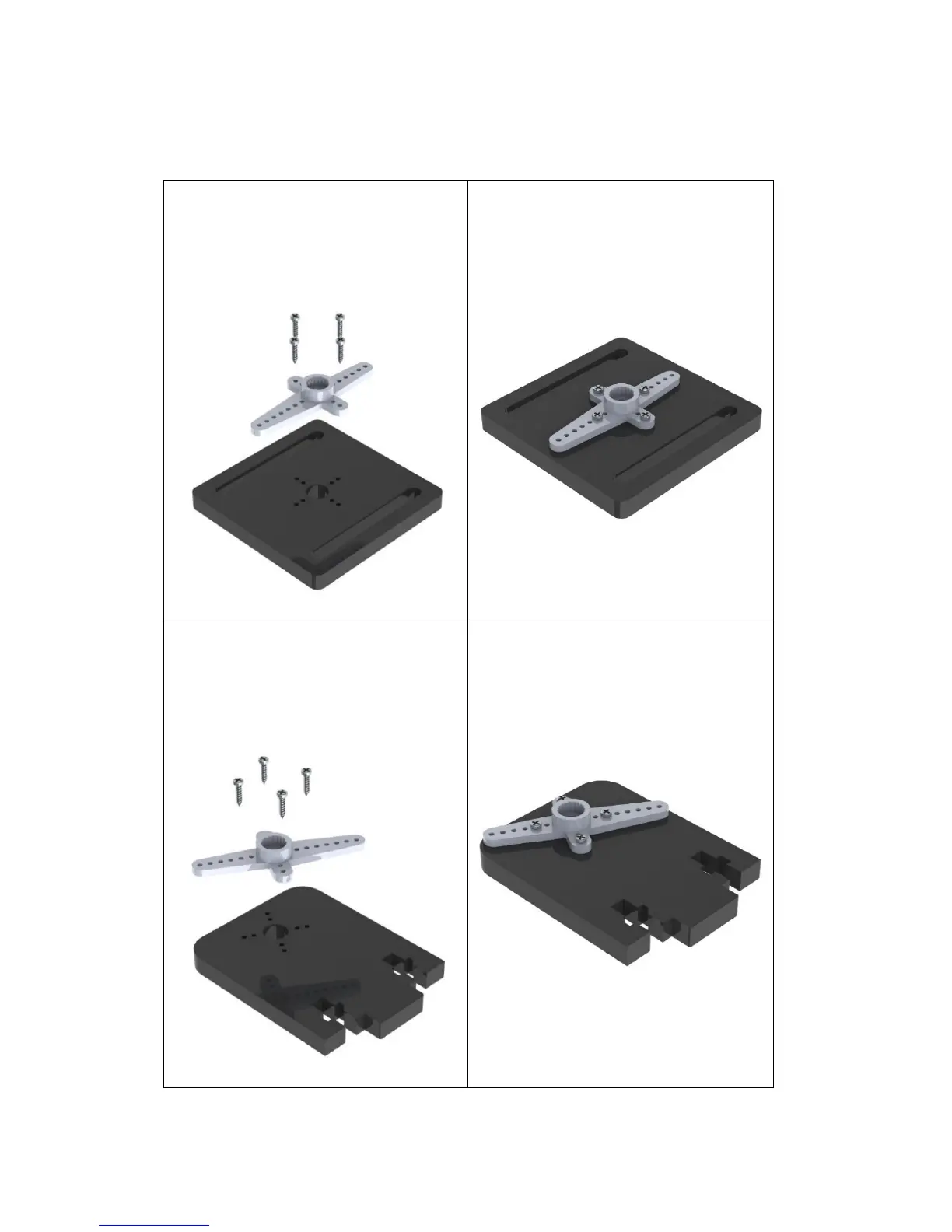

a) Connect the rocker arm of the
servo to the acrylic plate below
with 4 M1.2*5 screws.
 The rocker arm is packaged
together with the servo.
b) When completed, the assembly
should be like the figure below.
a) Connect the rocker arm of the
servo to the acrylic plate below
with four M1.2*5 screws.
 The rocker arm is packaged
together with the servo.
b) When completed, the assembly
should be like the figure below.
