Plate + Servo

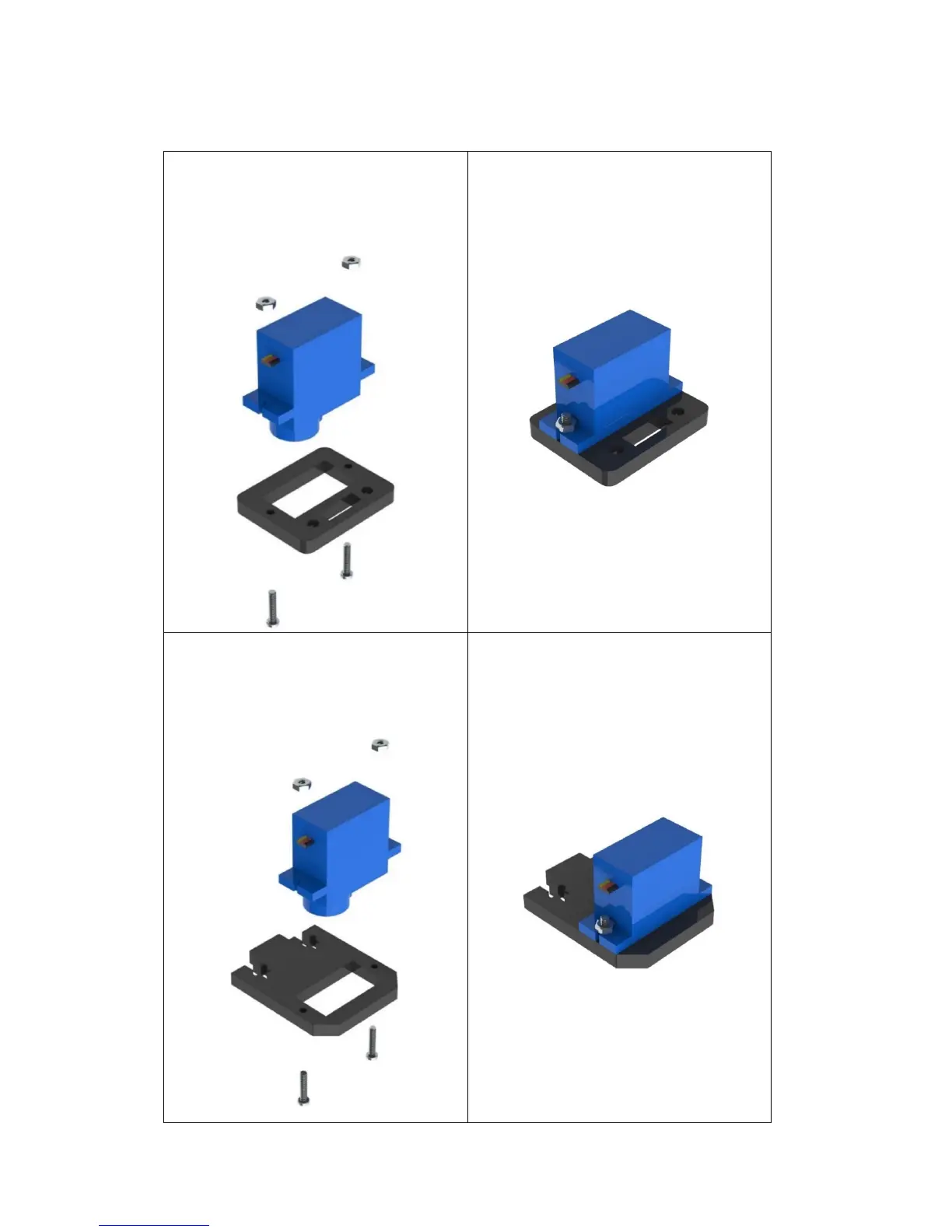

a) Connect the servo to the acrylic
plate below with two M2*10
screws and M2 nuts, and we name
it "pan servo".
b) When completed, the assembly
should look like the figure below.
a) Connect the servo to the acrylic
plate below with two M2*10
screws and M2 nuts and we name
it "tilt servo".
b) When completed, the assembly
should look like the figure below.
