SunFounder Smart Video Car Kit - Page 27

25

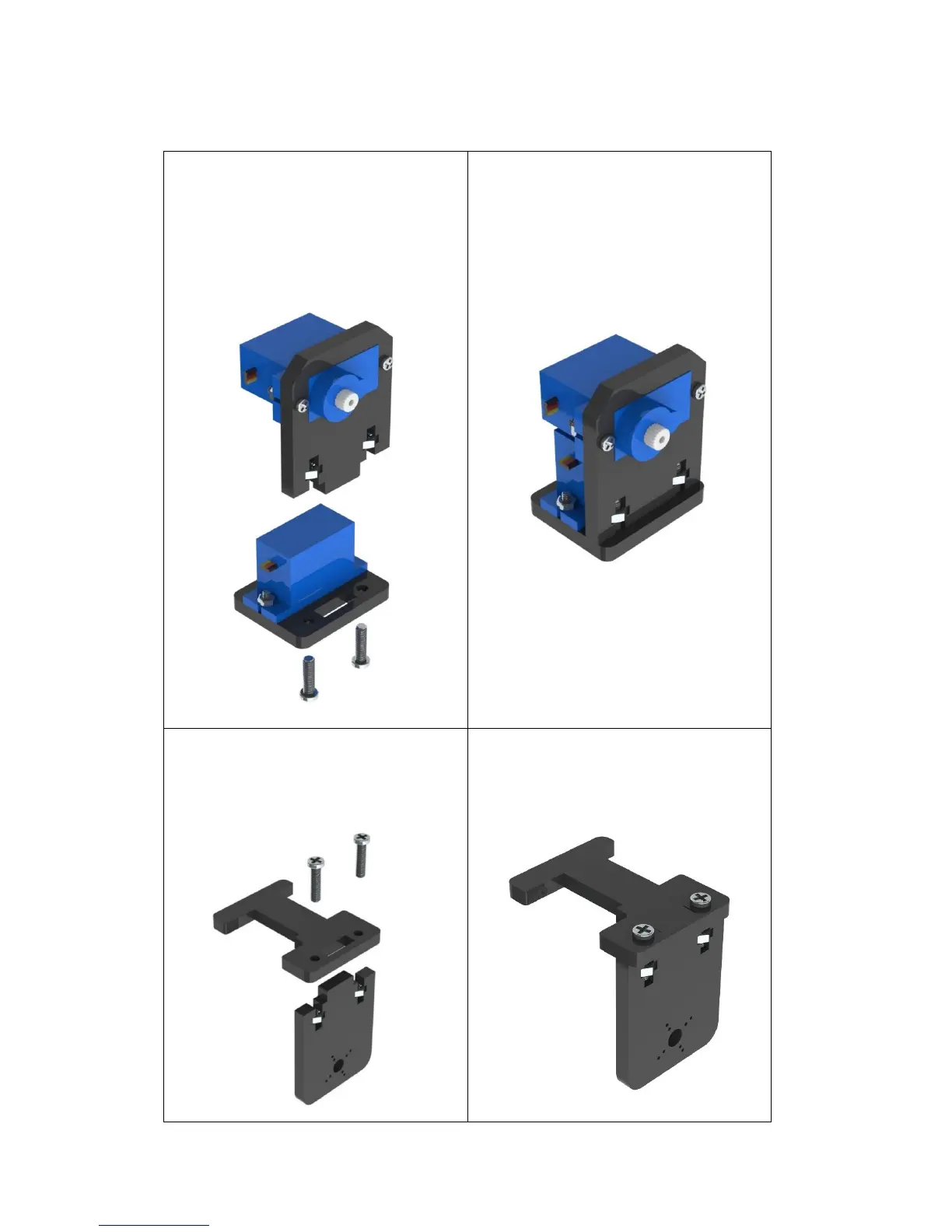

Plate + Plate
a) Connect the two plate parts
together with two M3*12 screws
and M3 nuts. The two plates
should be perpendicular to each
other.
b) When completed, the assembly
should look like the figure below.
a) Connect the two parts at a right
angle with two M3*12 screws and
M3 nuts.
b) When completed, the assembly
should look like the figure below.
