Sungrow PVS-16MH User Manual

User Manual 4 Mechanical Installation
17
806
669
4-Φ12 x 25

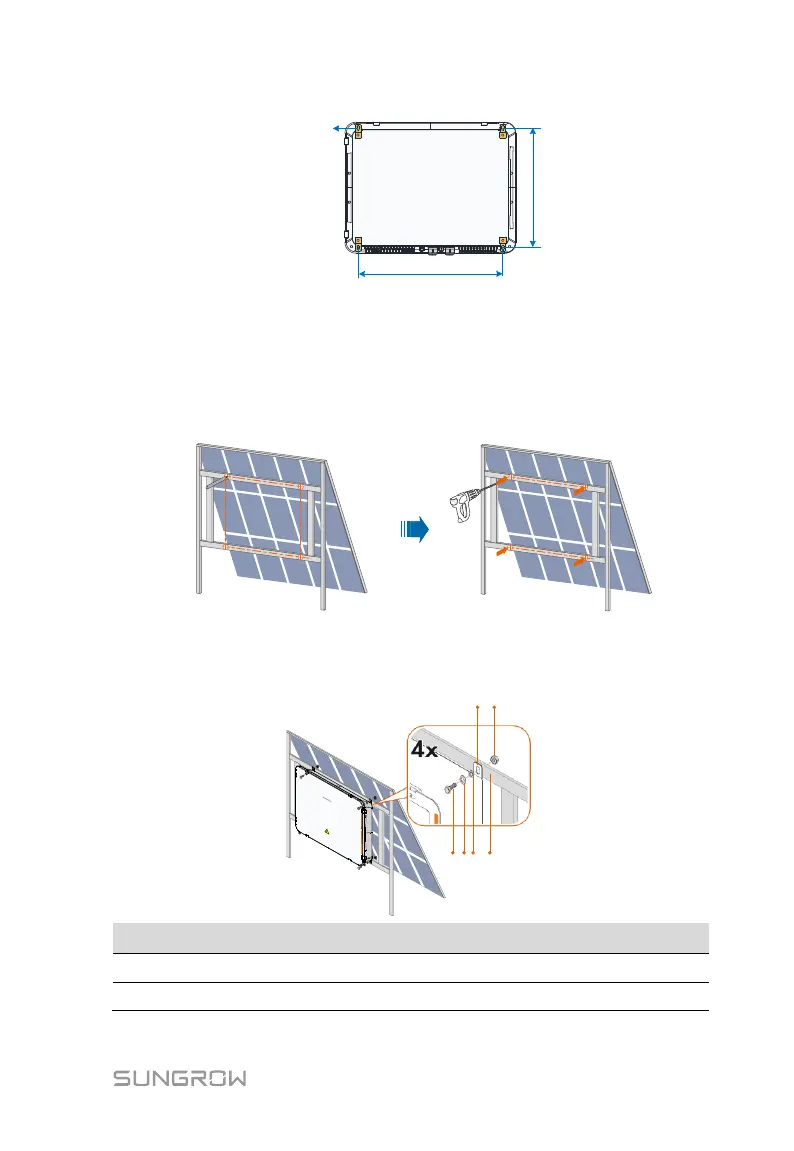

Fixing PVS to Installation Surface
On site, the PVS can be installed on the bracket or the back of the PV module.
Step 1 Mark positions on the back of the PV module according to the distance
between the hangers, and drill holes according to the marks.
Step 2 Anchor the PVS to the bracket in the sequence shown in the figure below,
where the recommended torque is: 51±0.7 N.m.
A B C
E
F
D
Item
Name
Description
A
M10 bolt
Beyond the scope of delivery
B
Flat washer
-
