Sungrow PVS-16MH - 4.5 Installing PVS

5 Electrical Installation User Manual
16
Vacuum cleaner
Heat shrink tubing
Heat gun
-

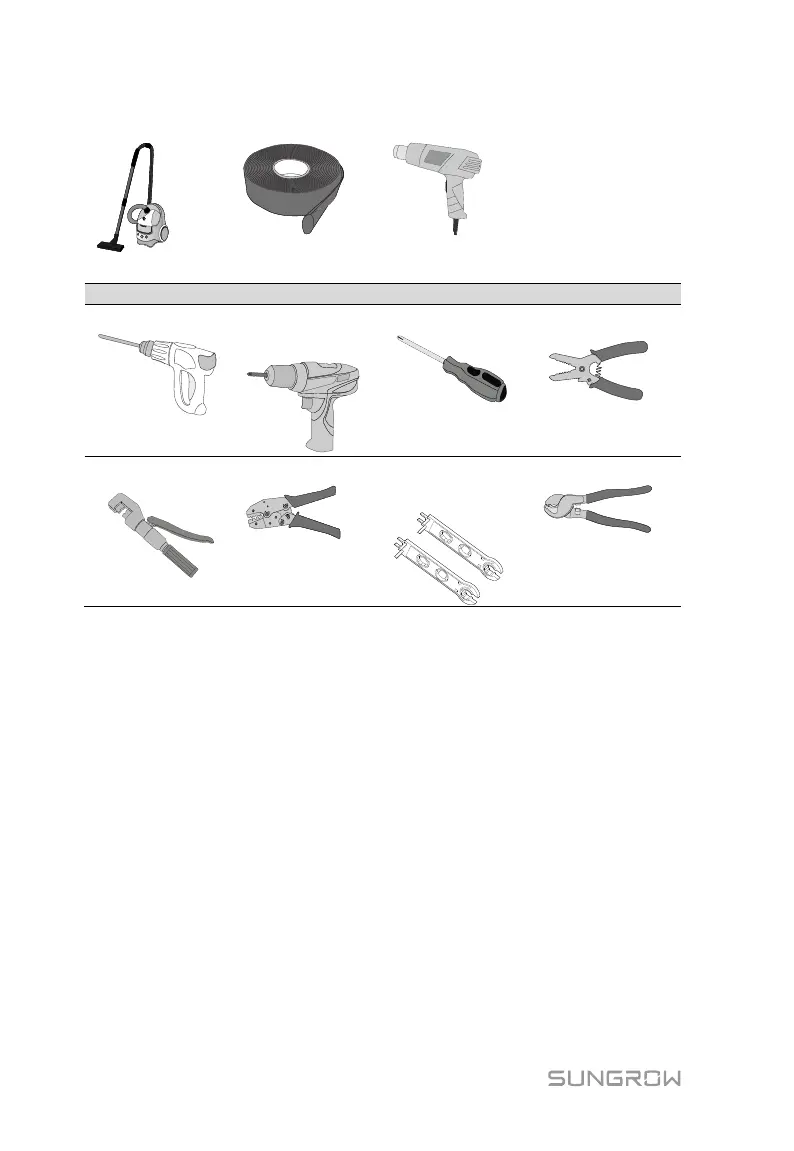

Installation tools
φ11 Hammer drill
M10 Electric
screwdriver
M10 Screwdriver
Wire stripper
Hydraulic pliers
Crimping tool
MC4 terminal
wrench
Wire cutter
4.5 Installing PVS
Overview
The PVS is fixed to the installation surface via the hangers in the scope of
delivery. Therefore, fix the hangers to the PVS on site.
Installing Hangers
Anchor the hangers to the back of the PVS by using supplied M8 x 16 bolt
assembly, as shown in the figure below.
