User Manual 5 Electrical Installation
29

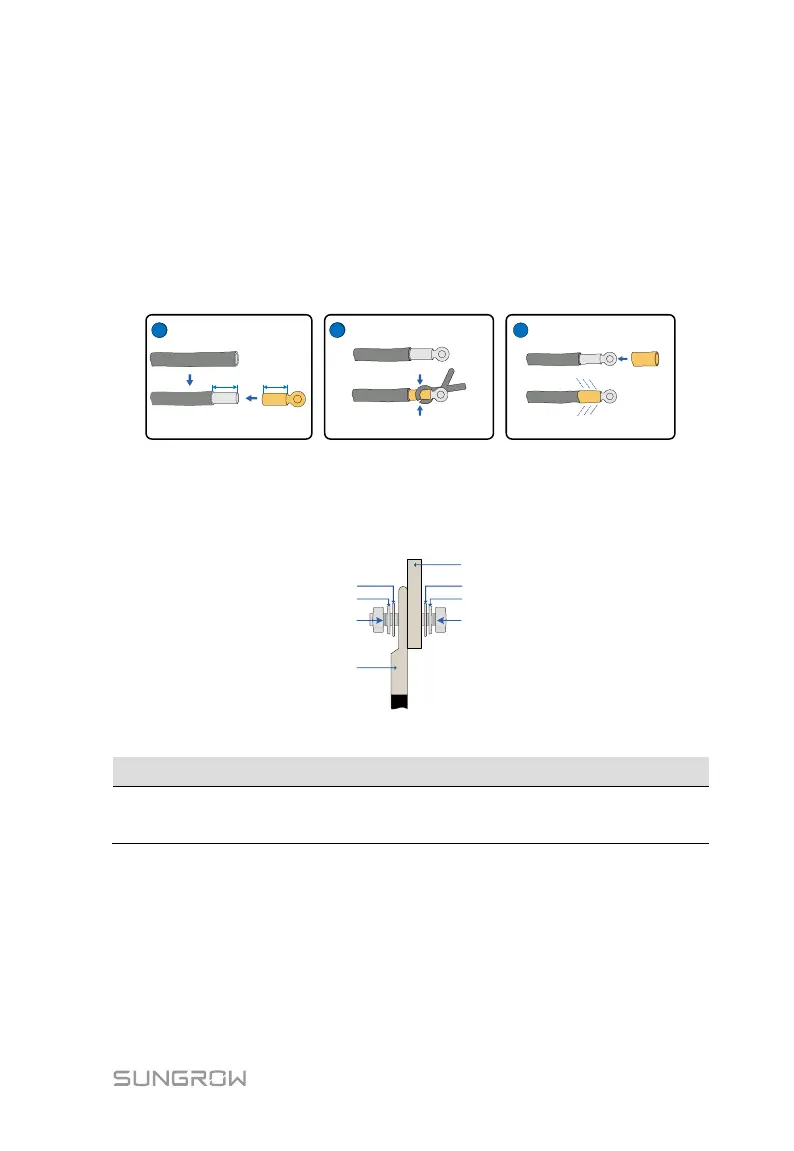

Wiring Procedure
Step 1 Insert the “DC+” cable through OUTPUT DC+ terminal. Enough
cable bending space should be ensured.
Step 2 Peel off the protective layer and insulating layer of the cable to expose
the copper core part of the conductor L 25mm, crimp the cable to the
appropriate DT terminal, and tighten it with a heat shrinkable sleeve.
L=D+5
D
3
2
1 21
Step 3 Secure the crimped DT terminal to the output terminal.
When copper wire is used for connection, the fixing method is as shown in the
following figure, and the tightening torque is 60 ~ 70N.m.
A
C
D
E
D
E
F
B
Fig. 5-5 Schematic of copper wire connection
A
B
C
D
E
F
Copper
bar
Copper
terminal
M12 bolt
Flexible
gasket
Flat
gasket
Nut
When aluminum wire is used for connection, the fixing method is shown in the
following figure, and the tightening torque is 60 ~ 70N.m.
