Sungrow SBR Series User Manual

GD_202111_Sungrow SBR HV Battery Installation Quick Guide with SHRT _V3.0
Page 6 of 6
© Sungrow Australia Group Pty. Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.

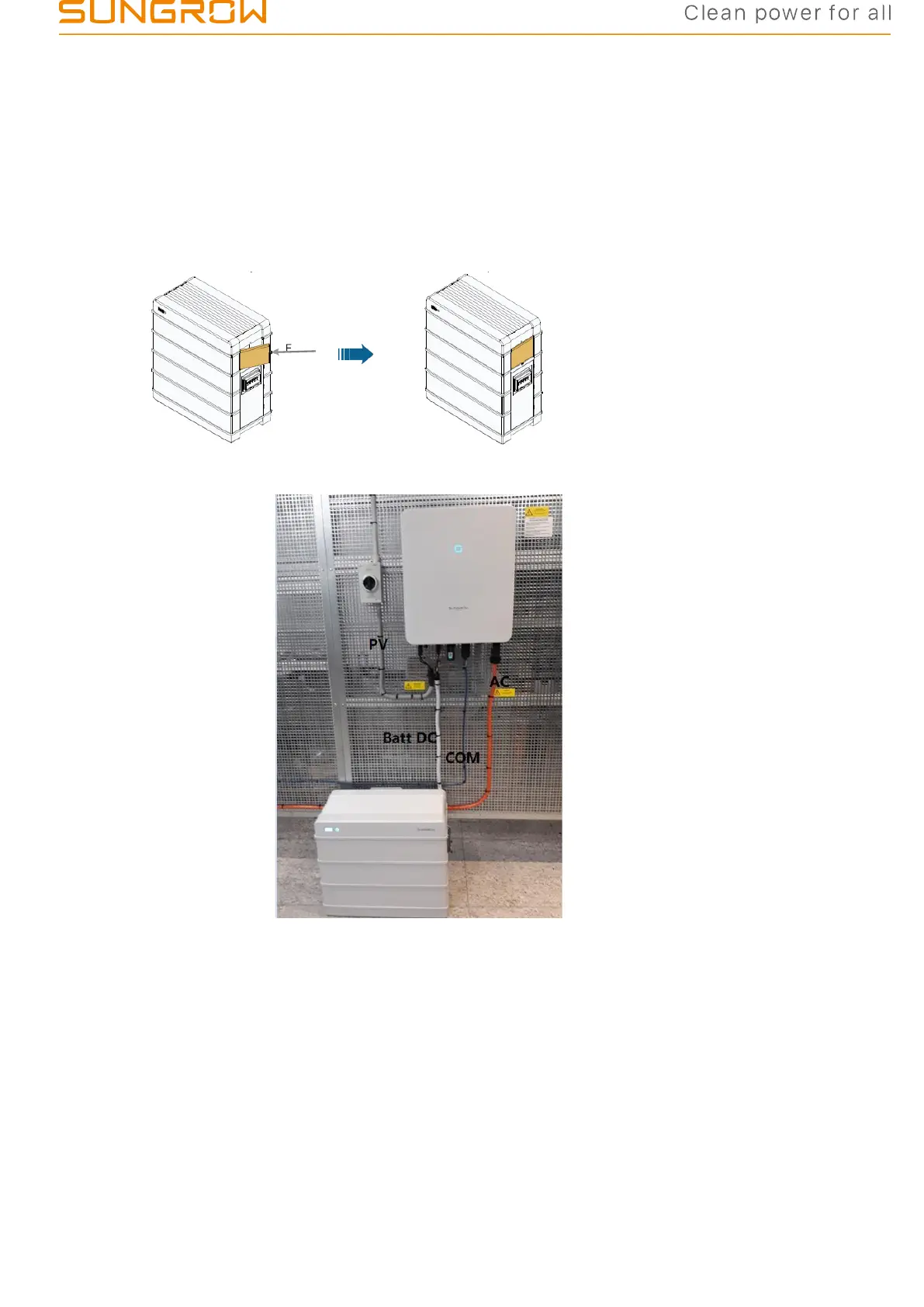

8. Put on the front cover
– The battery with 3 modules (SBR096) does not need the cover.
– The battery with 4 modules (SBR128) needs 1 front cover;
– The battery with 5 modules (SBR160) needs 2 front covers;
⋮
– The battery with 8 modules (SBR256) needs 5 front covers;
9. A completed installation is shown below.

Sungrow SBR Series Specifications

General

Battery Type	Lithium iron phosphate (LFP)
Nominal Voltage	51.2 V
IP Rating	IP65
Cooling	Natural convection
Operating Temperature Range	-10°C to 50°C
Communication	CAN
Protection Level	IP65
Cycle Life	>6000 cycles (70% EOL)
Communication Interface	CAN
