Sungrow SG15KTL-M User Manual

18

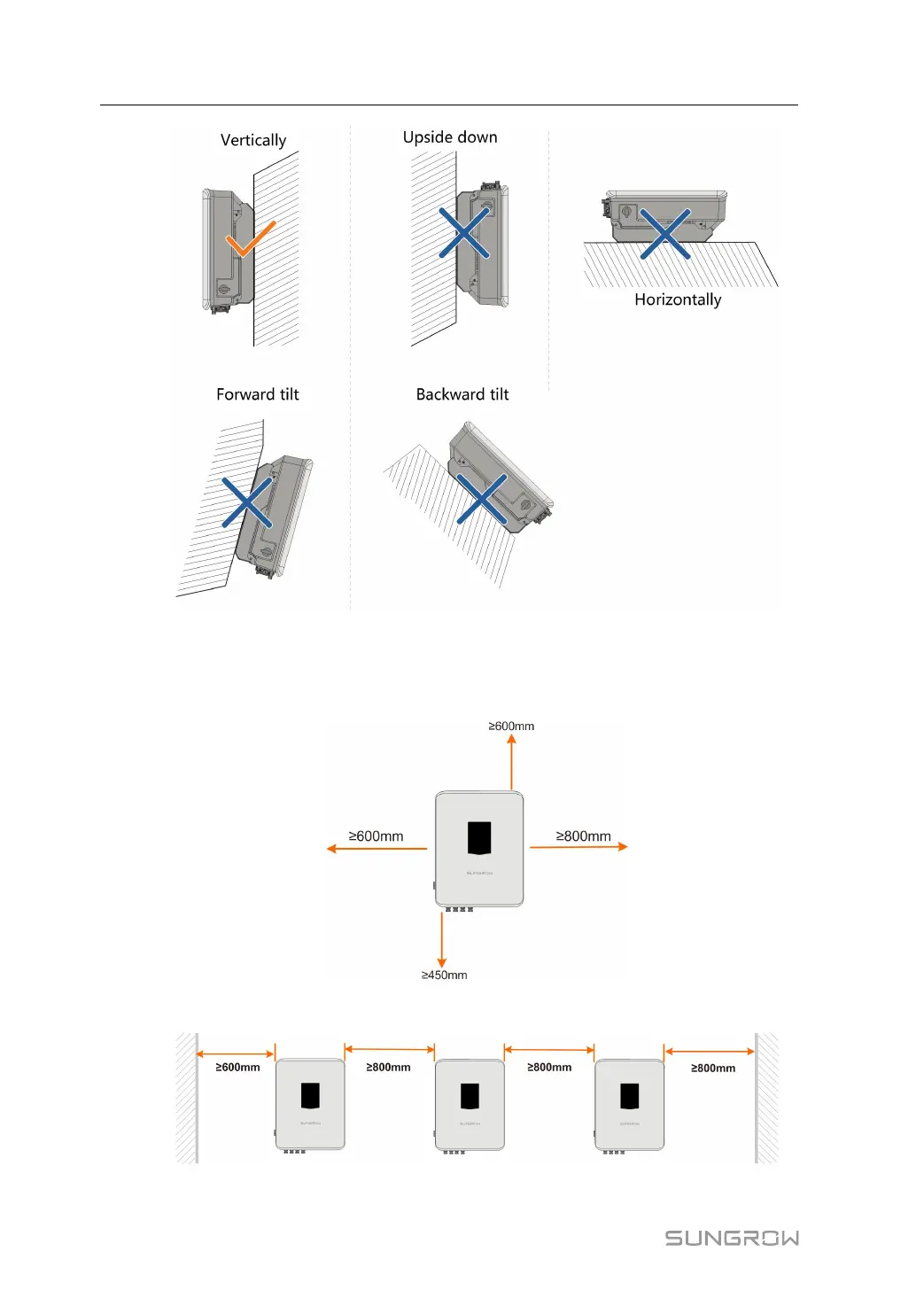

4.2.4 Installation Clearance Requirements
• Reserve enough clearance around the inverter to ensure sufficient space for heat
dissipation.
• In case of multiple inverters, reserve specific clearance between the inverters.
4 Mechanical Mounting User Manual

Sungrow SG15KTL-M Specifications

General

Max. DC Input Voltage	1100 V
Input Voltage Range	200 V - 1000 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPT	2
Max. DC Input Current per MPPT	26 A
AC Voltage Range	310 V - 480 V
Rated Grid Frequency	50 Hz / 60 Hz
Power Factor at Rated Power	> 0.99
THDi	< 3%
Protection Class	IP65
Rated Output Power	15 kW
Max. AC Apparent Power	16.5 kVA
Rated AC Voltage	400 V
DC Switch	Yes
Operating Temperature Range	-25 °C ~ +60 °C
