10.14 Communication Parameters Setting
The inverter can be remotely monitored and controlled. The communication
parameters of the inverter should be configured before connecting to upper
computer as follows:
10.14.1 Address Setting
2009/11/18 18:35
4.000 kW
15.6 kWh
4976 kWh
Run
State
P-ac
E-tot
E-day
20
40
60
80
100
814
20
P(%)
t
0

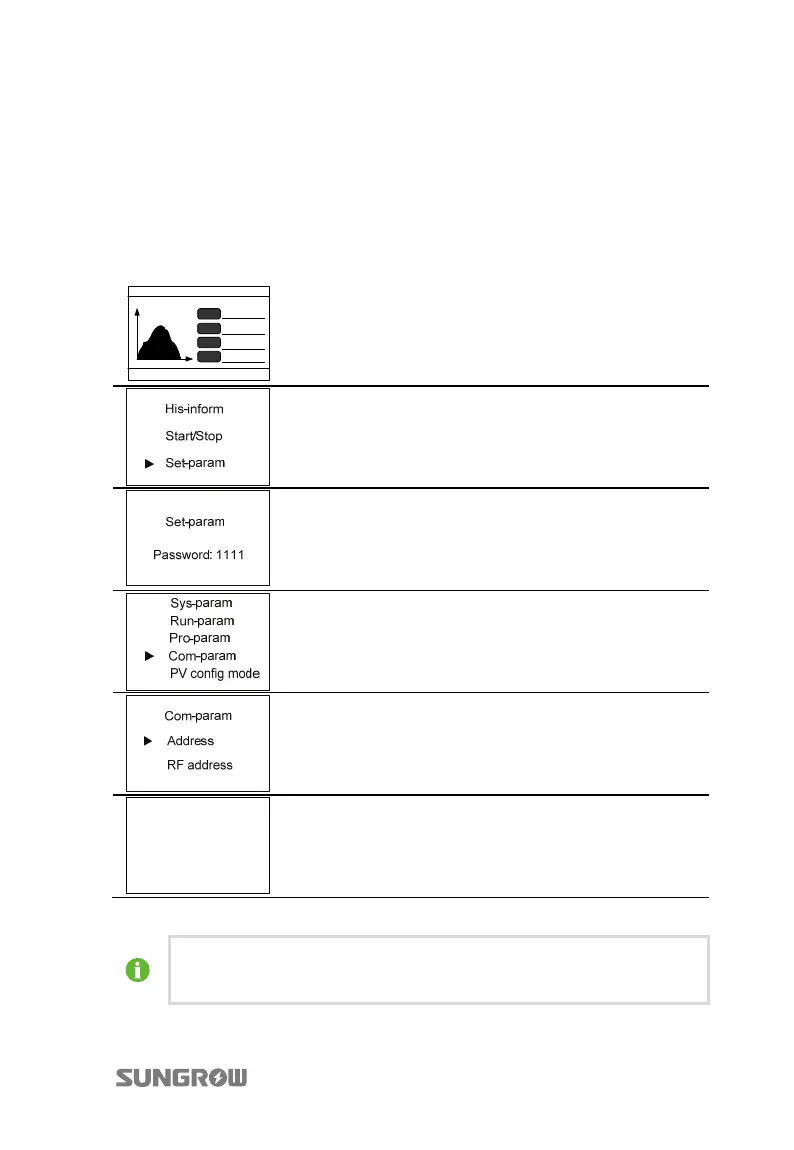

1. Long Press “ENTER
/
►
”
to enter into the general
control screen.
2. Short press “ESC
/
”
▼ to navigate the
arrow-pointer to “Set-param”.
3. Long press “ENTER/►” to enter into its
sub-screen.
4. Short press “ENTER
/
►
”
to move right and short
press “ESC/ ”▼ to set the correct password 1111
5. Long press “ENTER/►” to confirm the command.
6. Short press “ESC
/
”
▼ to navigate the
arrow-pointer to “Com-param”.
7. Long press “ENTER/►” to enter into its
sub-screen.
8. Short press “ESC
/
”
▼ to navigate the
arrow-pointer to “Address”.
9. Long press “ENTER/►” to confirm the setting.
Com-param
Address: 001
10. Short press “ENTER
/
►
”
to move right and short
press “ESC/ ”▼ to set the address.
11. Long press “ENTER/►” to confirm the setting.
The range of communication address is from 1 to 247.
The Baud rate of serial communication is 9600.
