52

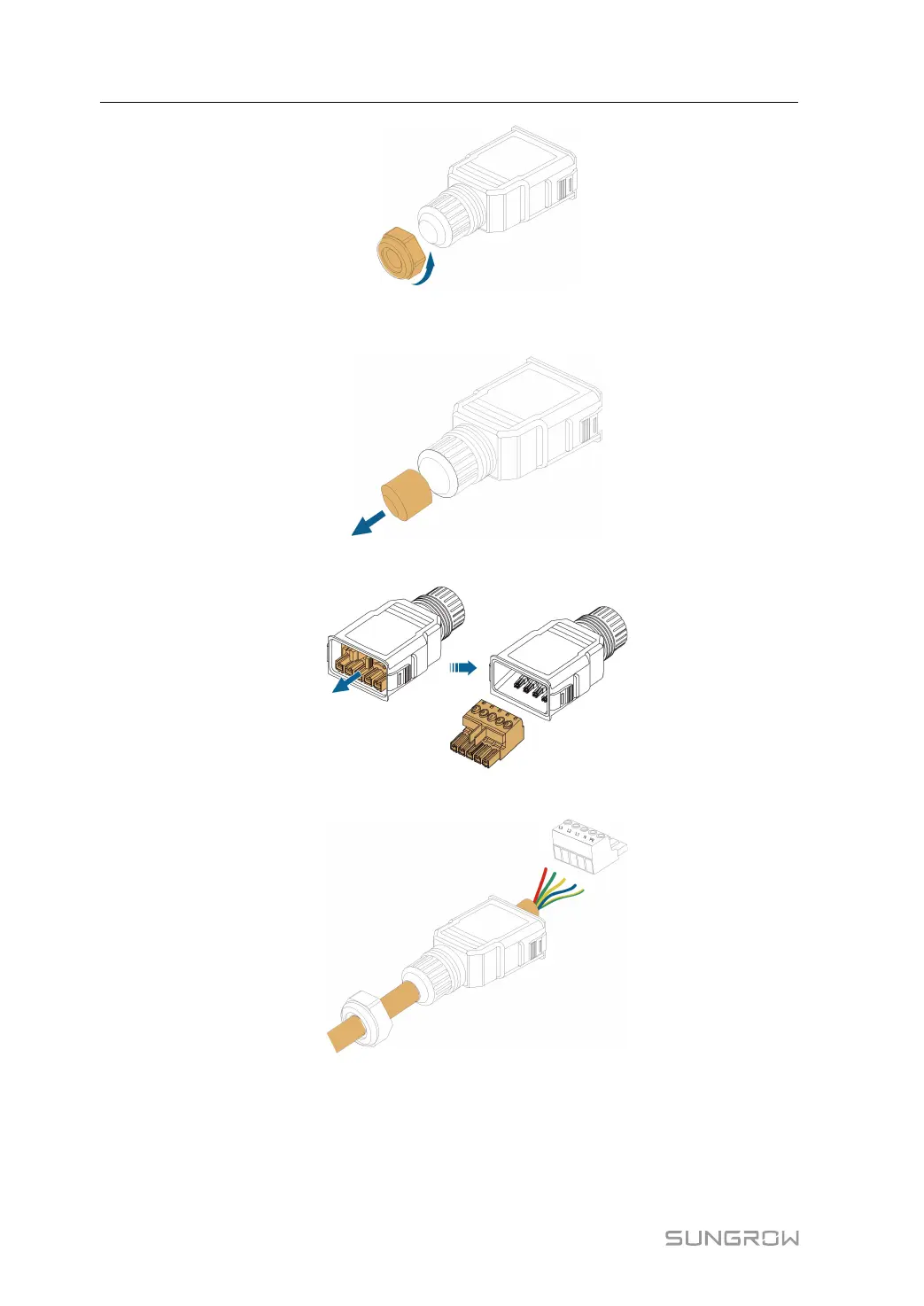

step 2 (Optional) Remove the inner sealing ring if the cable diameter is between 19 mm ~ 25 mm.
Otherwise skip this step.
step 3 Take out the terminal plug from the housing.
step 4 Thread the AC cable of appropriate length through the swivel nut and the housing.
step 5 Strip 80 mm ~ 90 mm of the cable jacked and 12 mm of the wire insulation.
6 Electrical Connection User Manual
