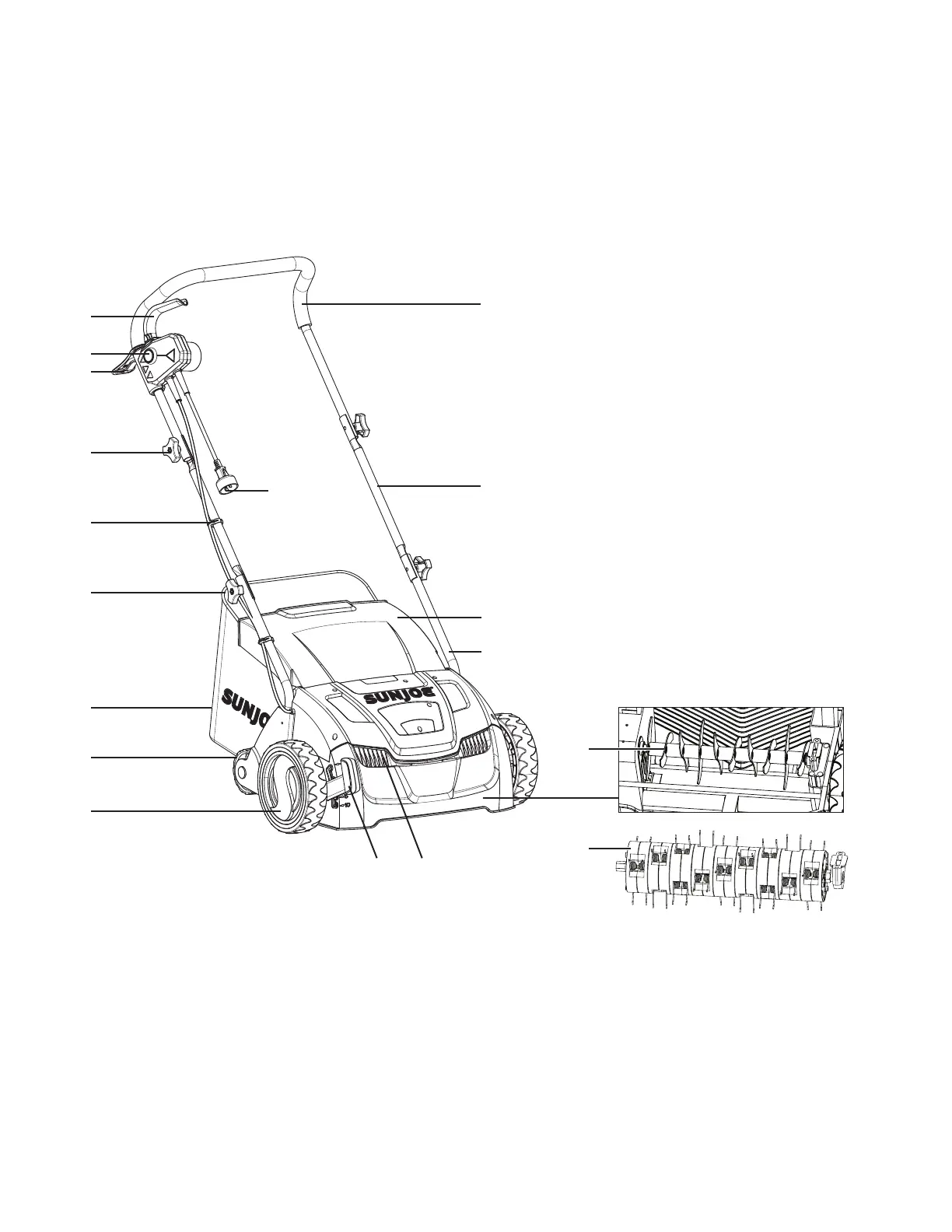

Know Your Electric Scarier + Dethatcher
Read the owner’s manual and safety instructions carefully before operating the scarier + dethatcher. Compare the illustration
below to the dethatcher in order to familiarize yourself with the location of the various controls and adjustments. Save this manual
for future reference and reread it prior to each dethatching session.
1. ON/OFF switch lever
2. Safety lock button
3. Extension cord restraint holder
4. Upper handle
5. Upper handle knob and bolt (2)
6. Appliance cord
7. Middle handle bar (2)
8. Cable clip (2)
9. Lower handle knob and bolt (2)
10. Thatch bag cover
11. Lower handle bar (2)
12. Thatch collection bag
13. Rear wheel (2)
14. Front wheel (2)
15. Raking depth adjustment lever
16. Air vent
17. Scarifying cylinder
18. Dethatcher cylinder
Technical Data
Motor ..............................................................................12-amp
Rated Voltage ........................................................120V ~ 60 Hz
No Load Speed .......................................................... 2990 rpm
Raking Width ..................................................... 12.6 in. (32 cm)
Scarifying Depth* .............. -0.4 inch – 0 inch (-10 mm – 0 mm)
Raking Depth* ...................... 0 inch – 0.4 inch (0 mm – 10 mm)
Depth Adjustment ..................................................... 5-position
Thatch Bag Capacity .............................................. 8 gal (30.3 l)
Dethatcher Cylinder ........................ 27 spring steel raking tines
..............................................................................(1.6 mm thick)
Scarier Cylinder ............................................. 20 slicing blades
Wheel Size ......................... 8 in. (20 cm) front 4 in. (10 cm) rear
Net Weight ........................................................... 24 lbs (11 kg)
*Note: The negative raking depth indicates that the tines/blades are raking below the horizon (i.e. penetrating the soil layer).
