NOTE: Do not tighten the knobs completely until assembly is complete.

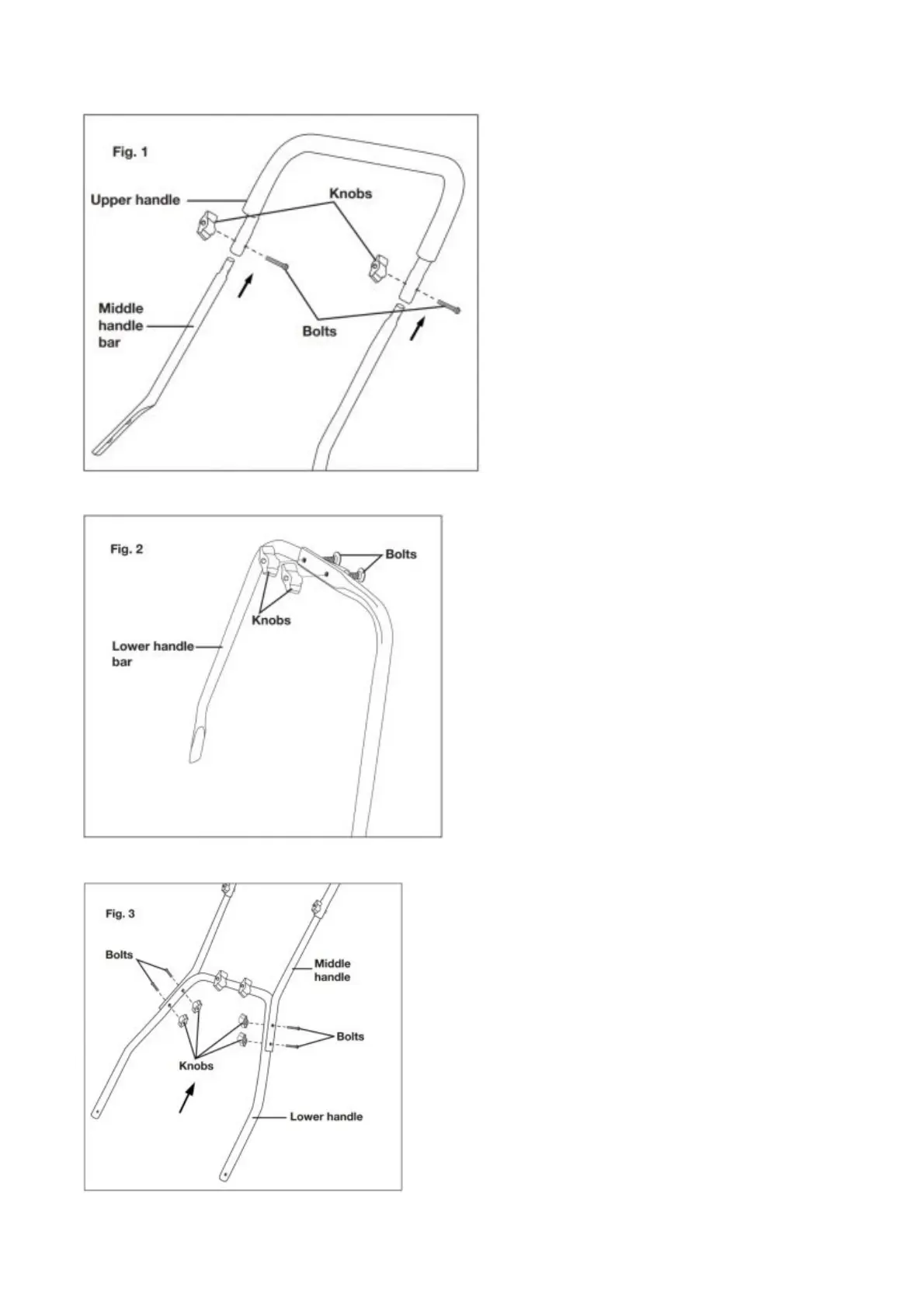

1. Secure the two middle handle bars to the upper handle using the first set of knobs and bolts provided. Tighten the knobs on each
side to ensure a secure fit (Fig. 1).
2. Connect the two pieces of the lower handle bars using the second set of knobs and bolt provided. Tighten the knobs on each side
to ensure a secure fit (Fig. 2).
3. Attach the upper and middle handle assembly to the lower handle using the remaining knobs and bolts provided. Tighten the knobs
on each side to ensure a secure fit (Fig. 3).
4. After assembling the handle, line up the holes at the lower end of each handle arm with the short posts that extend out from the
side plates of the mower base (Fig. 4).
To Next Page
