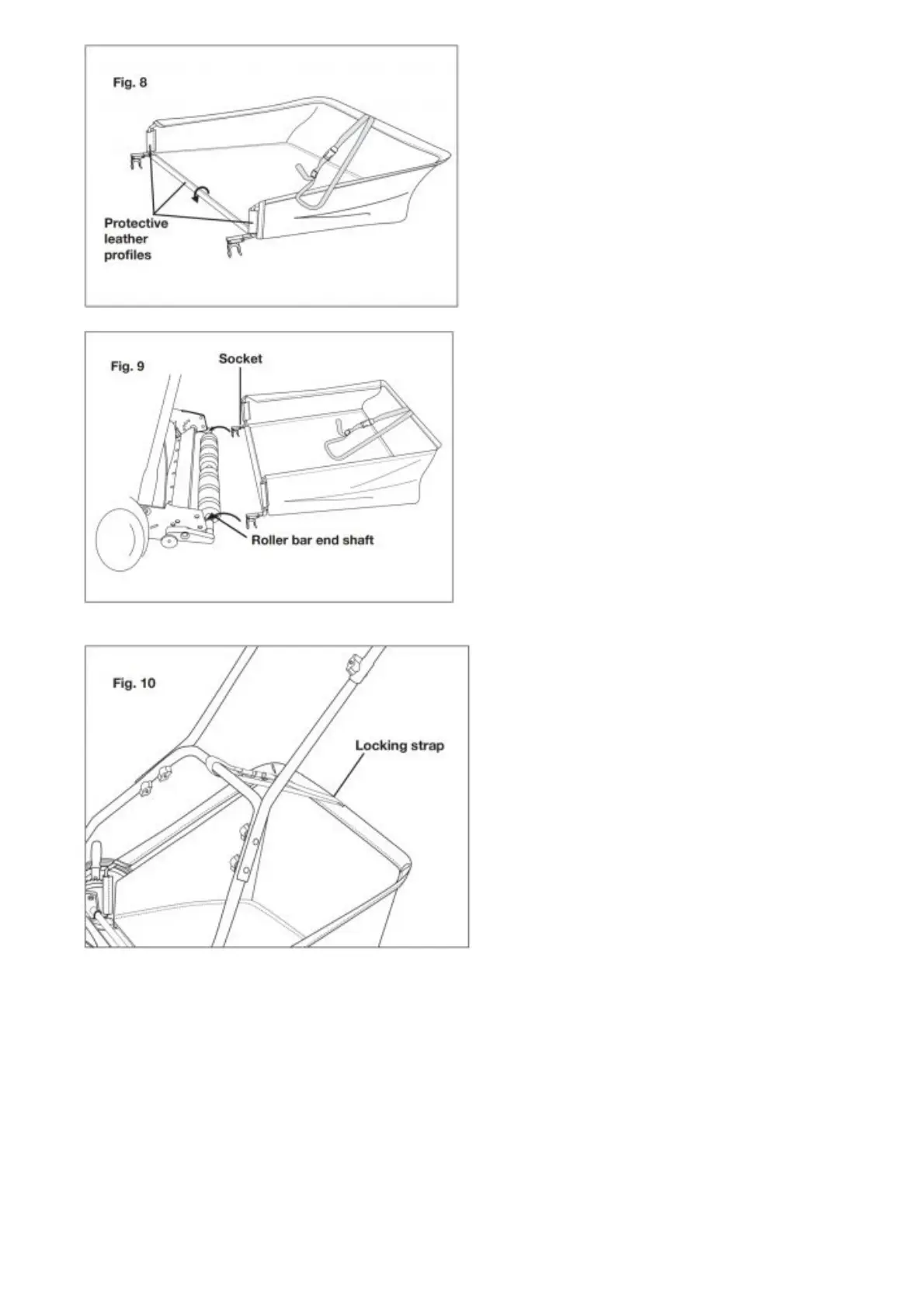

3. Hook the assembled grass catcher onto the mower by connecting the sockets to both ends of the roller bar end shaft (Fig. 9).
4. Secure the locking strap on the grass catcher to the center bar on the lower handle of the mower. Adjust the strap to an
appropriate height so that the grass catcher does not rub against the ground while mowing or transporting the unit (Fig. 10).
NOTE: If you have any questions, please call the Snow Joe® + Sun Joe® customer service department at 1-866-SNOWJOE (1-
866-766-9563) for assistance.
Operation
Cutting height adjustment
1. The cutting height of the 16″ (40.6 cm) reel mower can be adjusted from 0.47″ to 1.57″ (12 mm to 40 mm) using the 4 position
settings on the roller assembly.
2. To adjust the cutting height, pull out the height adjustment knobs on both sides of the reel mower frame and rotate the knobs to the
desired setting (Fig. 11).
