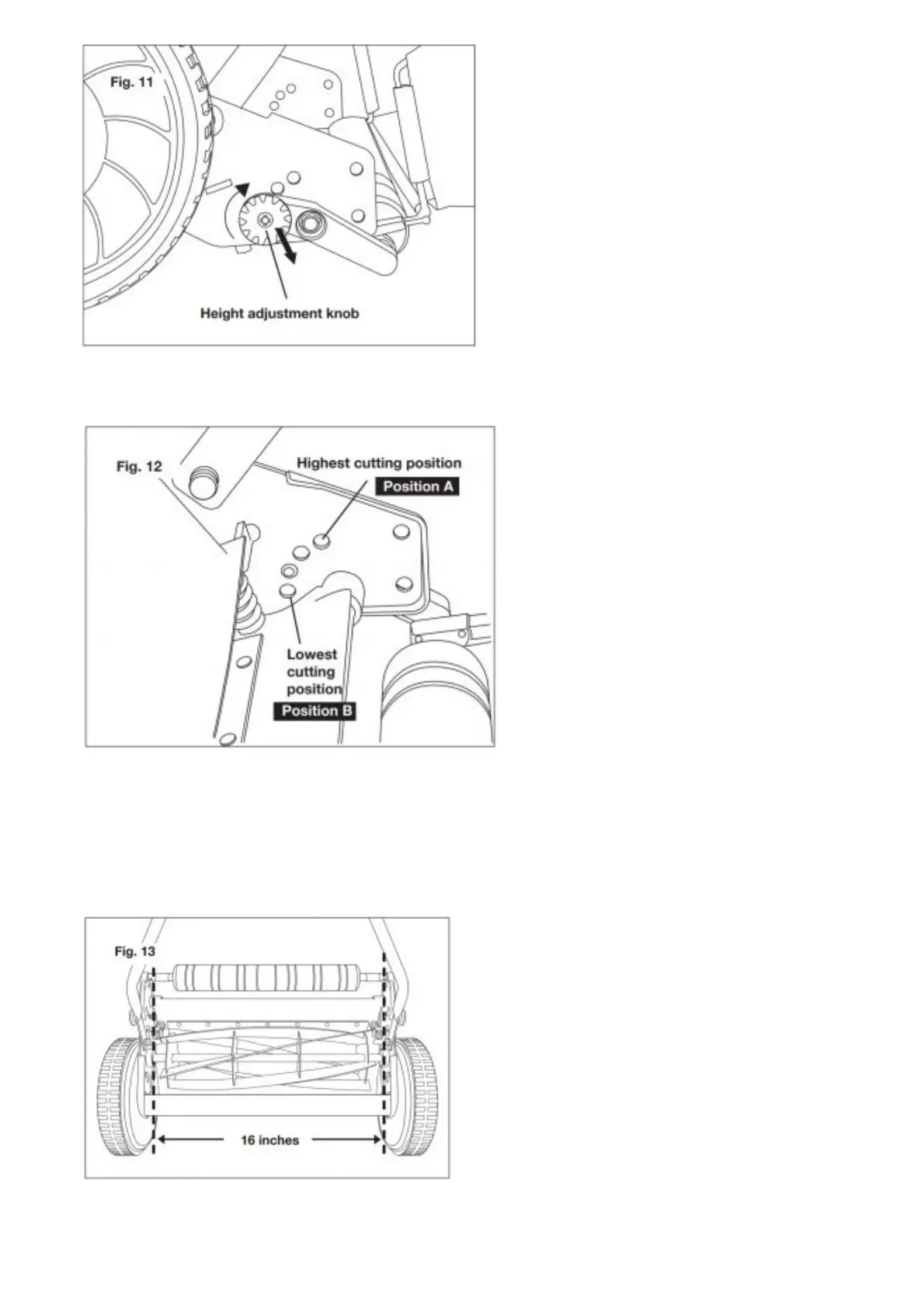

3. To adjust the reel to the highest cutting position, place the adjustment knobs through the top hole (position A) located on the side
of the reel mower frame (Fig. 12).
4. To adjust the reel to the lowest cutting position, place the adjustment knobs through the bottom hole (position B) located on the
side of the frame (Fig. 12).
5. Other cutting heights are achieved by moving the adjustment knobs to the settings between the highest and lowest positions.
4-Position Height Adjustment:
1. Low: 0.47 in. (12 mm)
2. Medium: 0.94 in. (24 mm)
3. Medium: 1.34 in. (34 mm)
4. High: 1.57 in. (40 mm) The cutting height tolerance is +/- 0.12 in. (3 mm).
6. Align the cutting path indication arrow with the previously cut path (Fig. 13).
NOTE: The width of the reel mower’s actual cut is indicated below. Do not use the mower’s wheels as a reference point for the
grass cut line.
Ensuring a clean cut
WARNING! The steel blades are extremely sharp. To avoid injury, do not touch the blades while making adjustments. Misalignment of
