6. To connect the spray wand with the trigger gun, press
the wings of the spray wand into the slot of the trigger
gun, then twist counterclockwise until the 2 parts are
completely locked together (Fig. 6).
7. Connect the high-pressure hose to the trigger gun. Twist
to secure the connection (Fig. 7).
8. Connect the other end of high-pressure hose to the water
outlet on the washer and tighten securely (Fig. 8).
mWARNING! Keep hose away from sharp objects.
Bursting hoses may cause injury. Examine hoses regularly and
replace if damaged. Do not attempt to mend a damaged hose.
9. Connect the garden hose adapter (female coupler) to
the water inlet of the pressure washer, then thread your
garden hose (male end) into the garden hose adapter
(Fig. 9). The garden hose must have an internal
diameter of at least 13 mm (1/2 in.) and must be
reinforced.
The water supply must be at least equal to the washer
delivery capacity.
NOTE: The machine is not suitable for connection to the
potable water main.
10. Attach garden hose to water supply (Fig. 10).
mWARNING! Do not connect to potable water system.
mWARNING! If connection is made to a potable water
system, the system shall be protected against backow.
mWARNING! The intake water temperature must not
exceed 104ºF/40ºC. The water supply must not exceed
0.7 MPa.
mCAUTION! The washer must only be used with clean
water; use of unltered water containing corrosive chemicals
will damage the washer.
Operation
Trigger gun
Spray wand

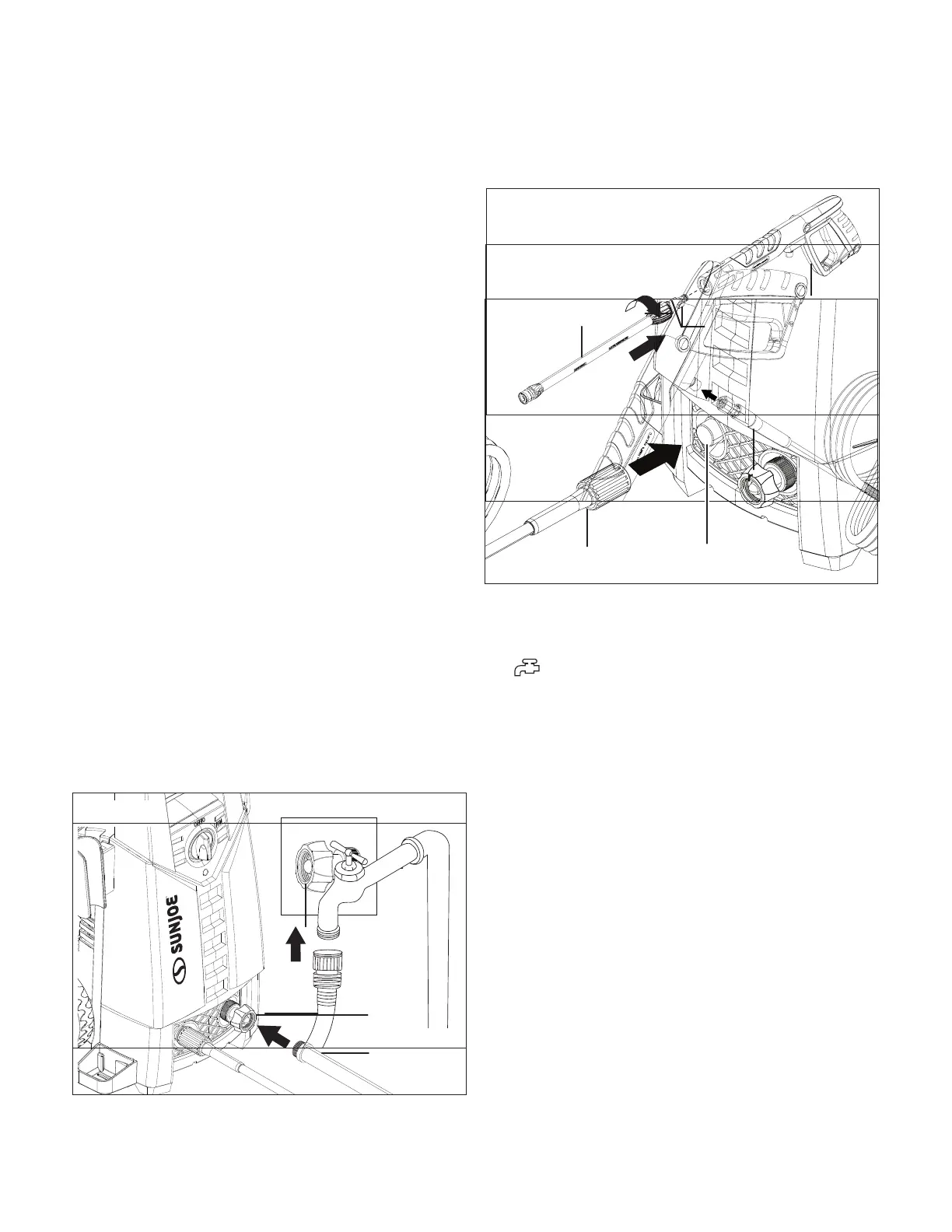

Fig. 6
Spray wand wings
Fig. 7
High pressure hose
Trigger gun
Fig. 8
Water outletHigh-pressure
hose
R
Fig. 9
Garden hose
This end to
water inlet
Garden hose
(male end)
Water inlet
Fig. 10
Connect to water supply
Garden hose
