sunjoe SPX2598 - Assembly; Final Assembly and Hose Connections

8
4. Slide the trigger gun holder into position (Fig. 4).
5. Slide the spray wand protector into position (Fig. 5).
6. Fit the spray wand into the trigger gun rmly and rotate it
clockwise until the two parts are completely locked
(Fig. 6).
7. Connect the high-pressure hose to the trigger gun. Twist
as indicated to secure the connection (Fig. 7).
8. Connect the other end of high-pressure hose to the water
outlet on the washer and tighten securely (Fig. 8).
mWARNING! Keep hose away from sharp objects.
Bursting hoses may cause injury. Examine hoses regularly and
replace if damaged. Do not attempt to mend a damaged hose.
R

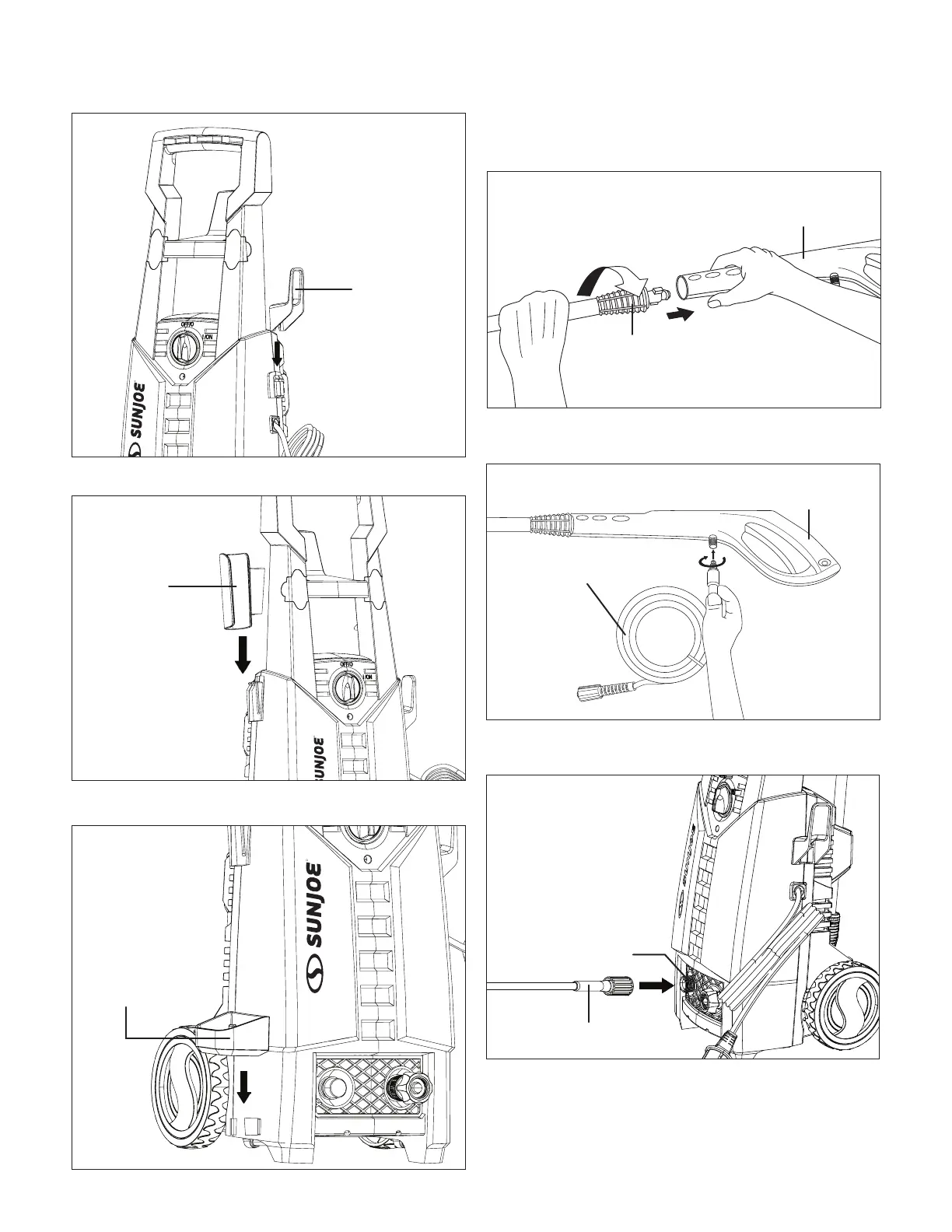

Fig. 3
Cord holder
R
Fig. 4
Trigger gun
holder
R
Fig. 5
Spray wand
protector
Trigger gun
Spray wand
Fig. 6
Fig. 7
High pressure hose
Trigger gun
Fig. 8
High-pressure
water outlet
High-pressure
hose
