Know Your Electric Tiller + Cultivator

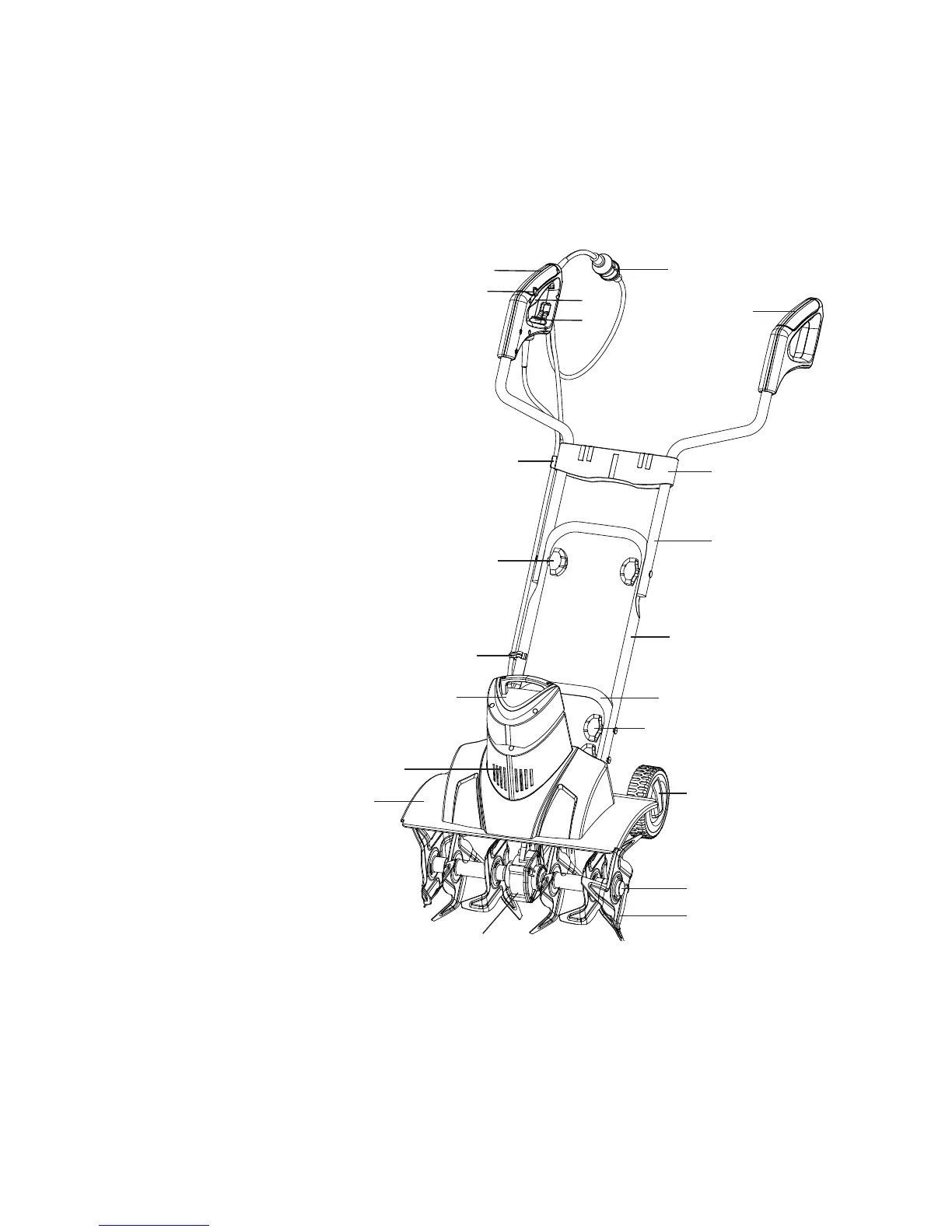

Read the owner’s manual and safety instructions carefully before operating the electric tiller + cultivator. Compare the illustration
below to the electric tiller + cultivator in order to familiarize yourself with the location of the various controls and adjustments.
Save this manual for future reference.
1. Appliance cord
2. Right handle grip
3. Safety lock button
4. Trigger switch
5. Extension cord restraint hook
6. Left handle grip
7. Cable guide
8. Plastic cross plate
9. Upper handle
10. Upper handle knob and bolt (2)
11. Middle handle
12. Cable clip
13. Motor housing
14. Lower handle
15. Lower handle knob and bolt (4)
16. Air vents
17. Guard
18. Wheels
19. Drive shaft
20. Steel tines
21. Gear box
Technical Data
Rated Voltage 120 V ~ 60 Hz
Power 9 A
No Load Speed 400 rpm
Handle Foldable
Rotor 6 steel tilling blades
Cultivating Width (Max) 18 in. (45.7 cm)
Cultivating Depth (Max) 7 in. (18 cm)
Weight 28.7 lbs (13 kg)
6
1
3
4
5
2
19
20
21
7
10
12
13
16
17
18
8
9
11
14
15
