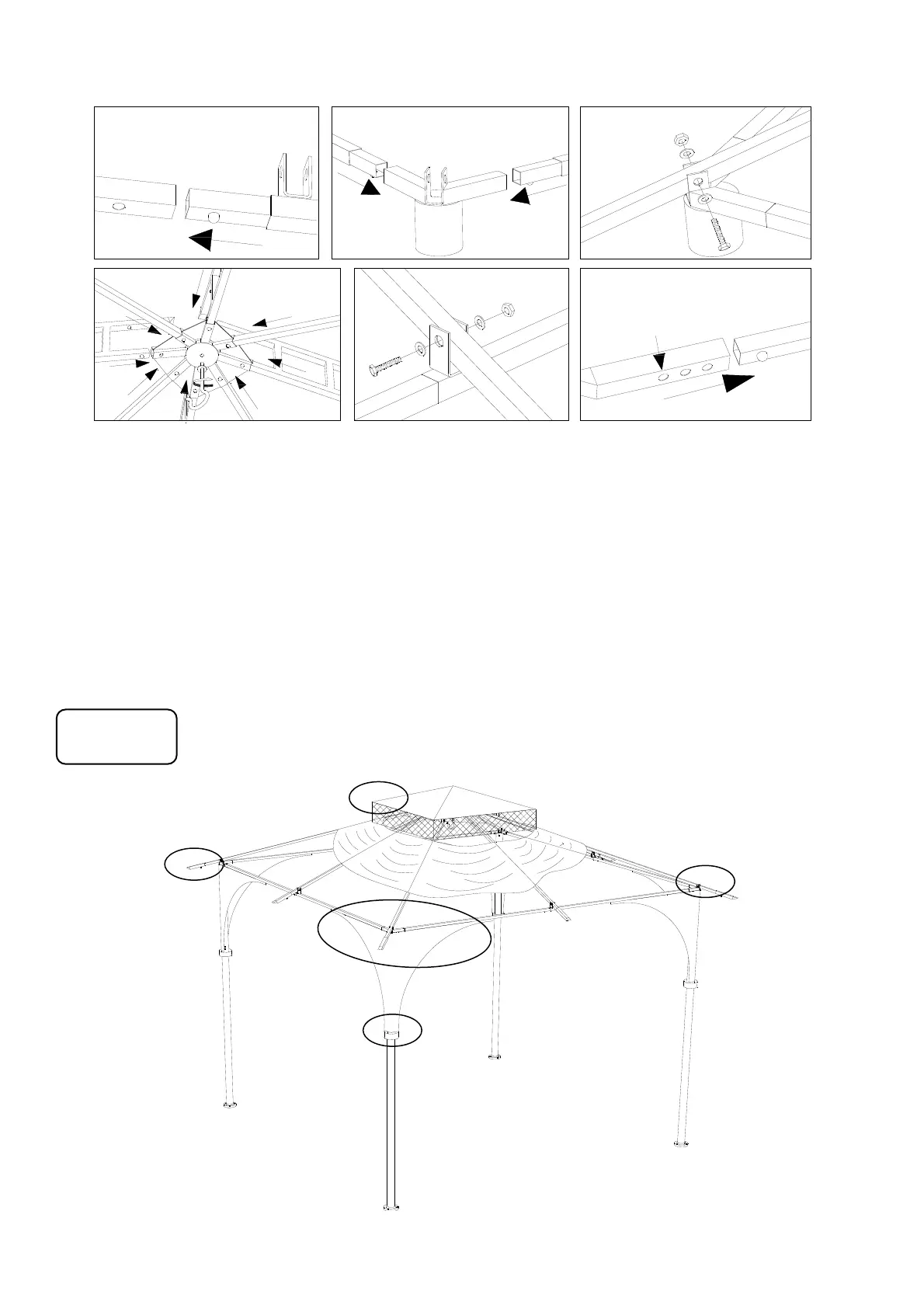

Fig.1: Insert one side of horizontal beam 1(E1) into horiz
ontal beam 2 (F1) (Fig.1) Repeat on all sides.
Fig.2: Insert another side of horizontal beam 1(E1) and horizontal beam 2 (F1) into the hole of connector (G1)
(Fig.2). Repeat on all sides.
Fig.3: Connect short angle beam (B1 ) with connector (G1) and tighten with bolt (CC), washer (DD), nuts (EE) (Fig.3)
Fig.4: Insert hook (K1) into top connect (A1) first, then insert long angle beam (B1) and one side of girder (D1) into
Top connector (A1). Repeat on all sides. (Fig.4)
Fig.5: Insert one side of long angle beam (D1) into short angle beam (E1). (Fig.5)
Fig.6: Insert one side of long angle beam (B1) and girder (D1) into Short angle beam (O) (Fig.6) repeat on all sides.
Ste
p
2
Fig.1 Fig.2 Fig.3
Fig.4 Fig.5 Fig.6
