Sunjoy A101011100 - Step 2: Canopy and Support Structure

5 / 7
∙
Country of Origin: China

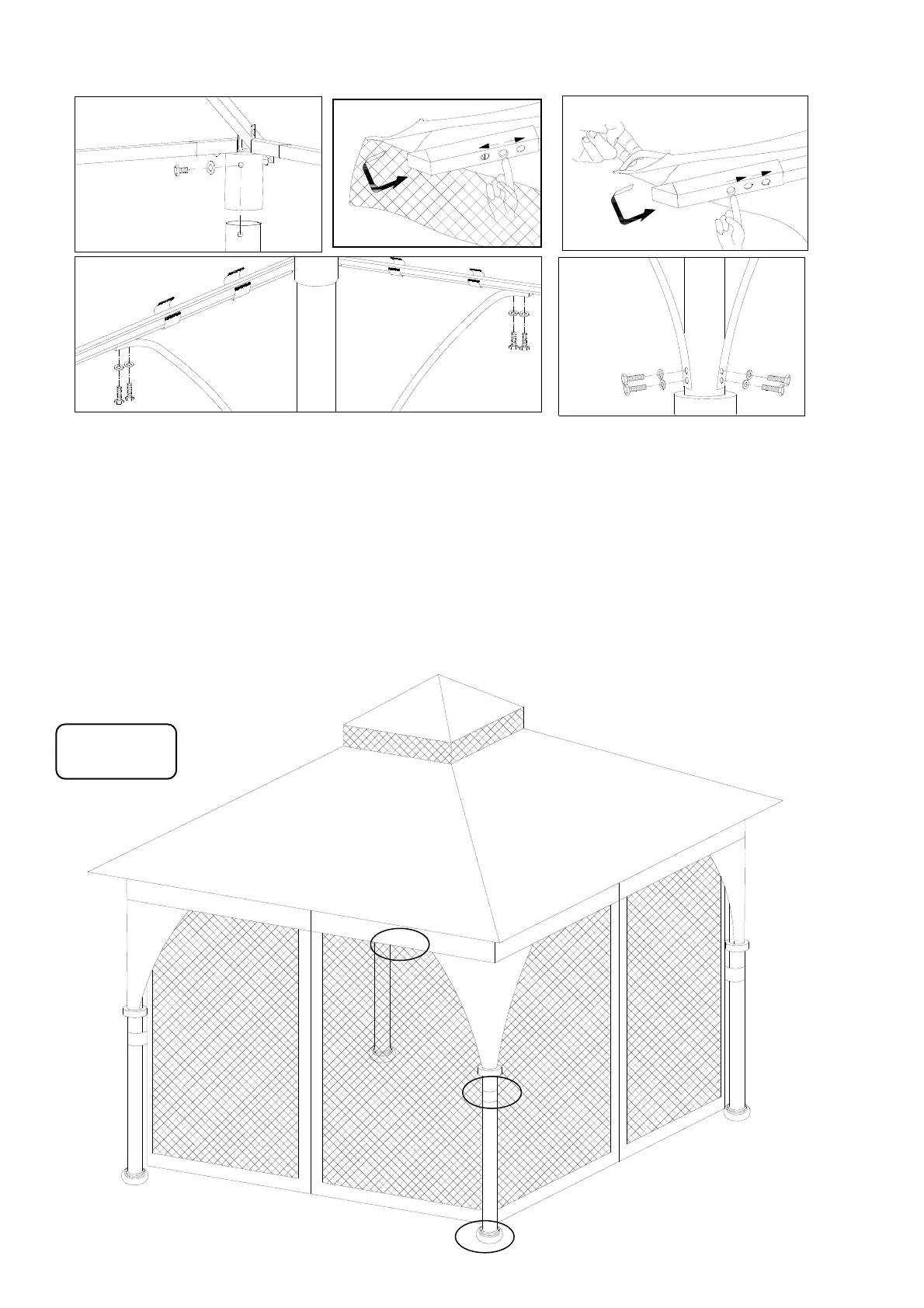

Fig.7: L
ift assembled roof (G1) up, fix connector (G1) and post (H2) with bolt (AA), flat washer (DD)
Repeat for all posts. (Fig8).
Fig.8: Finish covering small canopy (L1), install big canopy (M1) on the structure but do not fully cover (Fig.8)
Fig.9: Spread big canopy (M1) over the entire structure, and slide into each corner (Fig.9).
Fig.10-1/2: Connect one side of arc connector (J1) with pole (H2), and connect the other side with horizontal beam
1(E1) And horizontal beam 2 (F1), fasten by using bolt (BB) and flat washer (DD),and fasten with Velcro . (Fig.10
-1/2).
Ste
p
3
Fig.7
DD
Fig.8
Fig.9
Fig.10-1
Fig.10-2
AA
H2
G1
O
L1
M1
O
BB
DD
J1
H2
F
E1
DD
BB
J1
H2
BB
DD
DD
BB
Fig.12
N
Fig.11-2
Fig.11-1
H2
