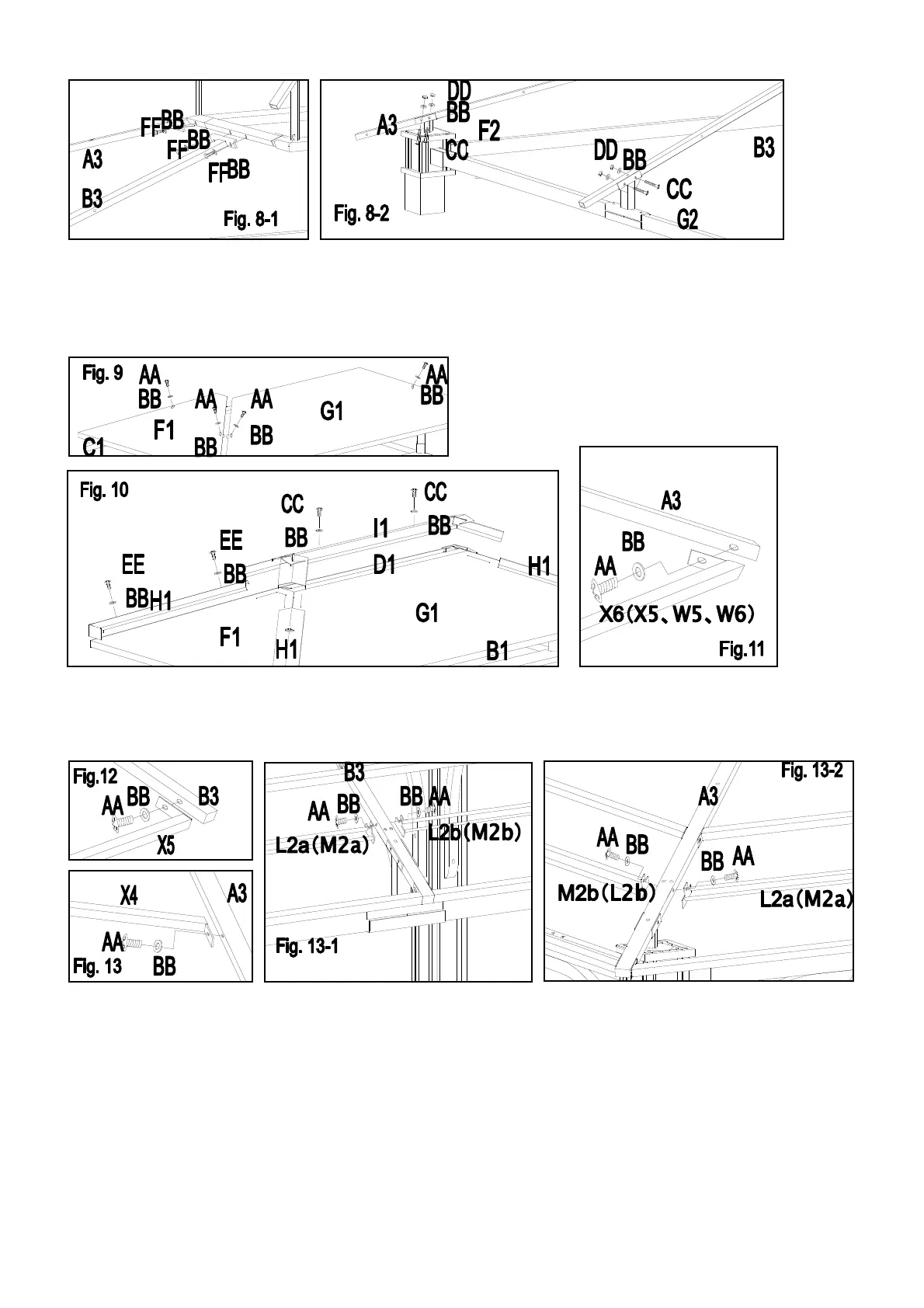

Sunjoy CHATHAM - Detailed Assembly Instructions (Part 2); Top Frame Slanting Bar Attachment (Fig. 8-1, 8-2); Small Top Roof Panel Installation (Fig. 9); Roof Panel Cover and Beam Attachment (Fig. 10-11)

Fig.8-1: Attach Big top slanting bar (A3) and Big top middle beam (B3) to Short big top frame bar (A1) and Long big
top frame bar (B1) by using bolt (FF) and washer (BB).
Fig.8-2: Attach Big top slanting bar (A3) to Slanting bar connector (F2) and Big top middle beam (B3) to Middle
beam connector (G2) by using bolt (CC), washer (BB) and nut (DD).
Fig.12: Connect Big top beam (X5) and Big top middle beam (B3) by using bolt (AA) and washer (BB). (Use the
same way to assemble X1, X2, X3, X4, X6, W1, W2, W3, W4, W5 and W6 respectively.)
Fig.13: Attach Big top beam X4 and Big top slanting bar (A3) by using bolt (AA) and washer (BB). (Use the same
way to assemble X1,X2, X3, X4,W1, W2, W3 and W4 respectively.)
Fig.13-1: Attach one end of Long netting bar L2a (L2b), Short netting bar M2a (M2b) to Big top middle beam (B3) by
using bolt (AA) and washer (BB).
Fig.13-2: Attach another end of Long netting bar L2a (L2b), Short netting bar M2a (M2b) to Big top slanting bar (A3)
by using bolt (AA) and washer (BB).
Fig.9: Attach Small top roof panel 1 (F1) and Small top
roof panel 2 (G1) to Small top slanting bar (C1) by using
bolt (AA) and washer (BB).
Fig.10: Attach Small top roof panel cover (H1) to Small top slanting bar (C1) by using bolt (EE) and washer (BB),
then attach Small top roof cover (I1) to Small top connector (D1) by using bolt (CC) and washer (BB).
Fig.11: Attach Big top beam X6 (X5, W5, W6) to Big top slanting bar (A3) by using bolt (AA) and washer (BB).
