3.Device Installation

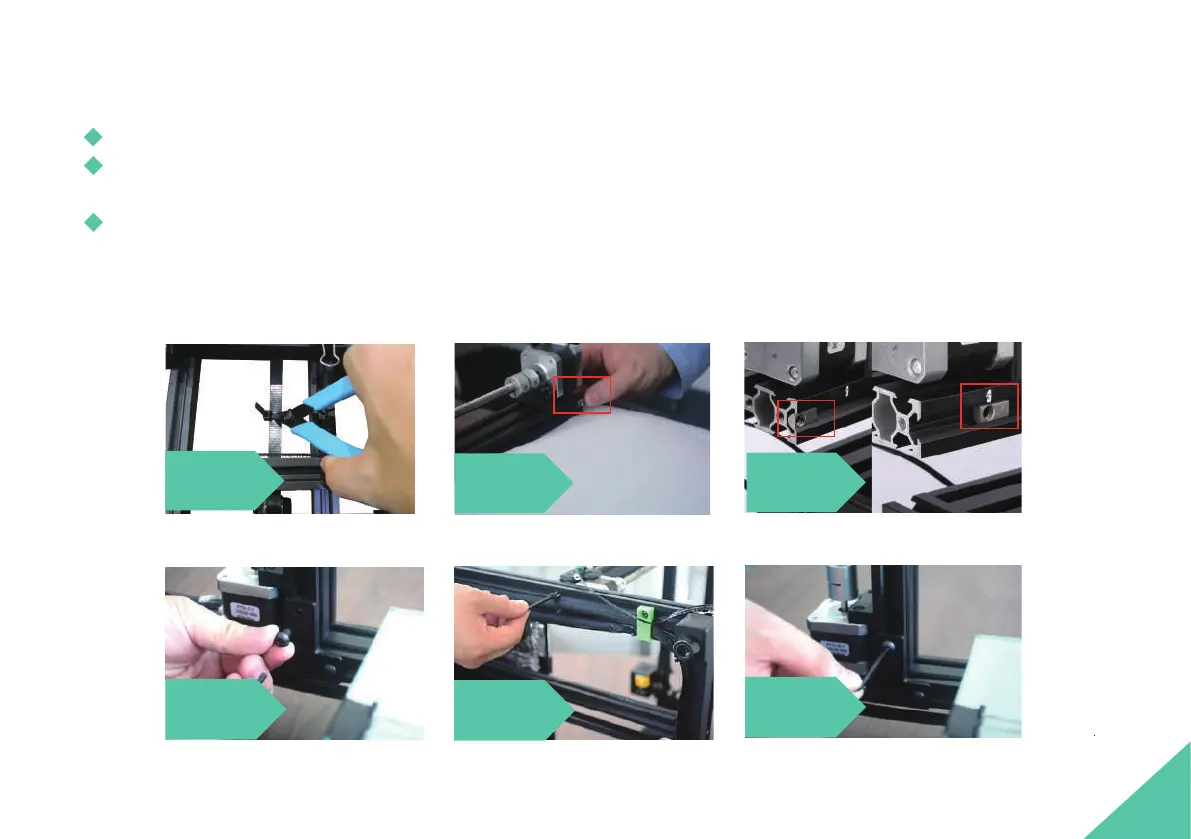

Step1：Unwrap the machine and cut off the cable tie.（Pic 1）;
Step2：Put the square-shaped nuts into the slots of each side of gantry frame(Pic 2&Pic 3). Put up gantry frame and
make M5*8 screw through T-shaped fixing block with the nuts of each side of gantry frame(Pic 4).
Step3: Put down gantry frame like(Pic 5) and install 4 pcs of M5*25 bolts connecting base frame
and gantry frame. Finally screw M5*8 bolts tightly(Pic 6).
Pic1
Pic2
Pic3
Pic4
Pic5
Pic6
Pic2
