◼ Check the junction box, connectors, and cables for any damage. Double check
if the junction box cover is fixed securely.
◼ Do not paint or apply glue or label on the surface of the modules.
◼ Place the junction box on the maintenance walkway side for easy string wiring
and maintenance inspection.
◼ The minimum distance between the modules is 5mm, and the distance between
each array is 500-800mm, which is used as a construction maintenance
walkway. (This spacing is for reference only)
6.3 Mechanical Installation Plan
Special Accessories

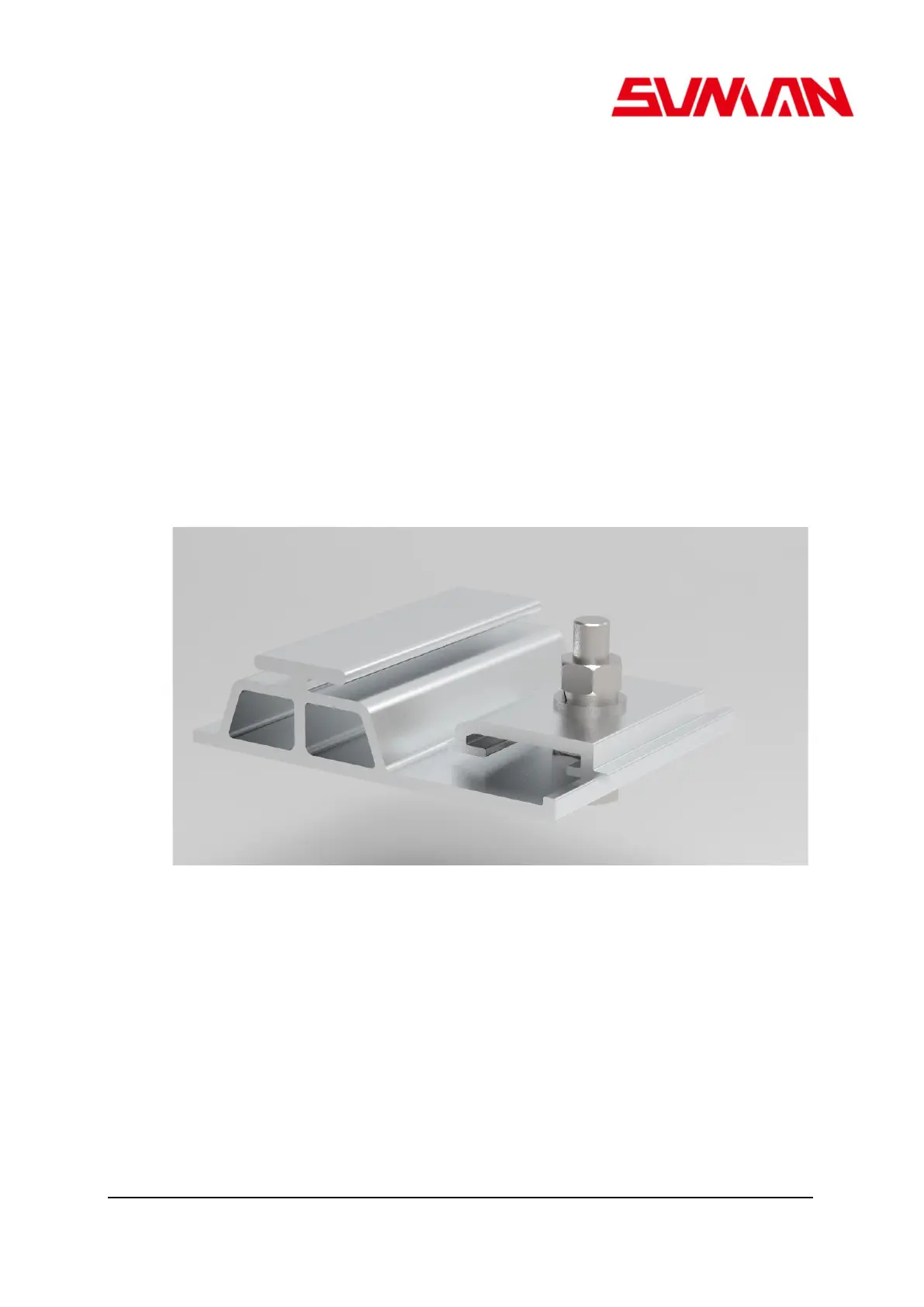

◼ DF Clamp
Installation Steps
6.3.1 Install DF Clamp
◼ Place the DF module in the installation area.
◼ Lift one corner of the module and slide the prefabricated unit into the DF
module support from both long sides. Avoid excessive twisting of the module
when lifting.
